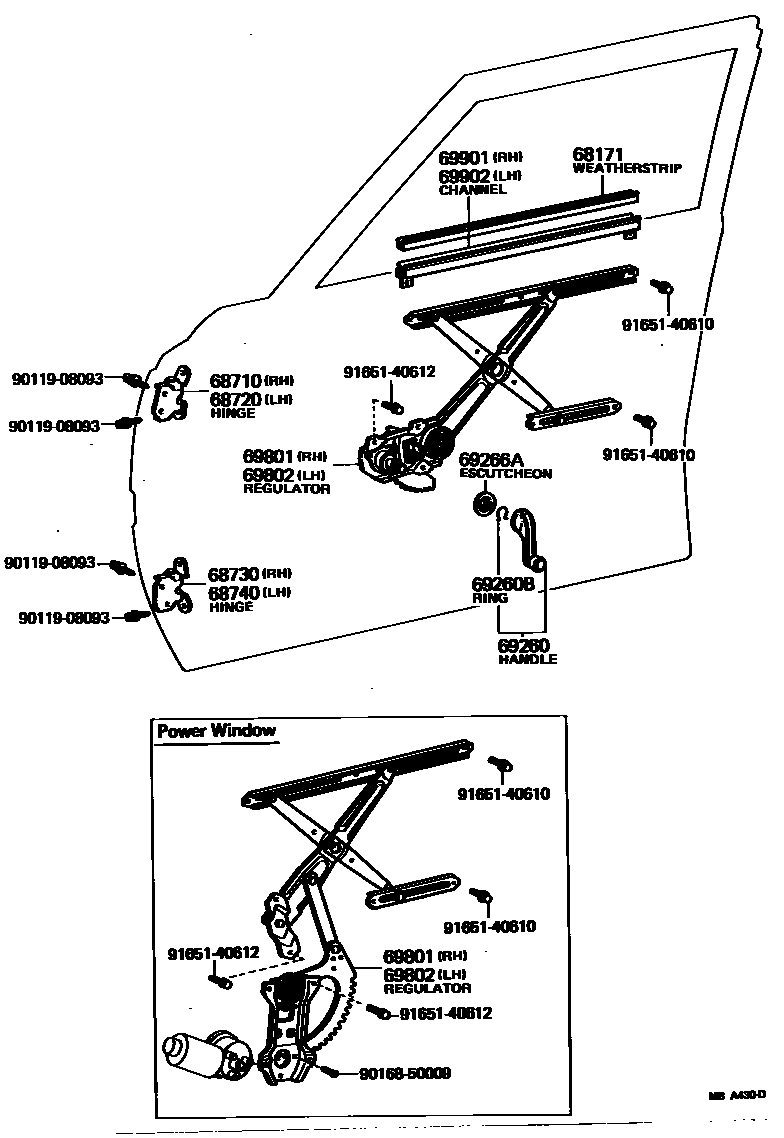

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1 0003 1 0004 1 0005 1

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main69971-22010iGS11#,LS11#,MS11#,RS110..SED,V,WG197909-198307

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-30070iGS11#,LS11#,MS11#,RS110197909-198307

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-30010iGS11#,LS11#,MS11#,RS110197909-198307

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-20070iGS11#,LS11#,MS11#,RS110197909-198307

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-20070iGS11#,LS11#,MS11#,RS110197909-198307

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-22020-02iMS117;LS11#,MS110,RS110..BTP,CTE,DLX,STD,TAX197909-198108

DARK WINE,RED/MAROON,TRIM3#

main69260-22020-03iGS117,MS117;GS110,LS110,117,MS110,RS110..BTP,CTE,DLX,STD,TAX198108-198307

GRAY,GRAY,TRIM1#

main69260-22020-04iMS117;LS11#,MS110,RS110..BTP,CTE,DLX,STD,TAX197909-198307

BLUE,BLUE,TRIM8#

main69260-22020-15iMS117;LS11#,MS110,RS110..BTP,CTE,DLX,STD,TAX197909-198108

GREIGE,BEIGE,TRIM4#

main69260-22020-25iGS117,MS117;GS110,LS110,117,MS110,RS110..BTP,CTE,DLX,STD,TAX198108-198307

BEIGE,BEIGE,TRIM4#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iGS117,MS117;GS110,LS110,117,MS110,RS110..BTP,CTE,DLX,STD,TAX197909-198307

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69272-30010iGS117,MS117;GS110,LS110,117,MS110,RS110..BTP,CTE,DLX,STD,TAX197909-198307

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-30130iMS110..3FC..DLX198011-198011

25TH ANNIVERSARY

main69801-30130iGS110,LS110,111,MS110,112..(SED,WG)..(ROY,SAL,SDX)197909-198307

main69801-30140iGS110,LS110,111,MS110,112..HT..(ROY,SAL,SPE)197909-198307

main69810-30240iGS117,MS117;GS110,LS110,117,MS110,RS110..(SED,V,WG)..(BTP,DLX,STD,TAX)197909-198307

main69810-30270iGS110,LS110,MS110..4DH..(CTE,DLX)197909-198307

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-30130iMS110..3FC..DLX198011-198011

25TH ANNIVERSARY

main69802-30130iGS110,LS110,111,MS110,112..(SED,WG)..(ROY,SAL,SDX)197909-198307

main69802-30140iGS110,LS110,111,MS110,112..HT..(ROY,SAL,SPE)197909-198307

main69820-30170iGS117,MS117;GS110,LS110,117,MS110,RS110..(SED,V,WG)..(BTP,DLX,STD,TAX)197909-198307

main69820-30190iGS110,LS110,MS110..4DH..(CTE,DLX)197909-198307

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-22040iGS11#,LS11#,MS11#,RS110..SED,V,WG197909-198307

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-22040iGS11#,LS11#,MS11#,RS110..SED,V,WG197909-198307

9011908093

main90119-08093

9016850009

main90168-50009

9165140610

main91651-40610

9165140612

main91651-40612

16 parts on this diagram · 5 diagrams in section
