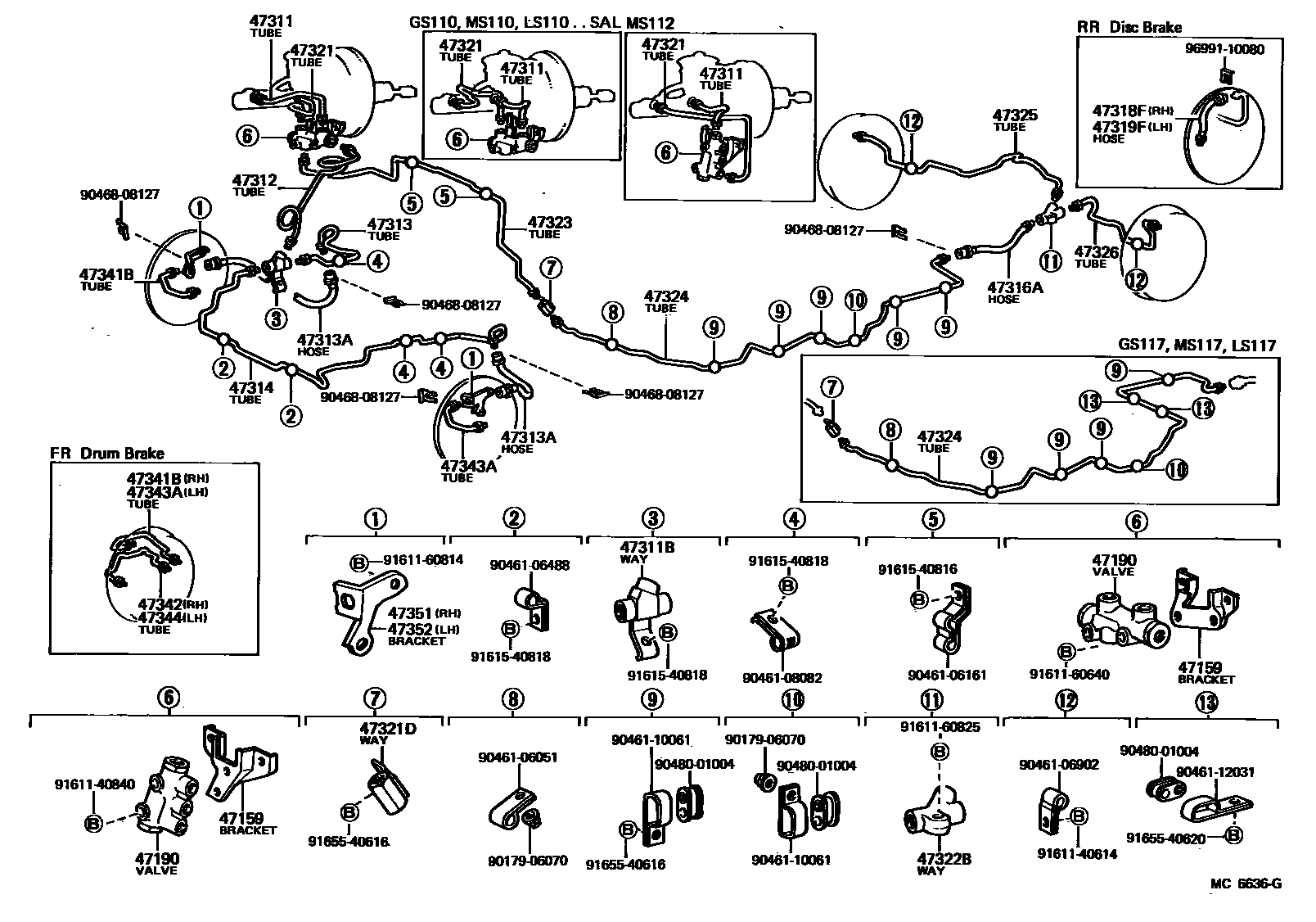

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0006 1

47159BRACKET, PROPORTIONING VALVE

main47159-30100iMS112197909-198307

main47159-30110iGS11#,LS110,117,MS110,117,RS110..CBR,DSL,EFI,LPG197909-198307

main47159-30120iMS110..TBO198010-198307

main47159-30140iLS111198208-198307

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-14010iLS110,MS110,RS110..STD,TAX197909-198307

40KG/CM2

main47190-14020iGS11#,LS111,117,MS117..CTE,DLX,SDX,SPE,STD;LS110,MS110,RS110..(BTP,CTE,DLX,SDX,SPE)..(CBR,DSL,EFI,LPG)197909-198307

30KG/CM2

main47190-30080iMS112197909-198307

25KG/CM2

main47190-30090iMS110..SPE..TBO;GS110,LS110,111,MS110..SAL197909-198307

25KG/CM2

47311TUBE, FRONT BRAKE, NO.1

main47311-30300iMS112197909-198307

main47311-30310iMS110..SAL..EFI197909-198307

main47311-30320iGS11#,LS110,117,MS110,117,RS110..(BTP,CTE,DLX,SDX,SPE,STD,TAX)..(CBR,DSL,EFI,LPG)197909-198307

main47311-30350iMS110..TBO198010-198307

main47311-30370iLS111..SDX,SPE198208-198307

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main47383-30010iMS110..TBO198010-198307

main90413-10014iGS11#,LS11#,MS11#,RS110..CBR,DSL,EFI,LPG,TD,TDE,TWC197909-198307

47312TUBE, FRONT BRAKE, NO.2

main47312-30060iMS112197909-198307

main47312-30090iLS110,117,MS110,117,RS110..CBR,DSL,EFI,LPG197909-198307

main47312-30100iMS110..TBO198010-198307

main47312-30110iGS11#198108-198307

main47312-30120iLS111198208-198307

47313TUBE, FRONT BRAKE, NO.3

main47313-30090iGS11#,LS11#,MS11#,RS110..CBR,DSL,EFI,LPG,TD,TDE,TWC197909-198307

main47313-30130iMS110..TBO198010-198307

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02360iGS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE197909-198307

FR DISC BRAKE

main90947-02361iLS110,MS110,RS110..STD,TAX197909-198307

FR DRUM BRAKE

47314TUBE, FRONT BRAKE, NO.4

main47314-30130iGS11#,LS11#,MS11#,RS110..CBR,DSL,EFI,LPG,TD,TDE,TWC197909-198307

main47314-30140iMS110..TBO198010-198307

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-32855iGS110,LS110,111,MS110,112,RS110197909-198307

main96940-33555iGS117,LS117,MS117197909-198307

47318FHOSE, FLEXIBLE(FOR REAR RH)

main96940-32105iMS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL197909-198307

47319FHOSE, FLEXIBLE(FOR REAR LH)

main96940-32105iMS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL197909-198307

47321TUBE, REAR BRAKE, NO.1

main47321-30020iMS112197909-198307

main47321-30030iMS110..SAL..EFI197909-198307

main47321-30040iLS11#,MS110,117,RS110..(BTP,CTE,DLX,SDX,SPE,STD,TAX)..(CBR,DSL,EFI,LPG)197909-198307

main47321-30070iMS110..TBO198010-198307

main47321-30090iLS111..SDX,SPE198208-198307

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10041iGS11#,LS11#,MS11#,RS110197909-198307

47322TUBE, REAR BRAKE, NO.2

main47315-30200iMS110..SAL..EFI197909-198108

W/ESC

main47315-30210iMS112197909-198307

W/ESC

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10147iGS11#,LS11#,MS11#,RS110197909-198307

47323TUBE, REAR BRAKE, NO.3

main47315-30160iLS11#,MS110,117,RS110..CBR,DSL,EFI,LPG197909-198108

main47315-30170iMS112197909-198108

main47315-30220iMS110..TBO198010-198307

main47315-30230iGS11#,LS110,117,MS110,117,RS110..CBR,DSL,EFI,LPG198108-198307

main47315-30240iMS112198108-198307

main47315-30250iLS111198208-198307

main47316-30120iMS112197909-198108

W/ESC

main47316-30130iMS110..SAL..EFI197909-198108

W/ESC

main47316-30140iMS112198108-198307

W/ESC

47324TUBE, REAR BRAKE, NO.4

main47322-30050iGS110,LS110..WG197909-198307

main47322-30060iGS110,LS110,111,MS110,112,RS110..HT,SED197909-198307

main47322-31010iGS117,LS117,MS117197909-198307

47325TUBE, REAR BRAKE, NO.5

main47323-30050iGS110,LS110,111,MS110,RS110..(BTP,CTE,DLX,SDX,SPE,STD,TAX)..(CBR,DSL,EFI,LPG,TD,TDE)197909-198307

main47323-30060iMS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL197909-198307

main47323-30070iGS117,LS117,MS117197909-198307

47326TUBE, REAR BRAKE, NO.6

main47324-30010iGS110,LS110,111,MS110,RS110..(BTP,CTE,DLX,SDX,SPE,STD,TAX)..(CBR,DSL,EFI,LPG,TD,TDE)197909-198307

main47324-30020iMS110..SPE..TBO;GS110,LS110,111,MS110,112..ROY,SAL197909-198307

main47324-30030iGS117,LS117,MS117197909-198307

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47332-30110iLS110,MS110,RS110..STD,TAX197909-198307

main47341-30010iGS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE197909-198307

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47331-30061iLS110,MS110,RS110..STD,TAX197909-198307

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47334-30110iLS110,MS110,RS110..STD,TAX197909-198307

main47343-30010iGS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE197909-198307

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47331-30061iLS110,MS110,RS110..STD,TAX197909-198307

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-30120iGS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE197909-198307

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-30070iGS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE197909-198307

9017906070

main90179-06070

9046106051

main90461-06051

9046106161

main90461-06161

9046106488

main90461-06488

9046106902

main90461-06902

9046108082

main90461-08082

9046110061

main90461-10061

9046112031

main90461-12031

9046808127

main90468-08127

9048001004

main90480-01004

9161140614

main91611-40614

9161140840

main91611-40840

9161160640

main91611-60640

9161160814

main91611-60814

9161160825

main91611-60825

9161540816

main91615-40816

9161540818

main91615-40818

9165540616

main91655-40616

9165540620

main91655-40620

9699110080

main96991-10080
