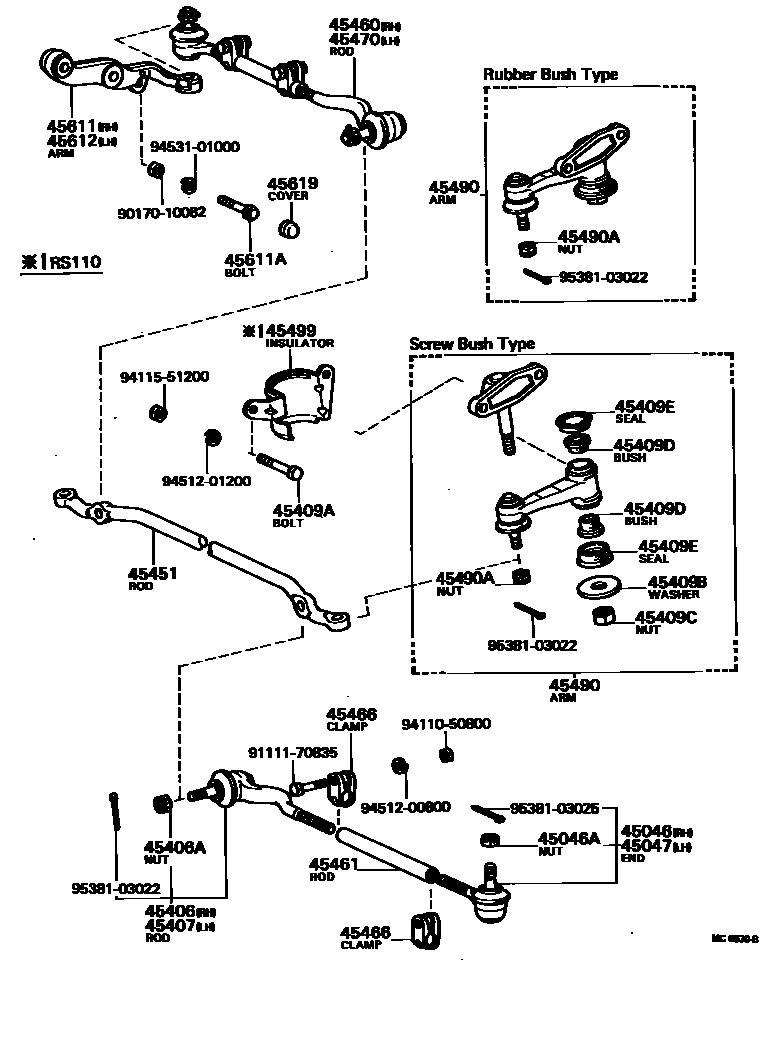

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-39115iGS11#,LS11#,MS11#,RS110197909-198307

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14042×2iGS11#,LS11#,MS11#,RS110197909-198307

45047END SUB-ASSY, TIE ROD, LH

main45046-39115iGS11#,LS11#,MS11#,RS110197909-198307

45406ROD SUB-ASSY, TIE, RH

main45406-39075iGS11#,LS11#,MS11#,RS110197909-198307

45406ANUT, CASTLE(FOR TIE ROD)

main90171-14042×2iGS11#,LS11#,MS11#,RS110197909-198307

45407ROD SUB-ASSY, TIE, LH

main45406-39075iGS11#,LS11#,MS11#,RS110197909-198307

45409ABOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)

main90105-12003iGS11#,LS11#,MS11#,RS110197909-198307

L=91.5

main90105-12004iGS11#,LS11#,MS11#,RS110197909-198307

L=101

45409BWASHER, PLATE(FOR IDLER ARM RUBBER BUSH)

main90201-14519iGS117,MS117;GS110,LS110,117,MS110..BTP,DLX,STD197909-198307

45409CNUT(FOR IDLER ARM SUPPORT)

main94182-11400iGS117,MS117;GS110,LS110,117,MS110..BTP,DLX,STD197909-198307

45409DBUSH(FOR IDLER ARM)

main90385-18068×2iGS117,MS117;GS110,LS110,117,MS110..BTP,DLX,STD197909-198307

45409ESEAL, DUST(FOR IDLER ARM SUPPORT)

main90304-31012×2iGS117,MS117;GS110,LS110,117,MS110..BTP,DLX,STD197909-198307

45451ROD, STEERING RELAY

main45451-30100iGS110,LS110,MS110,RS110..BTP,DLX,STD,TAX197909-198307

main45451-30160iGS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE; RS110..TAX197909-198307

W/POWER STEERING

main45451-31010iGS117,LS117,MS117197909-198307

main45451-31050iGS117,LS117,MS117..DLX,SDX197909-198307

W/POWER STEERING

45460ROD ASSY, TIE, RH

main45460-39125iGS11#,LS11#,MS11#,RS110197909-198307

45461ROD, STEERING TIE

main45465-30010×2iGS11#,LS11#,MS11#,RS110197909-198307

45466CLAMP, TIE ROD END

main45466-30020×4iGS11#,LS11#,MS11#,RS110197909-198307

45470ROD ASSY, TIE, LH

main45460-39125iGS11#,LS11#,MS11#,RS110197909-198307

45490ARM ASSY, STEERING IDLER

main45490-39125iGS117,MS117;GS110,LS110,117,MS110..BTP,DLX,STD197909-198307

main45490-39135iGS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE; RS110..TAX197909-198307

W/POWER STEERING

main45490-39145iLS110..(4H,4HC)..BTP197909-198108

TAXI SPEC

45490ANUT, CASTLE(FOR IDLER ARM)

main90171-12028iGS11#,LS11#,MS11#,RS110197909-198307

45499INSULATOR, IDLER ARM, HEAT

main45499-30010iRS110197909-198307

45611ARM, STEERING KNUCKLE, RH

main45611-30080iGS117,MS117;GS110,LS110,117,MS110,RS110..BTP,DLX,STD,TAX197909-198307

main45611-30090iGS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE; RS110..TAX197909-198307

W/POWER STEERING

45611ABOLT, KNUCKLE STOPPER

main90106-10002×2iGS11#,LS11#,MS11#,RS110197909-198307

45612ARM, STEERING KNUCKLE, LH

main45612-30080iGS117,MS117;GS110,LS110,117,MS110,RS110..BTP,DLX,STD,TAX197909-198307

main45612-30090iGS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE; RS110..TAX197909-198307

W/POWER STEERING

45619COVER, KNUCKLE STOPPER

main45619-14020×2iGS11#,LS11#,MS11#,RS110197909-198307

9017010082

main90170-10082

9111170835

main91111-70835

9411050800

main94110-50800

9411551200

main94115-51200

9451200800

main94512-00800

9451201200

main94512-01200

9453101000

main94531-01000

9538103022

main95381-03022

9538103025

main95381-03025

32 parts on this diagram · 1 diagram in section
