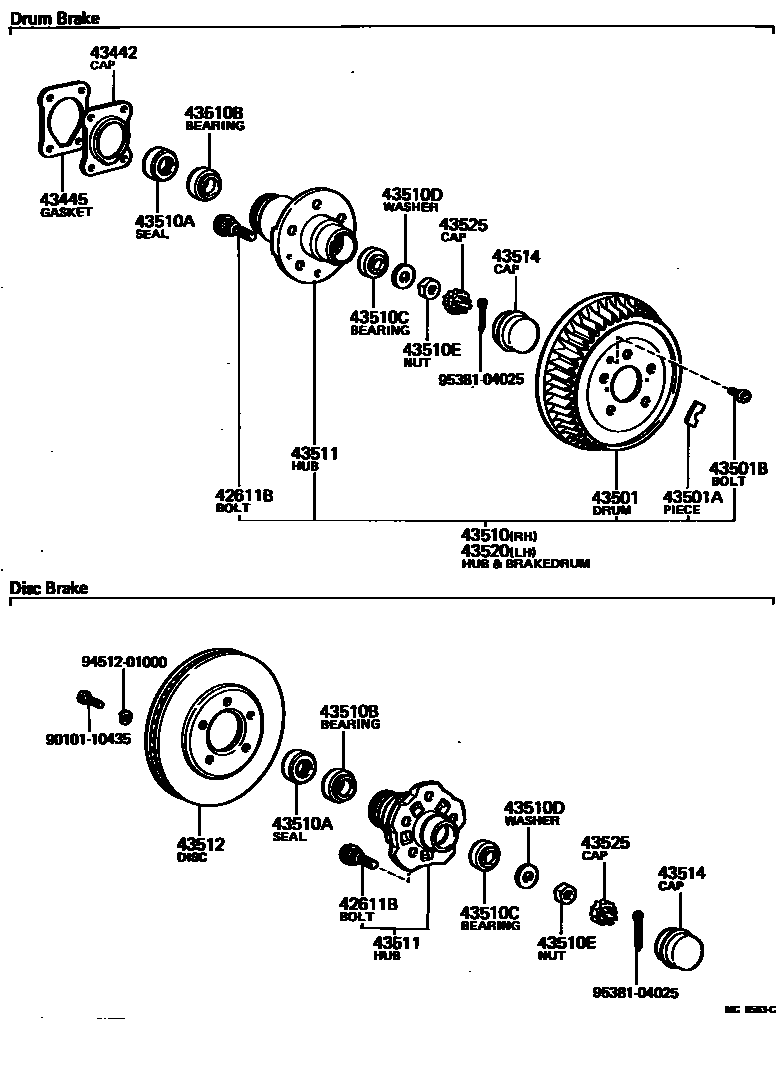

FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02036×10iGS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE197909-198307

*12-1.5PX33-20.5,FR DISC BRAKE

main90942-02037×10iLS110,MS110,RS110..STD,TAX197909-198307

*12-1.5PX40-26,FR DRUM BRAKE

main90942-02048×10iGS11#,LS111,117,MS112;LS110,MS110,RS110..BTP,SAL,SDX,SPE198307-198307

*12-1.5PX33-20.5,FR DISC BRAKE

main90942-02049×10iLS110,MS110,RS110..STD,TAX198307-198307

*12-1.5PX40-26,FR DRUM BRAKE

43442CAP, KNUCKLE GREASE RETAINER, INNER

main43442-30031×2iLS110,MS110,RS110..STD,TAX197909-198307

43445GASKET, KNUCKLE GREASE RETAINER CAP

main43445-30021×2iLS110,MS110,RS110..STD,TAX197909-198307

43501DRUM SUB-ASSY, FRONT BRAKE

main43512-30060×2iLS110,MS110,RS110..STD,TAX197909-198307

43501APIECE, BALANCE (FOR FRONT BRAKE DRUM)

main90937-01100iLS110,MS110,RS110..STD,TAX197909-198307

main90937-01117iLS110,MS110,RS110..STD,TAX197909-198307

main90937-01118iLS110,MS110,RS110..STD,TAX197909-198307

main90937-01119iLS110,MS110,RS110..STD,TAX197909-198307

main90937-01146iLS110,MS110,RS110..STD,TAX197909-198307

main90937-01178iLS110,MS110,RS110..STD,TAX197909-198307

main90937-01179iLS110,MS110,RS110..STD,TAX197909-198307

main90937-01180iLS110,MS110,RS110..STD,TAX197909-198307

main90937-01181iLS110,MS110,RS110..STD,TAX197909-198307

main90937-01182iLS110,MS110,RS110..STD,TAX197909-198307

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10007×2iLS110,MS110,RS110..STD,TAX197909-198307

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-30120iLS110,MS110,RS110..STD,TAX197909-198307

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48122×2iGS11#,LS11#,MS11#,RS110197909-198307

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-34083×2iGS11#,LS11#,MS11#,RS110197909-198307

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-21082×2iGS11#,LS11#,MS11#,RS110197909-198307

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20005×2iGS11#,LS11#,MS11#,RS110197909-198307

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185×2iGS11#,LS11#,MS11#,RS110197909-198307

43511HUB, FRONT AXLE

main43502-30010×2iLS110,MS110,RS110..STD,TAX197909-198307

main43511-30904×2iGS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE197909-198307

43512DISC, FRONT

main43512-30090×2iLS117,MS117;LS110,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE197909-198103

main43512-30091×2iGS11#,LS111,117,MS112,117;LS110,MS110,RS110..BTP,CTE,DLX,SAL,SDX,SPE198103-198307

43514CAP, FRONT HUB GREASE

main43514-22020×2iGS11#,LS11#,MS11#,RS110197909-198307

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-30120iLS110,MS110,RS110..STD,TAX197909-198307

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010×2iGS11#,LS11#,MS11#,RS110197909-198307

9010110435

main90101-10435

9451201000

main94512-01000

9538104025

main95381-04025

20 parts on this diagram · 1 diagram in section
