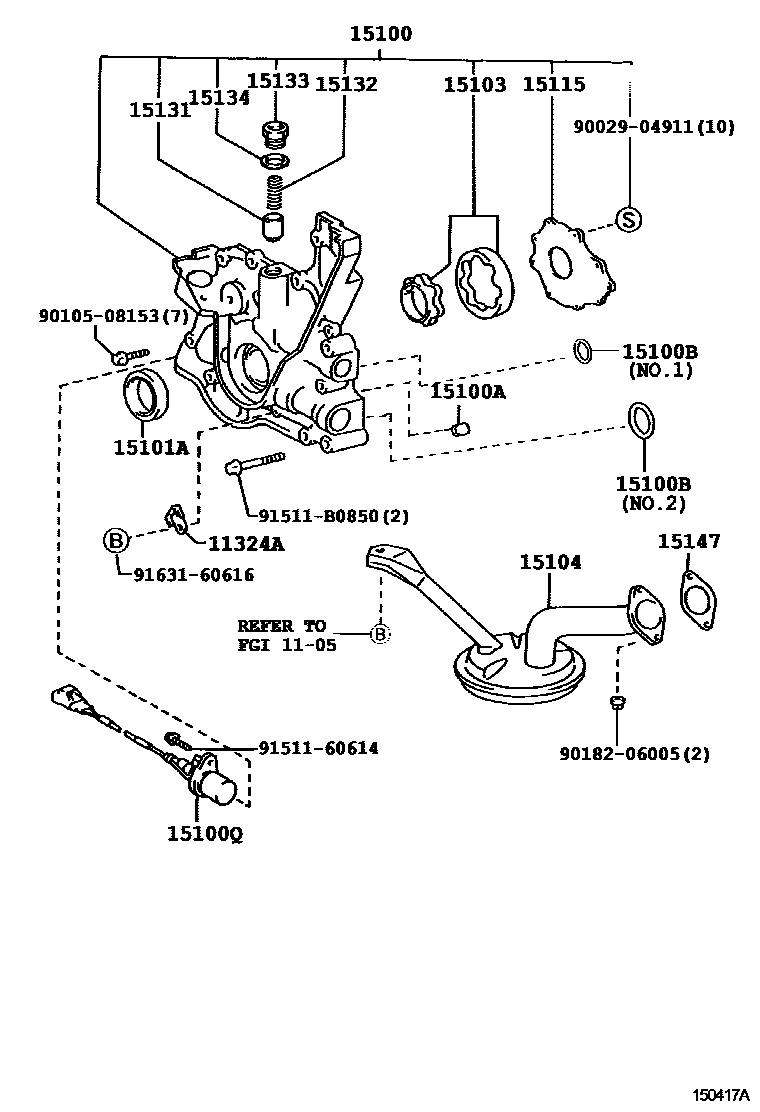

ENGINE OIL PUMP

11324APLATE, TIMING BELT

main11324-46030i2JZGE..JCG17200008

15100PUMP ASSY, OIL

main15100-46090i2JZGE..JCG17200008-200105

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021×2i2JZGE..JCG17200008

15100BRING, O(FOR OIL PUMP)

main96721-24022i2JZGE..JCG17200008

main96721-24031i2JZGE..JCG17200008

15100QSENSOR, CRANK POSITION

main90919-05023i2JZGE..JCG17200008

15101ASEAL(FOR CRANKSHAFT)

main90311-46001i2JZGE..JCG17200008

15103GEAR SET, OIL PUMP

main15103-46090i2JZGE..JCG17200008

15104STRAINER SUB-ASSY, OIL

main15104-46070i2JZGE..JCG17200008

15115COVER, OIL PUMP

main15115-46090i2JZGE..JCG17200008

15131VALVE, OIL PUMP RELIEF

main15131-46060i2JZGE..JCG17200008

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46060i2JZGE..JCG17200008

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i2JZGE..JCG17200008

15134GASKET, OIL PUMP RELIEF VALVE

main15134-67020i2JZGE..JCG17200008

15147GASKET, OIL STRAINER

main15147-46010i2JZGE..JCG17200008

9002904911

main90029-04911

9010508153

main90105-08153

9018206005

main90182-06005

9151160614

main91511-60614

91511B0850

main91511-B0850

9163160616

main91631-60616

20 parts on this diagram · 1 diagram in section
