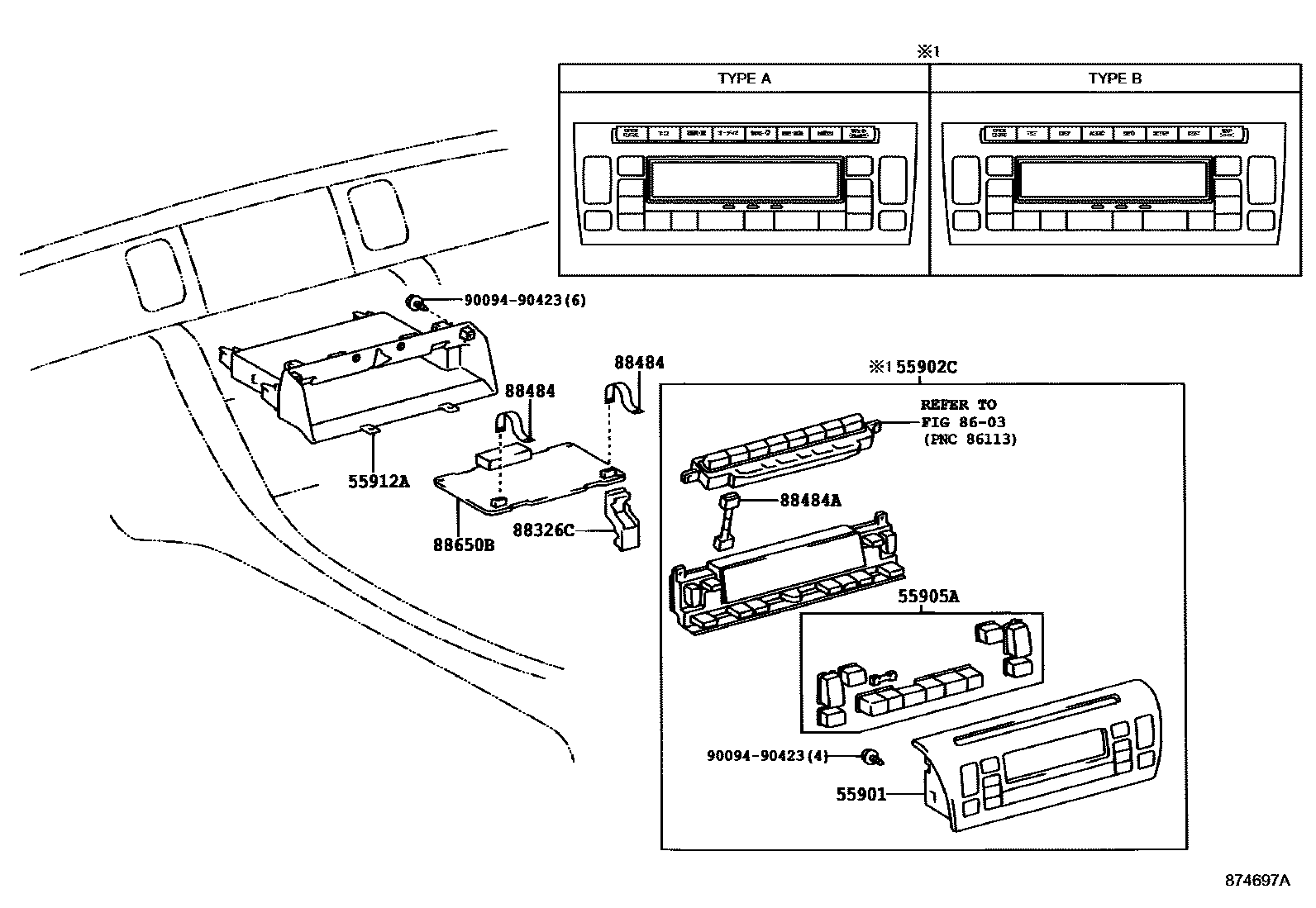

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1����-� ���� 0002 1�� ���� 0003 1���

55901BASE SUB-ASSY, HEATER CONTROL

main55901-24010iUZZ40200104-200508

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-24040iUZZ40..5FC200104-200308

main55902-24041iUZZ40200308-200508

main55902-24090iUZZ40200808-201007

main55902-24120iUZZ40200808-201007

55905AKNOB, HEATER CONTROL

main55905-24060iUZZ40200104-200508

55912AHOUSING, HEATER CONTROL

main55912-24060iUZZ40200104-200508

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

88326CPLATE, COVER

main88326-24030iUZZ40200104-200508

88484WIRE, COOLER, NO.1

main88484-24030×2iUZZ40200104-200508

88484AWIRE, COOLER, NO.1

main88484-24020iUZZ40200104-200508

88650BAMPLIFIER ASSY, AIRCONDITIONER

main88650-24360iUZZ40200104-200508

main88650-24380iUZZ40200508-200707

main88650-24400iUZZ40200708-200808

main88650-24410iUZZ40200808

9009490423

main90094-90423
