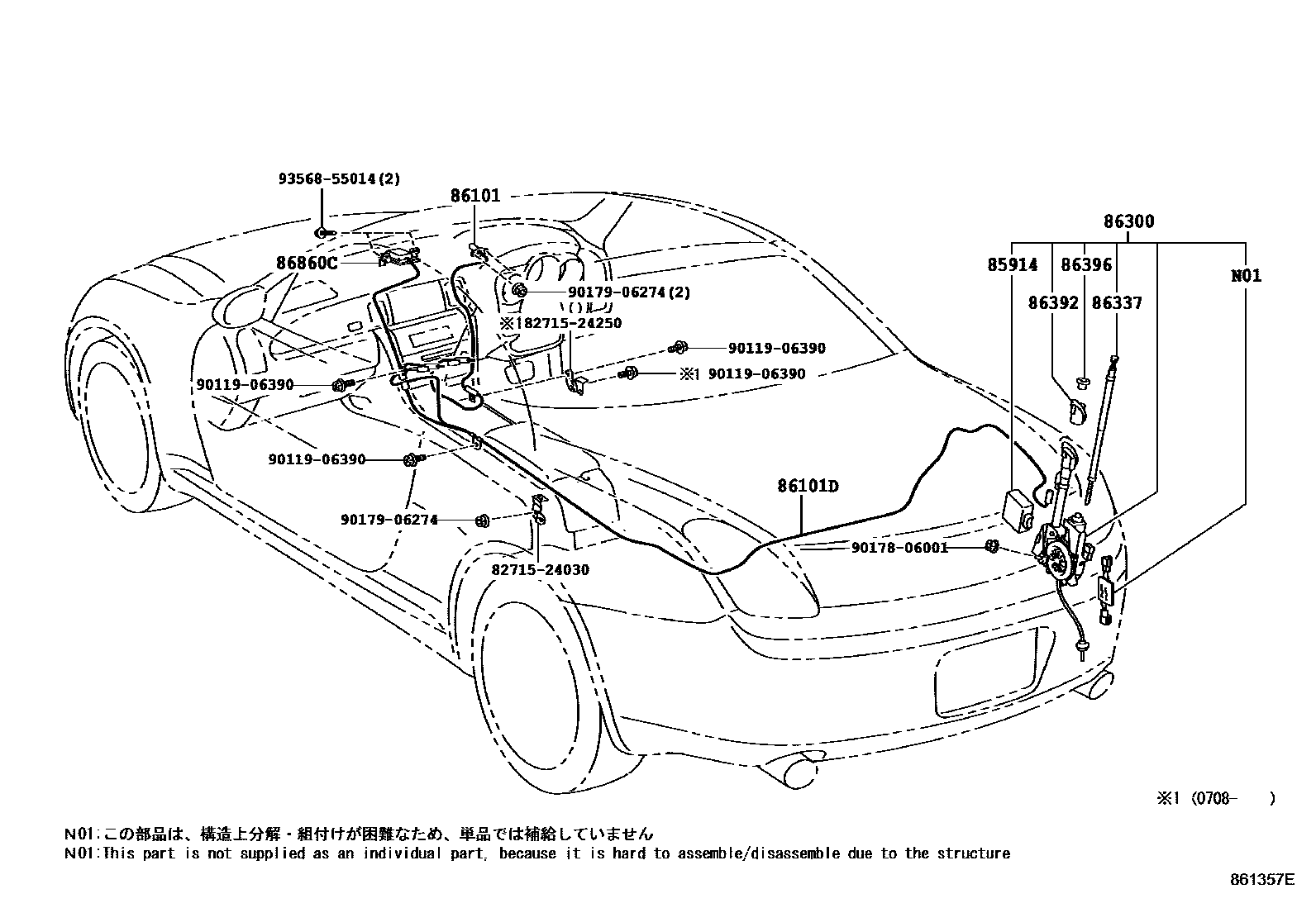

ANTENNA
85914RELAY, MOTOR ANTENNA CONTROL
86101DCORD SUB-ASSY, ANTENNA, NO.3
86300ANTENNA ASSY, W/HOLDER
WHITE PEARL CS.,065
SILVER ME.,1C0
BLACK,202
SUPER RED 5,3P0
BLACKISH RED MC.,3P6
BEIGE M.M.,4Q8
DARK GREEN MC.,6S6
DK.BLUE M.M.,8P4
WHITE PEARL CS.,065
WHITE PEARL CS.,077
SILVER ME.,1C0
COSMO SILVER,1F1
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
BLACK,202 ,3P0
"THE ETERNAL JEWEL" *(J),BLACK,2KK ,2KL
SUPER RED 5,3P0
BLACKISH RED MC.,3P6
RED MC.CS.,3R1
SHELL M.M.,3R4
BEIGE M.M.,4Q8
PREMIUM BEIGE,4S7
PREMIUM BROWN,4T2
BEIGE ME.,4T1
DARK GREEN MC.,6S6
PREMIUM YELLOW GREEN,6U8
DK.BLUE M.M.,8P4
LT.BLUE ME.,8R6
DK.BLUE MC. CC.,8U0
BLUE M.M.,8U4
86337ROD & PIPE, SEALED W/CABLE
86392ORNAMENT, ANTENNA
WHITE PEARL CS.,065
WHITE PEARL CS.,077
SILVER ME.,1C0
COSMO SILVER,1F1
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
BLACK,202
BLACK,212
SUPER RED 5,3P0
BLACKISH RED MC.,3P6
RED MC.CS.,3R1
SHELL M.M.,3R4
BEIGE M.M.,4Q8
PREMIUM BEIGE,4S7
PREMIUM BROWN,4T2
BEIGE ME.,4T1
DARK GREEN MC.,6S6
PREMIUM YELLOW GREEN,6U8
DK.BLUE M.M.,8P4
LT.BLUE ME.,8R6
DK.BLUE MC. CC.,8U0
BLUE M.M.,8U4
86396NUT, ANTENNA
8271524030BRACKET,WIRING HARNESS CLAMP
main82715-24030
8271524250BRACKET,WIRING HARNESS CLAMP
main82715-24250
9011906390
main90119-06390
9017806001
main90178-06001
9017906274
main90179-06274
9356855014
main93568-55014
14 parts on this diagram · 4 diagrams in section
