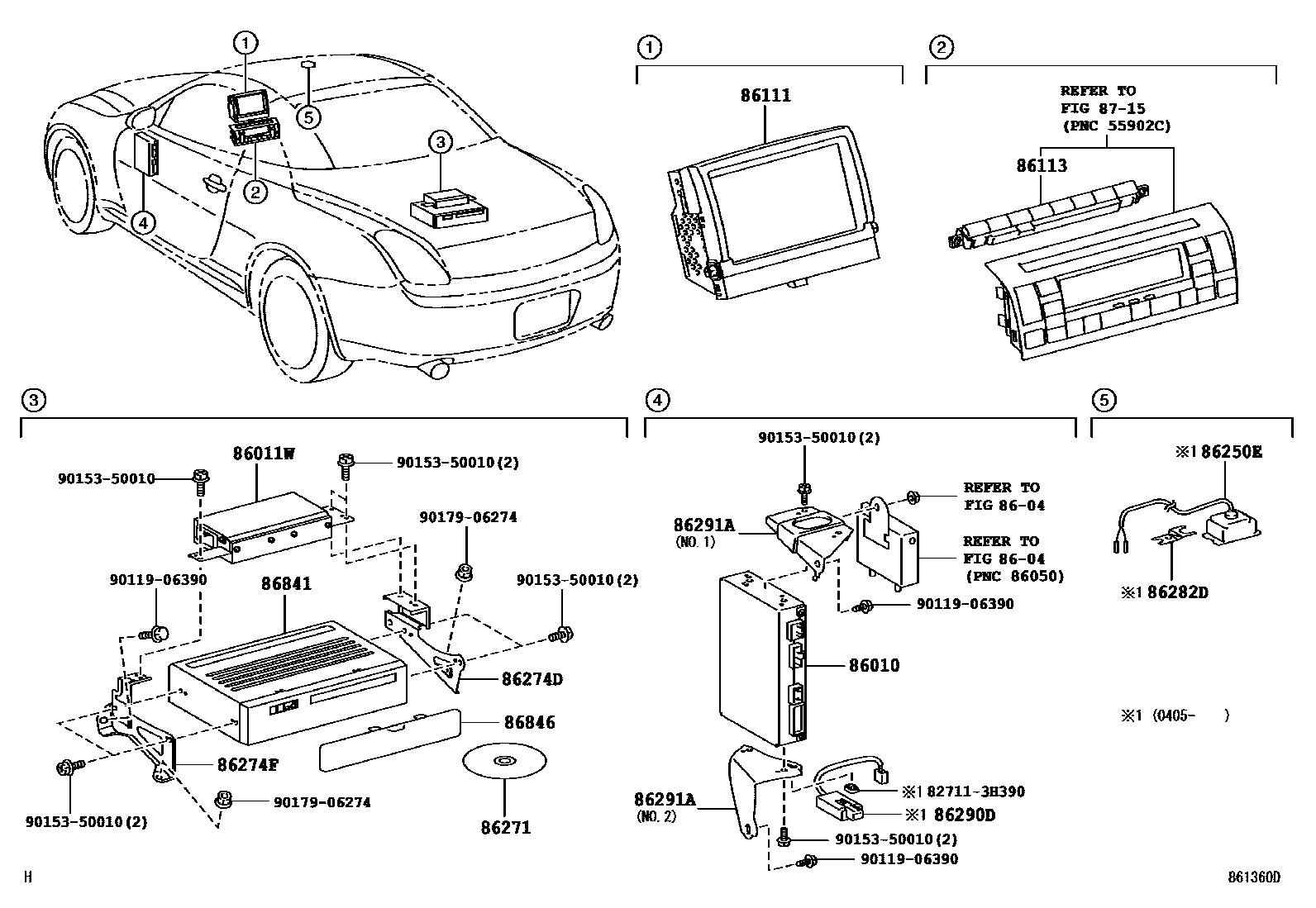

NAVIGATION & FRONT MONITOR DISPLAY
86010TUNER ASSY, TELEVISION
86011WAMPLIFIER, NAVIGATION
8604ANTENNA
86111MULTI-DISPLAY
86113BLOCK, MULTI-DISPLAY JUNCTION
86271DISC, DISC PLAYER
86274DBRACKET, DISC PLAYER
86274FBRACKET, DISC PLAYER, NO.2
86282DBRACKET, MICROPHONE
86841COMPUTER, NAVIGATION
86846PLATE, NAVIGATION COMPUTER
MD.CHARCOAL,TRIM0#,20,21
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
827113H390WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3H390
9011906390
main90119-06390
9015350010
main90153-50010
9017906274
main90179-06274
19 parts on this diagram · 2 diagrams in section
