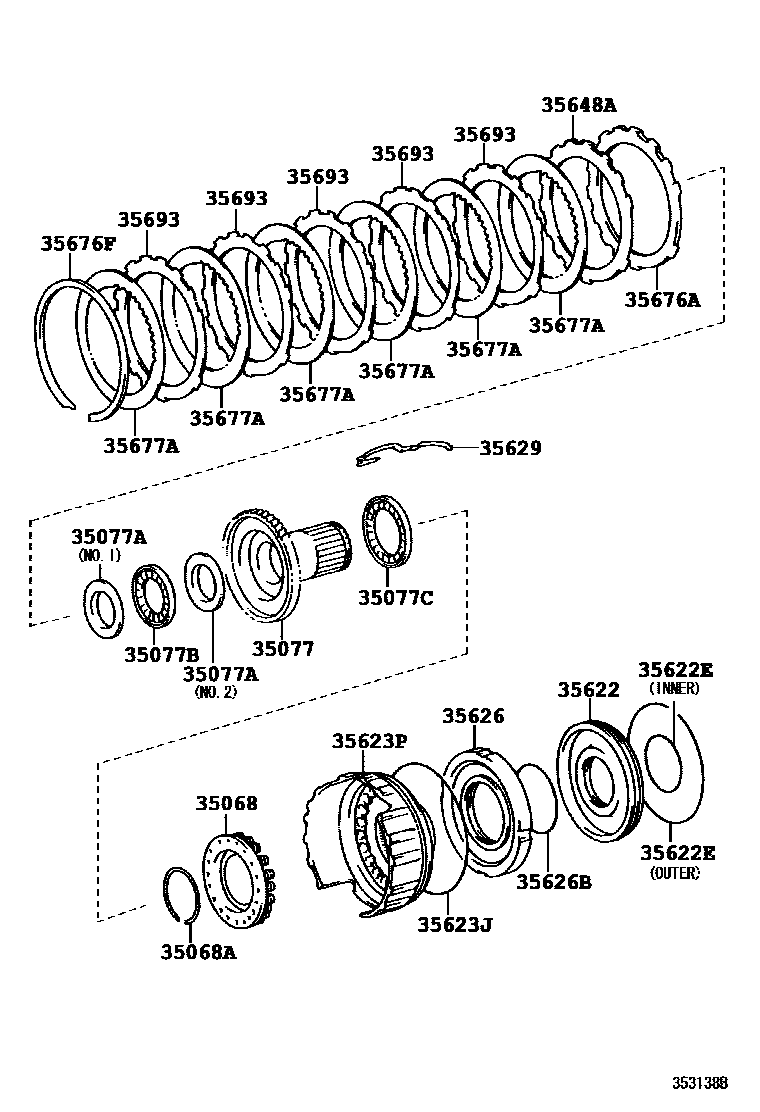

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)
35077FLANGE SUB-ASSY, RR PLANETARY RING GEAR
35077ARACE, THRUST BEARING (FOR PLANETARY RING GEAR FLANGE)
35077BBEARING, THRUST NEEDLE ROLLER, NO.1
35077CBEARING, THRUST NEEDLE ROLLER, NO.2
35622PISTON, BRAKE, NO.2
35622ERING, O (FOR BRAKE PISTON NO.2)
35623JRING, O (FOR 1ST & REVERSE BRAKE)
35623PPISTON, 1ST & REVERSE BRAKE, NO.2
35626BRING (FOR BRAKE REACTION SLEEVE INNER)
35629SPRING (1ST & REVS BRAKE PLATE STOPPER)
35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)
35676FRING, SNAP (FOR TRANSMISSION CASE)
35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)
35693PLATE, BRAKE (FOR 1ST & REVERSE)
18 parts on this diagram · 2 diagrams in section
