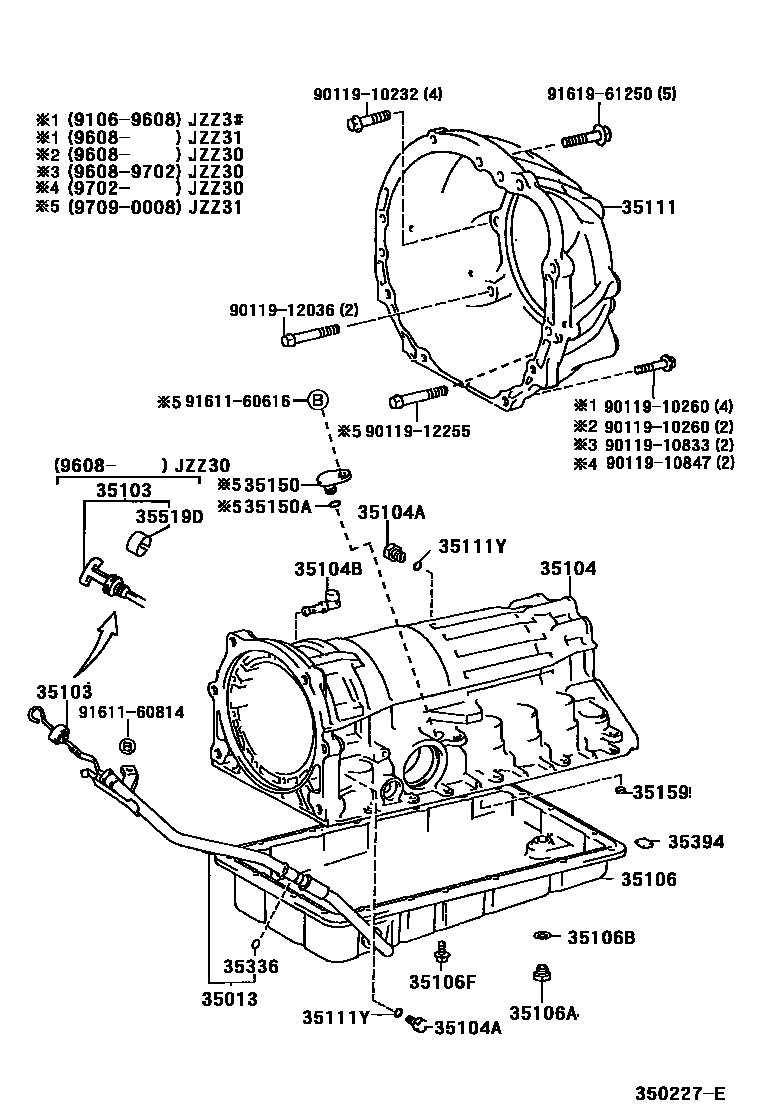

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A340E 0002 1A341E

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-24040iJZZ30..ATM199105-199505

main35013-24050iJZZ31199401-199505

main35013-24060iUZZ3#199105-199709

main35013-24080iJZZ30..ATM199505

main35013-24090iJZZ31199505

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-24030iJZZ30..ATM199105-199505

main35103-24040iJZZ31199401-199505

main35103-24050iUZZ3#199105-199709

main35103-24070iJZZ30..ATM199505-199608

main35103-24080iJZZ31199505-199709

main35103-24090iJZZ30..ATM199608-199705

main35103-24091iJZZ30..ATM199705-199906

main35103-24092iJZZ30..ATM199906

main35103-24100iJZZ31199709-199906

main35103-24101iJZZ31199906

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22070iJZZ3#..ATM200008

main35104-30133iJZZ31199401-199709

main35104-30170iJZZ3#..ATM199709-200008

main35104-50012iJZZ30,UZZ3#..ATM199105-199110

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iJZZ3#,UZZ3#..ATM199105

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03108iJZZ3#,UZZ3#..ATM199105

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-22060iJZZ30..ATM199105-199203

main35106-24010iUZZ3#199105-199709

main35106-24020iJZZ31199411-199709

main35106-30130iJZZ31199709

main35106-30180iJZZ30..ATM199411

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iJZZ3#..ATM199105-199608

main90341-10012iUZZ3#199105-199709

main90341-10017iJZZ30..ATM199608-199705

main90341-10018iJZZ30..ATM199705-199709

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iJZZ3#..ATM199105-199705

main35178-50010iUZZ3#199105-199705

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06513×19iJZZ3#,UZZ3#..ATM199105

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-22081iJZZ30..ATM199709

main35111-30150iJZZ31199709

main35111-50010iUZZ3#199105-199709

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iJZZ3#,UZZ3#..ATM199105

35150PLUG ASSY, TRANSMISSION CASE

main35150-30010iJZZ31199709-200008

35150ARING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)

main90301-09012iJZZ31199709-200008

35159GASKET, BRAKE DRUM

main35159-30010iJZZ3#,UZZ3#..ATM199105

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09011iJZZ30,UZZ3#..ATM199105-199311

main90301-09173iJZZ3#..ATM199311

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×3iJZZ30,UZZ3#..ATM199305-199401

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20020iJZZ30..ATM199608-199705

main35519-20030iJZZ3#..ATM199906

main35519-24020iUZZ3#199105-199709

main35519-30010iJZZ30..ATM199705-199709

9011910232

main90119-10232

9011910260

main90119-10260

9011910833

main90119-10833

9011910847

main90119-10847

9011912036

main90119-12036

9011912255

main90119-12255

9161160616

main91611-60616

9161160814

main91611-60814

9161961250

main91619-61250

26 parts on this diagram · 2 diagrams in section
