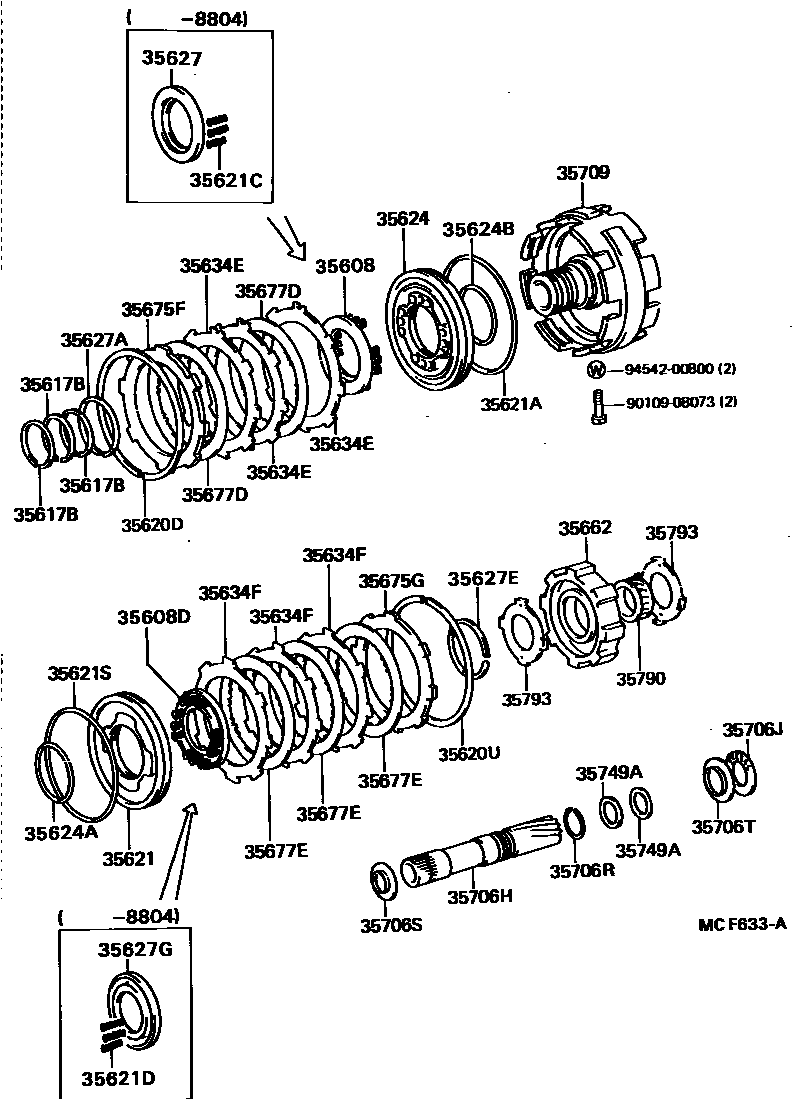

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35608DSPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35617BRING, CLUTCH DRUM OIL SEAL
35620DRING (FOR BRAKE)
35620URING (FOR REAR BRAKE)
35621PISTON, BRAKE, NO.1
35621ARING, O (FOR BRAKE PISTON OUTER)
35621CSPRING (FOR BRAKE PISTON RETURN)
35621DSPRING, COMPRESSION (FOR REAR BRAKE PISTON RETURN)
35621SRING (FOR REAR BRAKE PISTON OUTER)
35624PISTON, 2ND BRAKE
35624ARING, O (FOR 2ND BRAKE PISTON)
35624BRING, O (FOR SECOND BRAKE PISTON)
35627SEAT, BRAKE RETURN SPRING
35627ARING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)
35627ERING, SHAFT SNAP (FOR REAR BRAKE RETURN SPRING SEAT)
35627GSEAT, BRAKE RETURN SPRING (FOR REAR BRAKE)
35634EPLATE, CLUTCH (FOR BRAKE)
35634FPLATE, CLUTCH (FOR REAR BRAKE)
35662HUB, BRAKE
35675FFLANGE, CLUTCH (FOR BRAKE)
35675GFLANGE, BRAKE (FOR REAR BRAKE)
35677DISC, CLUTCH (FOR 2ND BRAKE)
35677DDISC, CLUTCH (FOR REAR BRAKE)
35677EDISC, CLUTCH (FOR REAR BRAKE)
35706HGEAR SUB-ASSY, PLANETARY SUN
35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
35706RRING, SHAFT SNAP (FOR PLANETARY SUN GEAR)
35706SRACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT)
35706TRACE, THRUST BEARING (FOR PLANETARY SUN GEAR REAR)
35709SUPPORT SUB-ASSY, CENTER
35749ARING, SUN GEAR SHAFT OIL SEAL
35790CLUTCH ASSY, 1 WAY
35793RETAINER, 1 WAY CLUTCH
9010908073
main90109-08073
9454200800
main94542-00800
36 parts on this diagram · 2 diagrams in section
