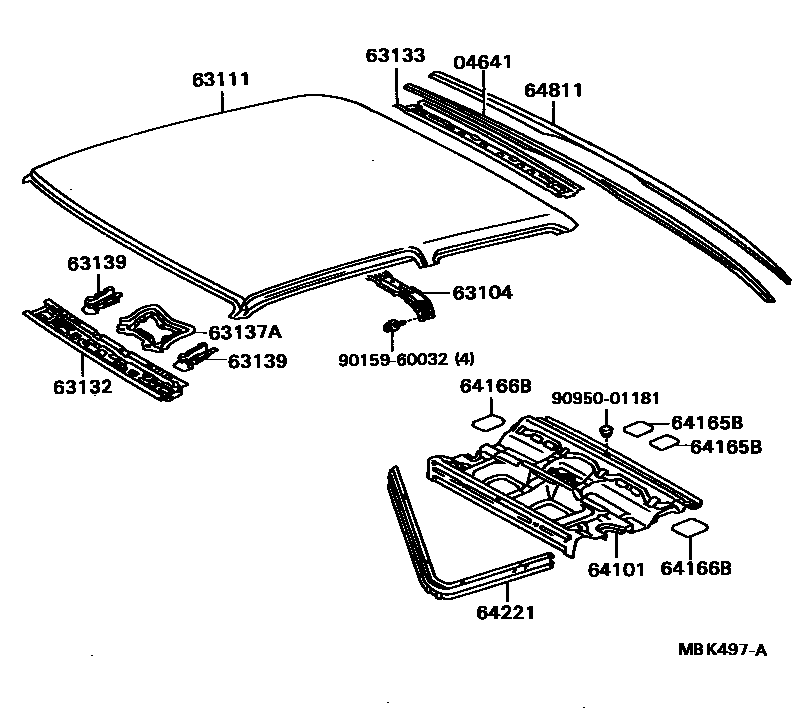

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

04641DAM KIT, BACK WINDOW GLASS

main04562-30040iGZ20,MZ2#198601-198801

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-24020iGZ20,MZ2#198601-198801

main63142-24020iGZ20,MZ2#198601-198801

W/SUN ROOF

63111PANEL, ROOF

main63111-24030iGZ20,MZ2#198601-198801

main63111-24040iGZ20,MZ2#198601-198801

W/SUN ROOF

63132PANEL, WINDSHIELD HEADER, INNER

main63132-24020iGZ20,MZ2#198601-198801

63133FRAME, BACK WINDOW OPENING, UPPER

main63133-24020iGZ20,MZ2#198601-198801

63137ABRACKET, DOME LAMP, NO.1

main63137-24020iGZ20,MZ2#198601-198801

63139BRACKET, DOME LAMP, NO.3

main63139-24010×2iGZ20,MZ2#198601-198801

64101PANEL SUB-ASSY, UPPER BACK

main64101-24020iGZ20,MZ2#198601-198801

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-24010×2iGZ20,MZ2#198601-198801

64166BCOVER, UPPER BACK PANEL HOLE, NO.2

main64165-24010×2iGZ20,MZ2#198611-198801

main64166-24010×2iGZ20,MZ2#198601-198611

64221BRACE, REAR SEAT CUSHION SUPPORT

main64221-24010iGZ20,MZ2#198601-198801

64811GLASS, BACK WINDOW

main64811-24070iGZ20,MZ20..GT,GTT,VX,VZ198601-198801

main64811-24100iGZ20,MZ2#..GT,GTL,GTT198601-198801

9015960032

main90159-60032

9095001181

main90950-01181

14 parts on this diagram · 2 diagrams in section
