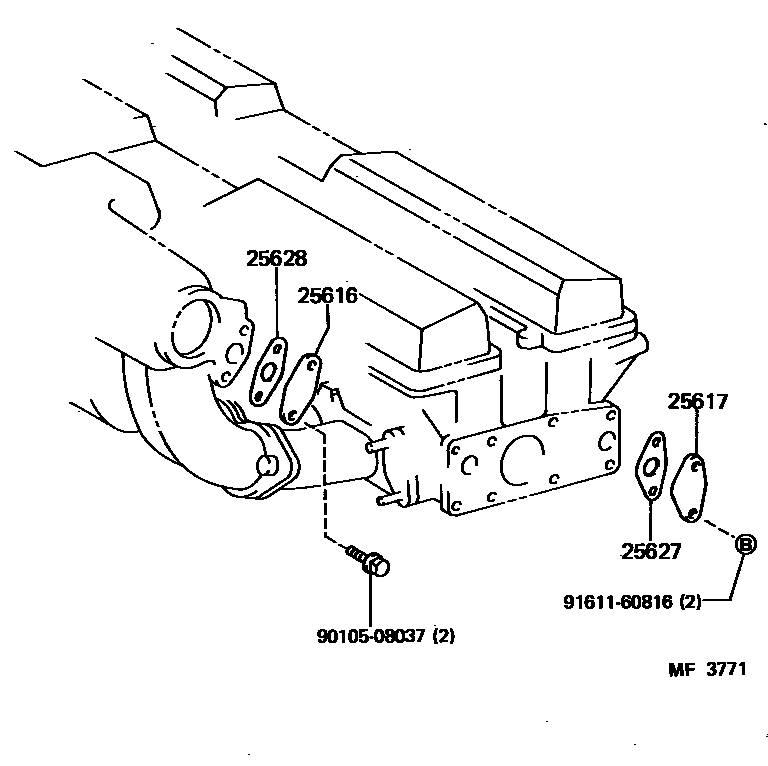

EXHAUST GAS RECIRCULATION SYSTEM

25616PLATE, HOLE COVER(FOR EGR PIPE)

main25617-42010i7MGTEU..MZ2#198601-198801

25617PLATE, EGR HOLE COVER

main25615-43020i7MGTEU..MZ2#198601-198801

25627GASKET, EGR VALVE

main25627-43030i7MGTEU..MZ2#198601-198801

25628GASKET, EGR INLET

main25628-42010i7MGTEU..MZ2#198601-198801

9010508037

main90105-08037

9161160816

main91611-60816

6 parts on this diagram · 1 diagram in section
