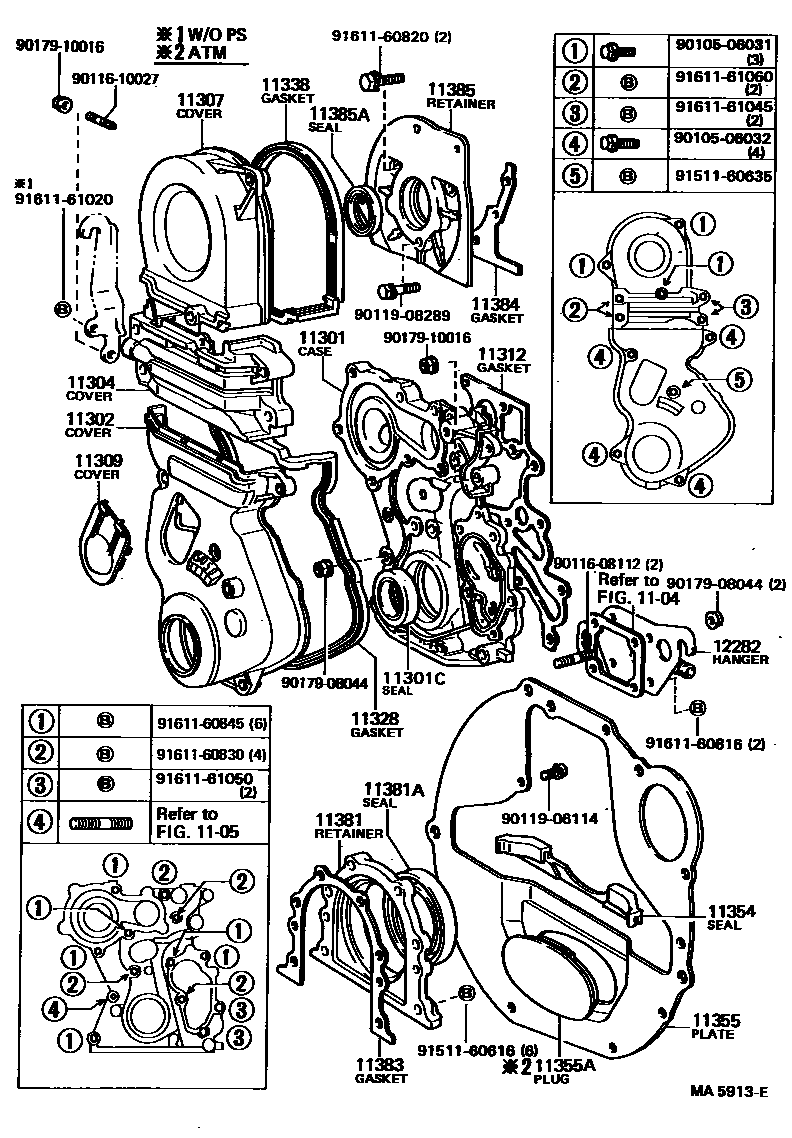

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1105CYLINDER BLOCK

→ Go to FIG 11-05

11301CASE SUB-ASSY, TIMING GEAR

main11301-42010i7MGTEU..MZ2#198601-198801

main11311-70011i1GEU..GZ20198601-198801

main11311-88300i1GGEU..GZ20198601-198801

main11311-88340i1GGTEU..GZ20198601-198801

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42003i7MGTEU..MZ2#198601-198801

main90311-45003i1GEU,1GG#..GZ20198601-198801

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-70011i1GEU..GZ20198601-198801

main11321-42020i7MGTEU..MZ2#198601-198801

11304COVER, TIMING CHAIN OR BELT, NO.2

main11322-42010i7MGTEU..MZ2#198601-198801

main11322-70011i1GEU..GZ20198601-198801

11307COVER, SUB-ASSY, TIMING BELT, NO.3

main11304-42010i7MGTEU..MZ2#198601-198801

main11304-70010i1GEU..GZ20198601-198801

11309COVER SUB-ASSY, TIMING BELT, NO.4

main11325-42010i7MGTEU..MZ2#198601-198801

main11325-70010i1GEU..GZ20198601-198801

main11325-88300i1GG#..GZ20198601-198801

11312GASKET, FRONT END PLATE

main11312-43010i7MGTEU..MZ2#198601-198801

NO.1

main11312-70012i1GEU,1GG#..GZ20198601-198801

main11313-42010i7MGTEU..MZ2#198601-198801

NO.2

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-42010i7MGTEU..MZ2#198601-198801

main11328-70012i1GEU..GZ20198601-198801

main11328-88300i1GG#..GZ20198601-198801

11338GASKET, TIMING CHAIN COVER, NO.2

main11329-70010i1GEU..GZ20198601-198801

11354SEAL, FLYWHEEL HOUSING DUST

main11354-70010i1GEU,1GG#..GZ20198601-198801

11355PLATE, REAR END

main11355-41010i7MGTEU..MZ2#198601-198801

main11355-70010i1GEU,1GG#..GZ20..5F198601-198801

main11355-70020i1GEU,1GG#..GZ20..4FC198601-198801

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01307i1GEU,1GG#..GZ20..4FC198601-198801

11381RETAINER, ENGINE REAR OIL SEAL

main11381-43010i7MGTEU..MZ2#198601-198801

main11381-70010i1GEU,1GG#..GZ20198601-198801

11381ASEAL, ENGINE REAR OIL

main90311-75004i1GEU,1GG#..GZ20198605-198801

main90311-75113i1GEU,1GG#..GZ20198601-198605

main90311-80001i7MGTEU..MZ2#198601-198801

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-41010i7MGTEU..MZ2#198601-198801

main11383-70010i1GEU..GZ20; 1GGEU..GZ20198601-198801

*53

main11383-88340i1GG#..GZ20198601-198801

*54

11384GASKET, OIL SEAL RETAINER, NO.2

main11384-70010i1GEU..GZ20198601-198801

11385RETAINER, CAMSHAFT OIL SEAL

main11382-70010i1GEU..GZ20198601-198801

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-35008×2i1GG#..GZ20198601-198801

main90311-38017i1GEU..GZ20198601-198701

main90311-38025i1GEU..GZ20198701-198801

12282HANGER, ENGINE, NO.2

main12282-70011i1GEU..GZ20198601-198801

9010506031

main90105-06031

9010506032

main90105-06032

9011608112

main90116-08112

9011610027

main90116-10027

9011906114

main90119-06114

9011908289

main90119-08289

9017908044

main90179-08044

9017910016

main90179-10016

9151160616

main91511-60616

9151160635

main91511-60635

9161160816

main91611-60816

9161160820

main91611-60820

9161160830

main91611-60830

9161160845

main91611-60845

9161161020

main91611-61020

9161161045

main91611-61045

9161161050

main91611-61050

9161161060

main91611-61060

39 parts on this diagram · 3 diagrams in section
