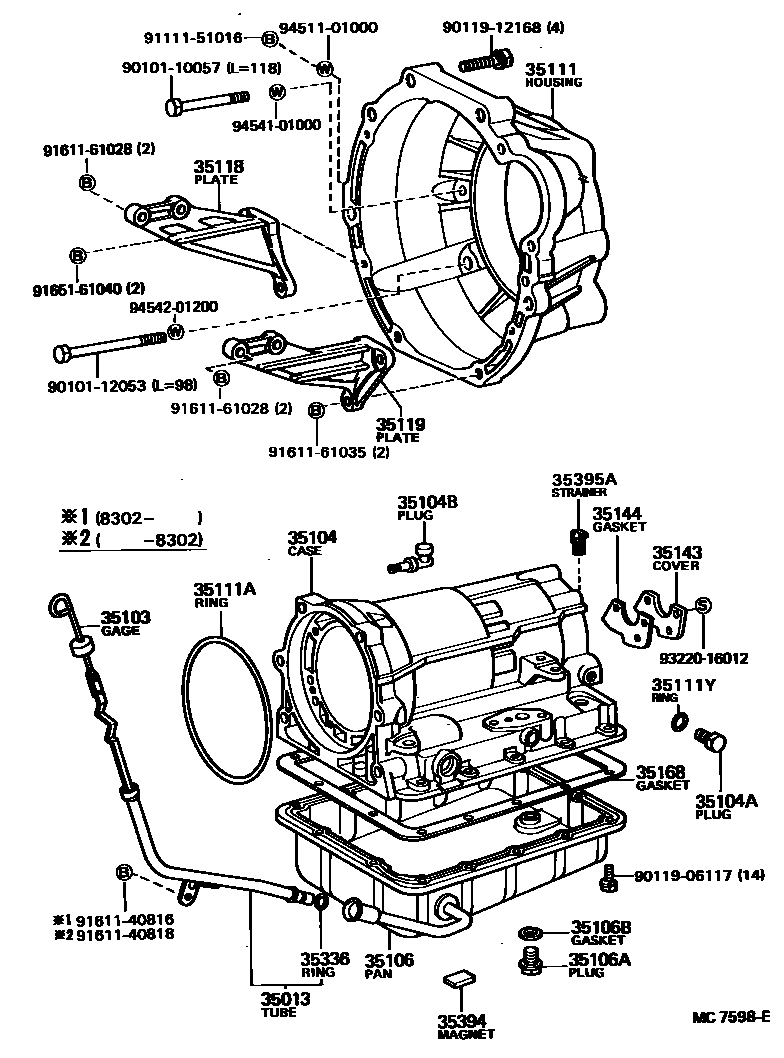

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-22120iGZ10..4FC..(V1,V2,VR,VX)198102-198512

main35013-22150iMZ10198107-198512

main35013-24010iGZ10..4FC..GT198302-198512

main35013-30100iMZ11..4FC198102-198501

main35013-30130iMZ12..4FC198501-198512

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-30120iGZ10,MZ11..4FC..GT198102-198308

main35103-30121iGZ10,MZ11..4FC..GT198308-198512

main35103-30130iGZ10,MZ10..4FC..(TBO,V1,V2,VR,VX)198102-198308

main35103-30131iGZ10,MZ10..4FC..(TBO,V2,VR,VX)198308-198512

main35103-30160iMZ12..4FC198501-198512

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-26010iGZ10,MZ11..4FC198102-198106

main35104-26020iGZ10,MZ1#..4FC198106-198203

main35104-26021iGZ10..4FC..(V2,VR,VX)198410-198512

main35104-30100iGZ10,MZ11..4FC..GT198203-198401

main35104-30101iGZ10,MZ10,11..4FC..(GT,TBO)198410-198512

main35104-30131iMZ12..4FC198501-198512

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iGZ10,MZ1#..4FC198106-198512

main90341-08079×2iGZ10,MZ11..4FC198102-198106

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03069iGZ10,MZ1#..4FC198102-198512

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-30050iGZ10,MZ10..4FC..(TBO,V1,V2,VR,VX)198102-198512

main35106-30060iGZ10,MZ11..4FC..GT198102-198512

main35106-30080iMZ12..4FC198501-198512

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10003iGZ10,MZ1#..4FC198102-198307

main90341-10006iGZ10,MZ1#..4FC198307-198512

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iGZ10,MZ1#..4FC198102-198512

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-14070iMZ10,11..4FC198108-198512

main35111-24010iGZ10..4FC198102-198512

main35111-24020iMZ12..4FC198501-198512

main35111-30100iMZ1#..4FC198102-198108

35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)

main90301-99006iGZ10,MZ10,11..4FC198102-198512

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iGZ10,MZ1#..4FC198102-198512

35118PLATE, STIFENER, RH (ATM)

main33118-22040iMZ1#..4FC198102-198512

main33118-22050iGZ10..4FC198102-198512

35119PLATE, STIFENER, LH (ATM)

main33119-22030iMZ1#..4FC198102-198512

main33119-22041iGZ10..4FC198102-198512

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iGZ10,MZ10,11..4FC198102-198512

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-22010iGZ10,MZ10,11..4FC198102-198512

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iGZ10,MZ10,11..4FC198102-198512

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iGZ10,MZ1#..4FC198102-198512

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iGZ10,MZ1#..4FC198102-198512

35395ASTRAINER, GOVERNOR OIL

main35395-40010iGZ10,MZ1#..4FC198302-198310

9010110057

main90101-10057

9010112053

main90101-12053

9011906117

main90119-06117

9011912168

main90119-12168

9111151016

main91111-51016

9161140816

main91611-40816

9161140818

main91611-40818

9161161028

main91611-61028

9161161035

main91611-61035

9165161040

main91651-61040

9322016012

main93220-16012

9451101000

main94511-01000

9454101000

main94541-01000

9454201200

main94542-01200

33 parts on this diagram · 5 diagrams in section
