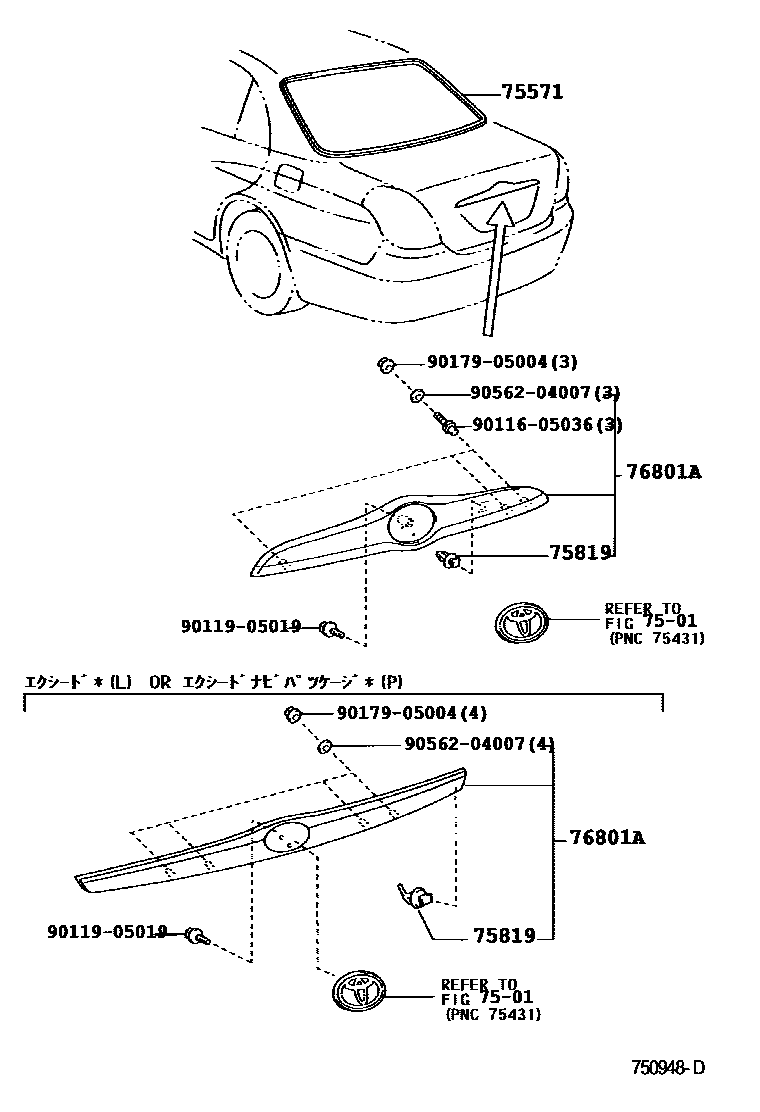

REAR MOULDING

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-22270iGX11#,JZX110200106-200404

75819CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main75819-12040iGX11#,JZX110200106-200404

main76817-44020×2iGX11#,JZX110..20,25200301-200404

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-22040-A0iGX11#,JZX110200106-200404

WHITE PEARL CS.,062

main76801-22040-B0iGX11#,JZX110200106-200404

SILVER ME.,1C0

main76801-22040-C0iGX11#,JZX110200106-200404

BLACK,202

main76801-22040-D0iGX11#,JZX110200106-200404

BLACK CHERRY MC.,3P9

main76801-22040-D1iGX110200204-200212

main76801-22040-D2iGX11#,JZX110200301-200404

LT.ROSE M.M.,3Q1

main76801-22040-J0iGX11#,JZX110200106-200301

DK.BLUE MC.,8N8

main76801-22040-J1iGX11#,JZX110200106-200301

LT. BLUE M.M.,8P7

main76801-22050-B2iJZX110..V25,VR25200201-200206

main76801-22050-J0iJZX110..V25,VR25200201-200206

main76801-22090-A0iGX11#,JZX110..20,25200301-200404

main76801-22090-B0iGX11#,JZX110..20,25200301-200404

main76801-22090-D0iGX11#,JZX110..20,25200301-200404

main76801-22090-D1iGX11#,JZX110..20,25200301-200404

9011605036

main90116-05036

9011905019

main90119-05019

9017905004

main90179-05004

9056204007

main90562-04007

8 parts on this diagram · 1 diagram in section
