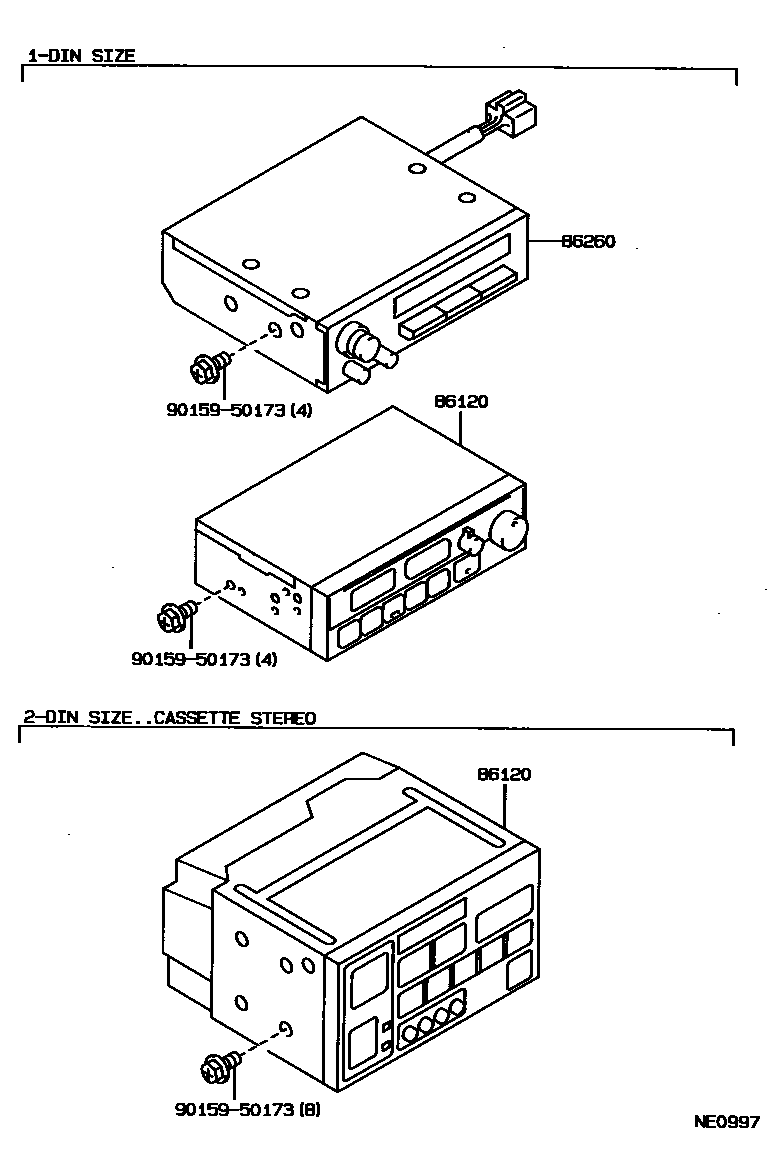

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CD AUTO CHANGER

86120RECEIVER ASSY, RADIO

main86120-16530iLX80,SX80,YX80..KYO198808-199210

main86120-20650iGX81,LX80,SX80..SCM,SDX198808-199008

main86120-22840iLX80,SX80..SCM..(CI,HTWC,TD)198903-199210

main86120-22850iGX81,MX83..SLTG198808-199008

main86120-22851iJZX81,MX83..SLTG199008-199210

main86120-22860iGX81..GT,SLT,SLTG198808-198908

main86120-22861iGX81,MX83..GT,SLT,SLTG198908-199008

main86120-22862iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

main86120-2A080iGX81..SLT..HTWC199004-199007

main86120-2A081iGX81,JZX81..(GT,SLT)..(TWC,TWT)199008-199210

main86120-2A130iGX81..4FC..SLT..HTWC; GX81..5F..SLT;GX81,JZX81,MX83..4FC..(TWC,TWT)199008-199210

main86120-2A160iGX81,LX80,SX80..SCM,SDX199008-199210

86260TAPE PLAYER ASSY

main86260-22230iGX81,LX80,SX80..SCM,SDX198808-199210

9015950173

main90159-50173

3 parts on this diagram · 3 diagrams in section
