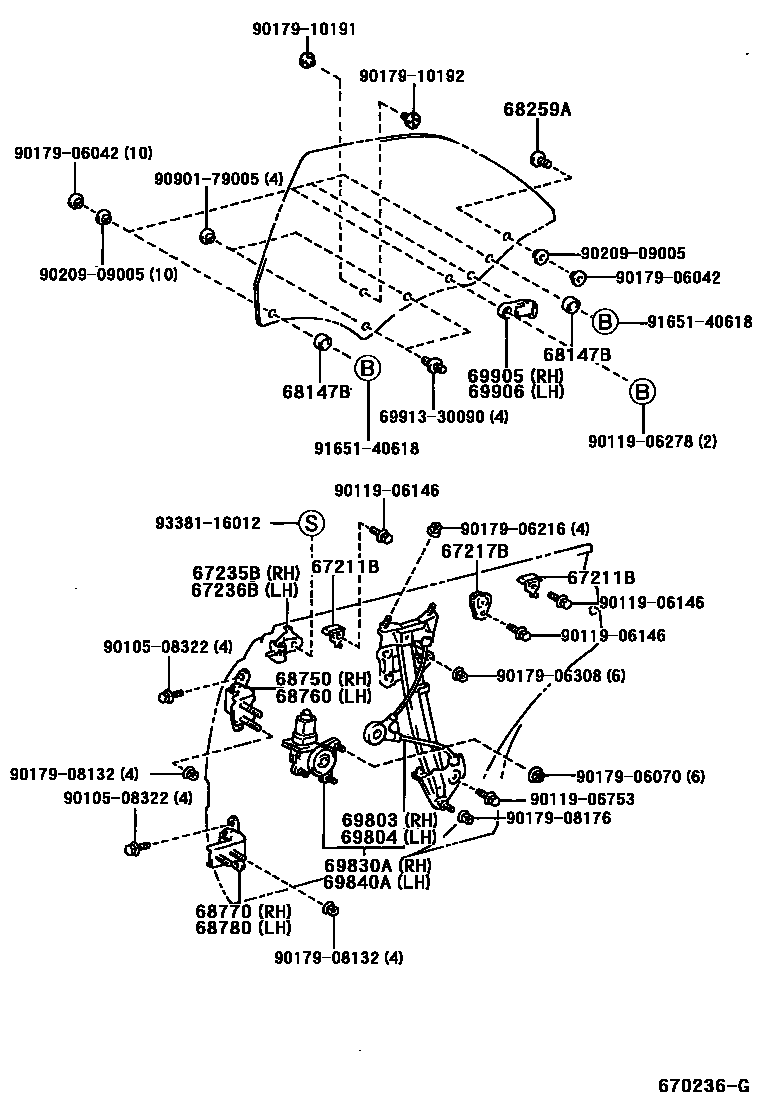

REAR DOOR WINDOW REGULATOR & HINGE
67211BSTOP, REAR DOOR WINDOW, UPPER
67217BSTOPPER, REAR DOOR GLASS
67235BSTABILIZER, DOOR GLASS FEMALE, RH
67236BSTABILIZER, DOOR GLASS FEMALE, LH
68147BSTOP, REAR DOOR GLASS, UPPER
68259ACLIP, REAR DOOR WINDOW
68750HINGE ASSY, REAR DOOR, UPPER RH
68760HINGE ASSY, REAR DOOR, UPPER LH
68770HINGE ASSY, REAR DOOR, LOWER RH
68780HINGE ASSY, REAR DOOR, LOWER LH
69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69830AREGULATOR ASSY, REAR DOOR WINDOW, RH
69840AREGULATOR ASSY, REAR DOOR WINDOW, LH
69905BRACKET SUB-ASSY, REAR DOOR GLASS, RH
69906BRACKET SUB-ASSY, REAR DOOR GLASS, LH
6991330090BOLT, FRONT DOOR GLASS SETTING
main69913-30090
9010508322
main90105-08322
9011906146
main90119-06146
9011906278
main90119-06278
9011906753
main90119-06753
9017906042
main90179-06042
9017906070
main90179-06070
9017906216
main90179-06216
9017906308
main90179-06308
9017908132
main90179-08132
9017908176
main90179-08176
9017910191
main90179-10191
9017910192
main90179-10192
9020909005
main90209-09005
9090179005
main90901-79005
9165140618
main91651-40618
9338116012
main93381-16012
33 parts on this diagram · 1 diagram in section
