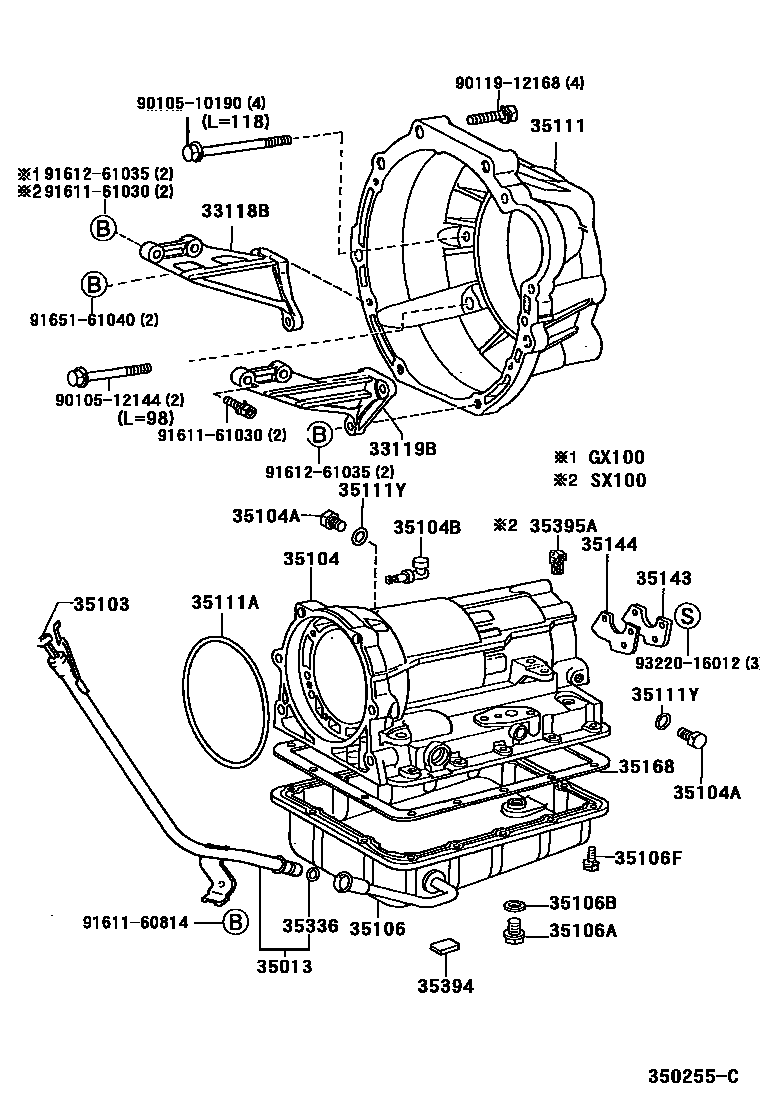

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A42DE,A42D 0002 1A340E,A341E 0003 1A340H 0004 1A43D 0005 1A42DE,A42D 0006 1A340H 0007 1A651E

33118BPLATE, STIFFENER, RH(ATM)

main33118-14033iSX100199704

main33118-22051iGX10#..4FC199609

main33118-25020iLX100199609-199908

33119BPLATE, STIFFENER, LH(ATM)

main33119-14050iSX100199704

main33119-22042iGX10#..4FC199609

main33119-25020iLX100199609-199908

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-22340iJZX101199609

main35013-22350iJZX100..AVT,AVTG,TOUS199609

main35013-22430iJZX105199609

main35013-22440iSX100199704

main35013-22520iGX105199808

main35013-22530iGX100..4FC199808

main35013-24080iJZX100..4FC..TOUV199609

main35013-30360iGX100..4FC199609-199808

main35013-43030iLX100199609-199908

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-22340iSX100199704

main35103-22380iJZX100..AVT,AVTG,TOUS199609-199705

main35103-22381iJZX100..4FC..(AVT,AVTG,TOUS)199705

main35103-22400iJZX105199609-199705

main35103-22401iJZX105199705

main35103-22410iGX105199808

main35103-22420iGX100..4FC199808

main35103-22430iJZX100..TOUS199808

main35103-24090iJZX100..4FC..TOUV199609-199705

main35103-24091iJZX100..4FC..TOUV199705-199906

main35103-24092iJZX100..4FC..TOUV199906

main35103-30430iJZX101199609-199705

main35103-30431iJZX101199705-199808

main35103-30460iGX100..4FC199609-199808

main35103-30610iJZX101199808

main35103-43030iLX100199609-199908

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22060iGX100..4FC199808

main35104-22070iJZX100..AVT,AVTG; JZX101;JZX100..4FC..TOUV200008

main35104-26021iGX100,LX100,SX100..4FC199609-199808

main35104-30170iJZX100..AVT,AVTG200008

main35104-30190iGX105,JZX105199808

main35104-30200iJZX100..TOUS199808

main35104-35011iJZX105199609-199808

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×3iGX10#,JZX10#,LX100,SX100..4FC; JZX100..TOUS199808

main90341-14011iJZX105199609-199808

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03098iGX10#,JZX10#..ATM199808

main90930-03099iGX105,JZX10#..ATM199609-199902

main90930-03108iGX100,LX100,SX100..4FC199609-199808

main90930-03149iGX10#..4FC199902-200012

main90930-03168iGX10#,JZX101..4FC;JZX100..ATM..(TOUS,TOUV); JZX100..AVT,AVTG200012

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-22081iJZX105199609

main35106-22090iSX100199704

main35106-22100iGX100..4FC199808-199812

main35106-22101iGX100..4FC199812

main35106-28030iGX100..4FC199609-199808

main35106-30041iLX100199609-199908

main35106-30130iJZX101199609

main35106-30161iGX105199808

main35106-30180iJZX100..4FC199609

main35106-30210iJZX100..TOUS199808

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iGX100,LX100,SX100..4FC199609-199808

main90341-10017iJZX10#..4FC199609-199705

main90341-10018iJZX10#..4FC199705-199808

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iGX100,JZX100,101,LX100,SX100..4FC199609-199705

main35178-50010iJZX105199609-199705

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06117×14iGX100,LX100,SX100..4FC199609

main90119-06513×18iJZX100..TOUS199808

main90119-06866iJZX100..TOUS199808

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-22081iJZX10#..4FC199609

main35111-22090iGX100..4FC199808

main35111-24010iGX100..4FC199609-199808

main35111-24031iGX105199808-200010

main35111-26030iLX100199609-199908

main35111-28070iSX100199704-199901

main35111-28080iSX100199901

main35111-30150iJZX100..TOUS199808

35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)

main90301-99054iGX100,LX100,SX100..4FC199609

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iGX10#,JZX10#,LX100,SX100..4FC199609

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iGX100,LX100,SX100..4FC199609

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-28010iGX100,LX100,SX100..4FC199609

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iGX100,LX100,SX100..4FC199609

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iGX10#,JZX10#,LX100,SX100..ATM199609

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×6iGX100..4FC; GX105,JZX105; JZX100,101..ATM; LX100,SX100199609

35395ASTRAINER, GOVERNOR OIL

main35395-40010iLX100,SX100199609

9010510190

main90105-10190

9010512144

main90105-12144

9011912168

main90119-12168

9161160814

main91611-60814

9161161030

main91611-61030

9161261035

main91612-61035

9165161040

main91651-61040

9322016012

main93220-16012

28 parts on this diagram · 7 diagrams in section
