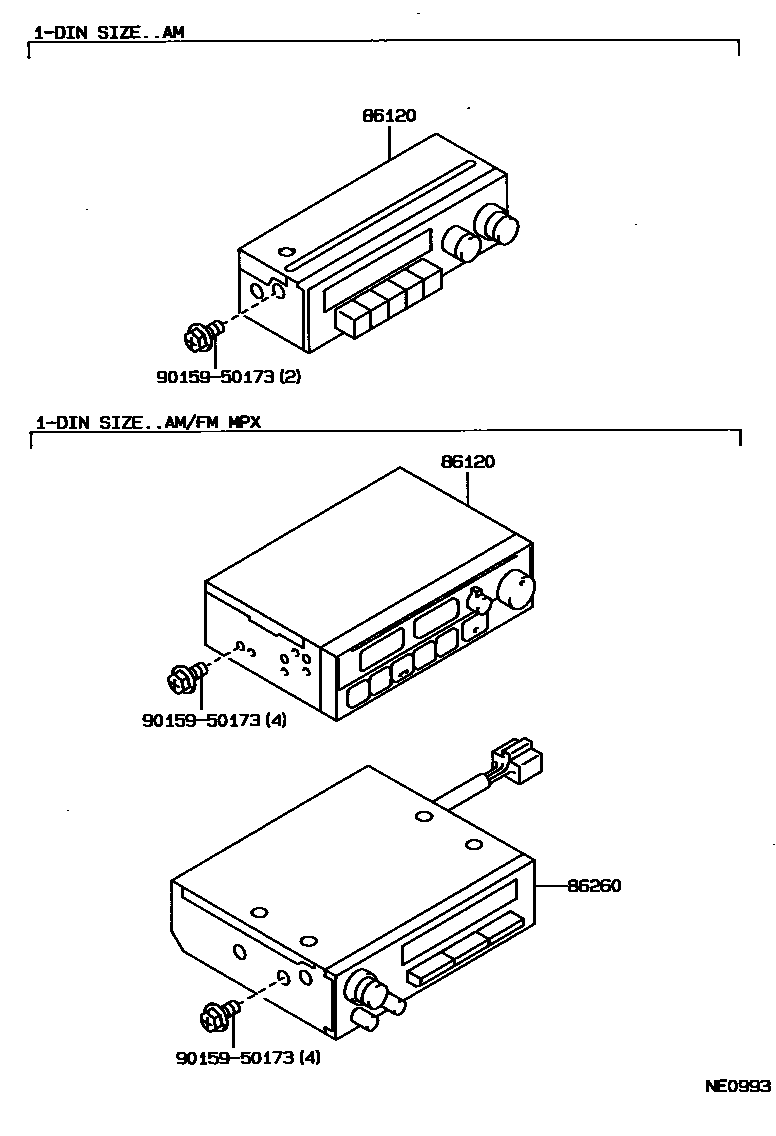

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1

86120RECEIVER ASSY, RADIO

main86120-16530iLX80,SX80,YX80..KYO198808-199210

main86120-20650iGX81,LX80,SX80..SXL,XG,XL198808-199008

main86120-22870iGX81..AVT..HTWC198808-199210

main86120-22880iGX81,MX83..AVTG198808-199008

main86120-22881iJZX81,MX83..AVTG199008-199210

main86120-22890iGX81..AVT,AVTG,GT198808-198908

main86120-22891iGX81,MX83..AVT,AVTG,GT198908-199008

main86120-22892iGX81,JZX81,MX83..AVT,AVTG,GT199008-199210

main86120-2A090iGX81..AVT..HTWC198910-199008

main86120-2A091iGX81..4FC..AVT..HTWC199112

main86120-2A140iGX81,JZX81,MX83..AVT,AVTG,GT199008-199210

main86120-2A160iGX81,LX80,SX80..SXL,XG,XL199008-199210

86260TAPE PLAYER ASSY

main86260-22230iGX81,LX80,SX80..SXL,XG,XL198808-199210

9015950173

main90159-50173

3 parts on this diagram · 4 diagrams in section
