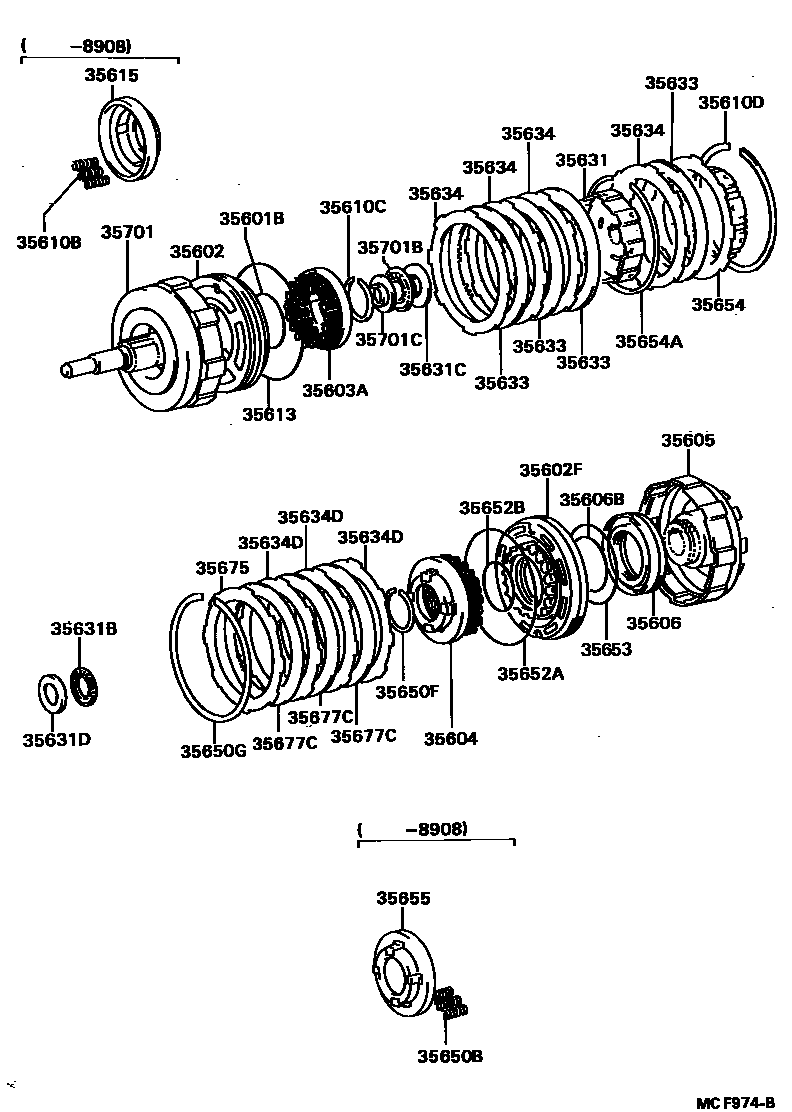

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

0001 1A41,A40D,A42DL 0002 1A340E,A341E 0004 1A43D

35601BRING, O (FOR FRONT CLUTCH DRUM)

main90301-57188iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35602PISTON SUB-ASSY, FRONT CLUTCH

main35602-14012iJZX81..TWT199008-199210

main35602-30042iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

main35602-30061iGX81,MX83..4FC..(SPC,TWC,TWT)198808-199008

main35602-30062iGX81,JZX81,MX83..4FC..TWC199008-199210

35602FPISTON SUB-ASSY, REAR CLUTCH, NO.2

main35602-30041iGX81,SX80,YX80..ATM..(CI,HTWC,LPG)198808-199210

35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN

main35603-22030iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198908-199210

main35603-30011iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN

main35603-22010iGX81,SX80,YX80..ATM..(CI,HTWC,LPG)198908-199210

main35603-22020iLX80..4FC198908-199210

main35604-35010iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

35605DRUM SUB-ASSY, REAR CLUTCH W/2ND SUN GEAR

main35605-30021iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35606PISTON SUB-ASSY, REAR CLUTCH

main35606-22010iGX81,SX80,YX80..ATM..(CI,HTWC,LPG)198808-199210

main35606-30021iLX80..4FC198808-199210

35606BRING (FOR REAR CLUTCH PISTON INNER)

main90301-57188iGX81,SX80,YX80..ATM..(HTWC,LPG); LX80..4FC199008-199210

35610BSPRING, COMPRESSION (FOR FRONT CLUTCH PISTON RETURN)

main90501-11023×20iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-198908

35610CRING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING)

main90520-39261iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35610DRING, HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH)

main90520-99012iGX81,LX80,SX80,YX80..ATM..(HTWC,LPG,TD)199206-199210

main90521-99139iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199206

35613RING, CLUTCH PISTON OIL SEAL, OUTER

main90301-99016iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35615SEAT, CLUTCH PISTON RETURN SPRING

main35615-30020iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-198908

35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)

main35631-30050iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35631BBEARING, THRUST(FOR FRONT CLUTCH HUB)

main90374-28014iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35631CRACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT)

main35789-22050iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35631DRACE, THRUST BEARING(FOR FRONT CLUTCH HUB REAR)

main35789-22020iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35633DISC, CLUTCH (FOR FRONT CLUTCH)

main35677-30030×4iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35634PLATE, FRONT CLUTCH

main35634-22040×3iGX81,LX80,SX80..4FC..(CI,HTWC,TD); YX80..3FC198808-199210

main35634-30070iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199210

35634DPLATE, REAR CLUTCH

main35634-22040×3iGX81..4FC..HTWC198808-199210

main35634-30070×3iLX80,SX80,YX80..ATM198808-199210

35650BSPRING, COMPRESSION (FOR REAR CLUTCH PISTON RETURN)

main90501-10671×18iGX81,YX80..ATM..(HTWC,LPG)198808-198908

main90501-11023×18iLX80..4FC198808-198908

35650FRING, SHAFT SNAP

main90520-39261iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35650GRING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING)

main90521-99139iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35652ARING (FOR REAR CLUTCH OUTER)

main90301-99016iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35652BRING (FOR REAR CLUTCH PISTON INNER)

main90301-57188iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35653RING, REAR CLUTCH OIL SEAL, OUTER

main90301-84184iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35654HUB, REAR CLUTCH

main35654-30010iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35654ARING, HOLE SNAP (FOR REAR CLUTCH HUB)

main90521-99146iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35655SEAT, REAR CLUTCH PISTON RETURN SPRING

main35615-30020iGX81,LX80,YX80..ATM..(HTWC,LPG,TD)198808-198908

35675FLANGE, REAR CLUTCH

main35675-22010iGX81..4FC..HTWC198808-199210

main35675-30030iLX80,SX80,YX80..ATM198808-199210

35677CDISC, REAR CLUTCH

main35677-30030×3iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35701SHAFT SUB-ASSY, INPUT

main35701-22040iYX80..3FC198808-199206

main35701-22041iYX80..3FC199206-199210

main35701-22050iJZX81,MX83;GX81..4FC..(SPC,TWT)198810-199210

main35701-22060iGX81..4FC..TWC198810-199210

main35701-30042iGX81,LX80,SX80..4FC..(CI,HTWC,TD)198808-199206

main35701-30043iGX81,LX80,SX80..4FC..(HTWC,TD)199206-199210

main35701-30062iGX81..4FC..(SPC,TWT)198808-198810

main35701-35012iGX81..4FC..TWC198808-198810

35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)

main90374-23012iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)

main35789-22010iGX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD)198808-199210

main35789-30110iGX81,JZX81,MX83..4FC..(SPC,TWC,TWT)198808-199210

34 parts on this diagram · 3 diagrams in section
