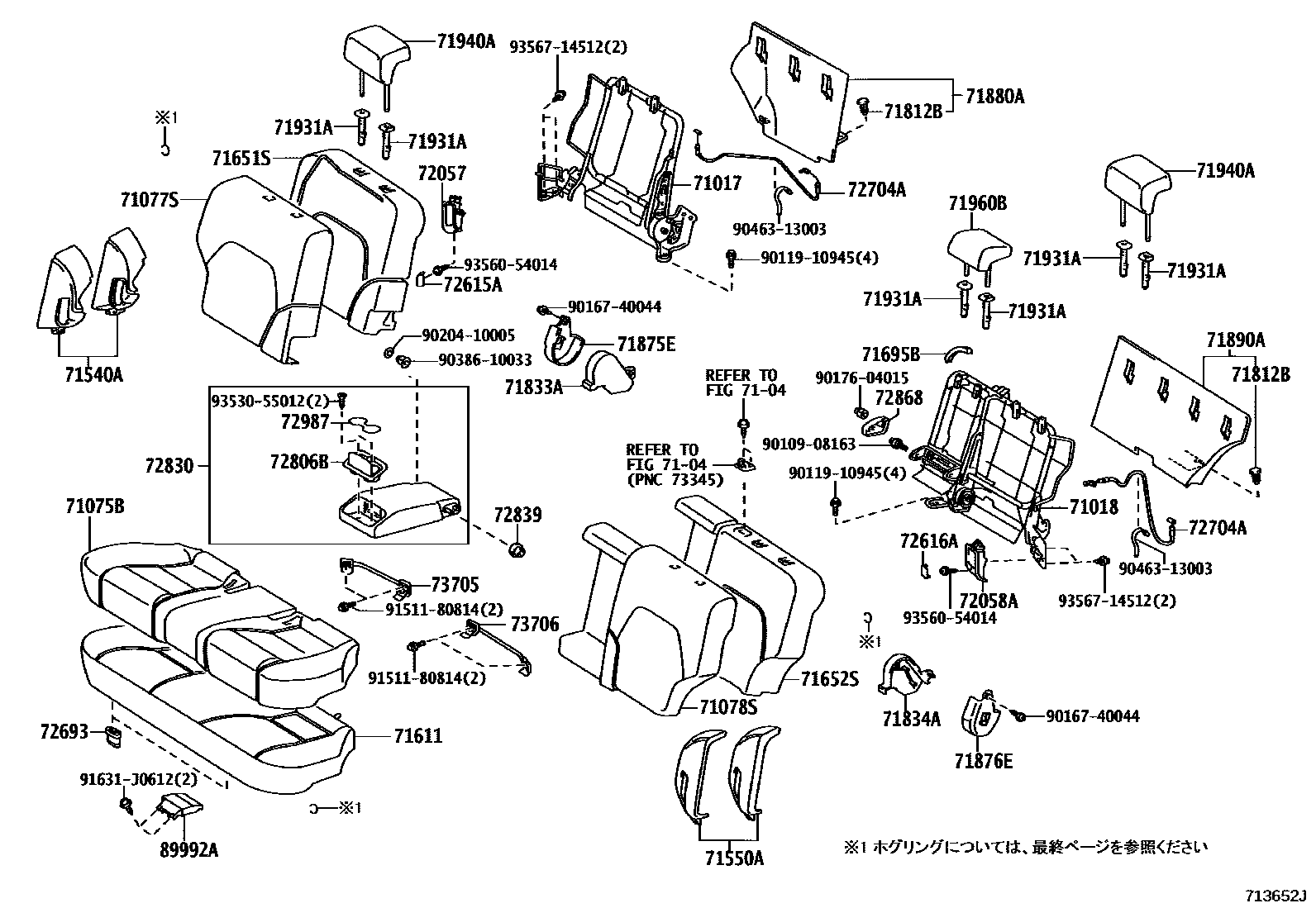

REAR SEAT & SEAT TRACK

0001 1 0002 1�� ����������� ������ 0003 1�������

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-22460iGRX12#200411-200610

main71017-22461iGRX12#200610

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-22030iGRX12#200411-200610

main71018-22031iGRX12#200610

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-22A10-A0iGRX12#200411-200507

IVORY,TRIM0#

main71075-22A10-E0iGRX12#200411-200507

CLOVE,TRIM4#

main71075-22A11-A0iGRX12#200508-200610

IVORY,TRIM0#

main71075-22A11-E0iGRX12#200508-200610

CLOVE,TRIM4#

main71075-22A12-A1iGRX12#200610-200909

IVORY,TRIM0#

main71075-22A12-E1iGRX12#200610-200909

CLOVE,TRIM4#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-22A10-A0iGRX12#200411-200507

IVORY,TRIM0#

main71077-22A10-E0iGRX12#200411-200507

CLOVE,TRIM4#

main71077-22A11-A0iGRX12#200508-200610

IVORY,TRIM0#

main71077-22A11-E0iGRX12#200508-200610

CLOVE,TRIM4#

main71077-22A12-A1iGRX12#200610-200909

IVORY,TRIM0#

main71077-22A12-E1iGRX12#200610-200909

CLOVE,TRIM4#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-22050-A0iGRX12#200411-200507

IVORY,TRIM0#

main71078-22050-E0iGRX12#200411-200507

CLOVE,TRIM4#

main71078-22051-A0iGRX12#200508-200610

IVORY,TRIM0#

main71078-22051-E0iGRX12#200508-200610

CLOVE,TRIM4#

main71078-22052-A1iGRX12#200610-200909

IVORY,TRIM0#

main71078-22052-E1iGRX12#200610-200909

CLOVE,TRIM4#

71540ABACK ASSY, REAR SIDE SEAT, RH

main71540-22030-A2iGRX12#200411-200501

IVORY,TRIM0#

main71540-22030-E2iGRX12#200411-200501

CLOVE,TRIM4#

main71540-22031-A0iGRX12#200502-200610

IVORY,TRIM0#

main71540-22031-E0iGRX12#200502-200610

CLOVE,TRIM4#

main71540-22032-A0iGRX12#200610-200909

IVORY,TRIM0#

main71540-22032-E0iGRX12#200610-200909

CLOVE,TRIM4#

71550ABACK ASSY, REAR SIDE SEAT, LH

main71550-22030-A2iGRX12#200411-200501

IVORY,TRIM0#

main71550-22030-E2iGRX12#200411-200501

CLOVE,TRIM4#

main71550-22031-A0iGRX12#200502-200610

IVORY,TRIM0#

main71550-22031-E0iGRX12#200502-200610

CLOVE,TRIM4#

main71550-22032-A0iGRX12#200610-200909

IVORY,TRIM0#

main71550-22032-E0iGRX12#200610-200909

CLOVE,TRIM4#

71611PAD, REAR SEAT CUSHION

main71503-22140iGRX12#200411-200610

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-22190iGRX120,121..250G,300G200610-200909

main71651-22190iGRX120,121..250G,300G200610-200909

main71651-22190iGRX120,121..250G,300G200610-200909

main71651-22190iGRX120,121..250G,300G200610-200909

main71651-22190iGRX120,121..250G,300G200610-200909

main71651-22190iGRX120,121..250G,300G200610-200909

main71651-22190iGRX12#200411-200610

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-22090iGRX120,121..250G,300G200610-200909

main71652-22090iGRX12#200411-200610

main71652-22090iGRX120,121..250G,300G200610-200909

main71652-22090iGRX120,121..250G,300G200610-200909

main71652-22090iGRX120,121..250G,300G200610-200909

main71652-22090iGRX120,121..250G,300G200610-200909

main71652-22090iGRX120,121..250G,300G200610-200909

71695BPROTECTOR, REAR SEAT, NO.1 LH

main71695-22020iGRX12#200411-200610

71812BCLIP(FOR REAR SEAT CUSHION COVER)

main90467-07080-C0iGRX120,121..250G,300G200610-200909

BLACK,TRIM2#

main90467-07080-C0iGRX120,121..250G,300G200411-200909

BLACK

71833ACOVER, REAR SEAT RECLINING, NO.1 RH

main71833-22030-A0iGRX12#200411-200909

IVORY,TRIM0#

main71833-22030-E0iGRX12#200411-200909

CLOVEBROWN,TRIM4#

71834ACOVER, REAR SEAT RECLINING, NO.1 LH

main71834-22040-A0iGRX12#200411-200909

IVORY,TRIM0#

main71834-22040-E0iGRX12#200411-200909

CLOVEBROWN,TRIM4#

71875ECOVER, RECLINING ADJUSTER INSIDE, RH

main71875-22090iGRX12#200610

main71875-22090-A0iGRX12#200411-200610

IVORY,TRIM0#

main71875-22090-E0iGRX12#200411-200610

CLOVEBROWN,TRIM4#

71876ECOVER, RECLINING ADJUSTER INSIDE, LH

main71876-22080iGRX12#200610

main71876-22080-A0iGRX12#200411-200610

IVORY,TRIM0#

main71876-22080-E0iGRX12#200411-200610

CLOVEBROWN,TRIM4#

71880ACARPET ASSY, REAR SEATBACK BOARD, RH

main71880-22030-C0iGRX121,125..250G,300G200411-200909

BLACK,TRIM0#,2#,4#

main71880-22030-C0iGRX121,125..250G,300G200411-200909

BLACK,TRIM0#,4#

71890ACARPET ASSY, REAR SEATBACK BOARD, LH

main71890-22020-C0iGRX120,121..250G,300GP200411-200909

BLACK,TRIM0#,2#,4#

main71890-22020-C0iGRX120,121..250G,300GP200411-200909

BLACK,TRIM0#,4#

71931ASUPPORT, REAR SEAT HEADREST

main71930-47010-A2iGRX12#200411-200909

main71930-47010-A2iGRX120,125200610-200909

main71930-47010-A2iGRX120,125200610-200909

main71930-47010-A2iGRX120,125200610-200909

main71930-47010-A2iGRX120,125200610-200909

main71930-47010-A2iGRX120,125200411-200610

main71930-47010-A2iGRX120,125200411-200610

main71930-47010-A2iGRX120,125200411-200610

main71930-47010-A2iGRX120,125200411-200610

main71930-47010-E2iGRX120,125200610-200909

main71930-47010-E2iGRX12#200411-200909

main71930-47010-E2iGRX12#200610-200909

main71930-47010-E2iGRX12#200610-200909

main71930-47010-E2iGRX12#200610-200909

main71930-47010-E2iGRX120,125200411-200610

main71930-47010-E2iGRX120,125200411-200610

main71930-47010-E2iGRX120,125200411-200610

main71930-47010-E2iGRX120,125200411-200610

main71931-47010-A6iGRX120,125200610-200909

main71931-47010-A6iGRX120,125200411-200610

main71931-47010-A6iGRX120,125200411-200610

main71931-47010-A6iGRX120,125200411-200610

main71931-47010-A6iGRX120,125200411-200610

main71931-47010-A6iGRX120,125200411-200909

main71931-47010-A6iGRX120,125200610-200909

main71931-47010-A6iGRX120,125200610-200909

main71931-47010-A6iGRX120,125200610-200909

main71931-47010-E3iGRX12#200411-200909

main71931-47010-E3iGRX120,125200411-200610

main71931-47010-E3iGRX120,125200411-200610

main71931-47010-E3iGRX120,125200411-200610

main71931-47010-E3iGRX120,125200411-200610

main71931-47010-E3iGRX120,125200610-200909

main71931-47010-E3iGRX120,125200610-200909

main71931-47010-E3iGRX120,125200610-200909

main71931-47010-E3iGRX120,125200610-200909

71940AHEADREST ASSY, REAR SEAT

main71940-22570-A0iGRX12#200411-200610

IVORY,TRIM0#

main71940-22570-E0iGRX12#200411-200610

CLOVE,TRIM4#

main71940-22571-A1iGRX12#200610-200909

IVORY,TRIM0#

main71940-22571-E1iGRX12#200610-200909

CLOVE BROWN,TRIM4#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-22020-A0iGRX12#200411-200507

IVORY,TRIM0#

main71960-22020-E0iGRX12#200411-200507

CLOVE,TRIM4#

main71960-22021-A0iGRX12#200508-200610

IVORY,TRIM0#

main71960-22021-E0iGRX12#200508-200610

CLOVE,TRIM4#

main71960-22022-A1iGRX12#200610-200909

IVORY,TRIM0#

main71960-22022-E1iGRX12#200610-200909

CLOVE BROWN,TRIM4#

72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

main72057-22010-A0iGRX12#200411-200909

IVORY,TRIM0#

main72057-22010-E0iGRX12#200411-200909

CLOVEBROWN,TRIM4#

72058ALEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH

main72058-22010-A0iGRX12#200411-200909

IVORY,TRIM0#

main72058-22010-E0iGRX12#200411-200909

CLOVEBROWN,TRIM4#

72615ACOVER, REAR SEATBACK LOCK STRIKER, RH

main72615-22010-A0iGRX12#200411-200909

IVORY,TRIM0#

main72615-22010-E0iGRX12#200411-200909

CLOVEBROWN,TRIM4#

72616ACOVER, REAR SEATBACK LOCK STRIKER, LH

main72615-22010-A0iGRX12#200411-200909

IVORY,TRIM0#

main72615-22010-E0iGRX12#200411-200909

CLOVEBROWN,TRIM4#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080iGRX12#200411-200610

72704ACABLE, REAR SEAT RECLINING CONTROL

main72704-22010iGRX12#200411-200610

72806BHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-32010-A2iGRX12#200411-200909

IVORY,TRIM0#

main72806-32010-E0iGRX12#200411-200909

CLOVEBROWN,TRIM4#

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-22790-A0iGRX12#200411-200610

IVORY,TRIM0#

main72830-22790-E0iGRX12#200411-200610

CLOVE,TRIM4#

main72830-22791-A2iGRX12#200610-200909

IVORY,TRIM0#

main72830-22791-E1iGRX12#200610-200909

CLOVE,TRIM4#

72839SHIM, REAR SEAT ARMREST HINGE

main72839-22010iGRX12#200610-200909

72868COVER, CENTER ARMREST HINGE, RH

main72868-22010-A0iGRX12#200411-200909

IVORY,TRIM0#

main72868-22010-E0iGRX12#200411-200909

CLOVEBROWN,TRIM4#

72987COVER, REAR SEAT CENTER ARMREST

main72987-22010-A0iGRX12#200610-200909

IVORY,TRIM0#

main72987-22010-E0iGRX12#200610-200909

CLOVEBROWN,TRIM4#

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-30030iGRX12#200411-200610

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-30030iGRX12#200411-200610

89992ACASE, LESS OSCILLATOR ELECTRICAL KEY

main00000-00000iGRX120,125200610-200909

main00000-00000iGRX120,125200610-200909

main89992-30040iGRX12#..250G,300G200411-200510

main89992-30120iGRX12#..250G,300G200511-200909

9010908163

main90109-08163

9011910945

main90119-10945

9016740044

main90167-40044

9017604015

main90176-04015

9020410005

main90204-10005

9038610033

main90386-10033

9046313003

main90463-13003

9151180814

main91511-80814

91631J0612

main91631-J0612

9353055012

main93530-55012

9356054014

main93560-54014

9356714512

main93567-14512

48 parts on this diagram · 3 diagrams in section
