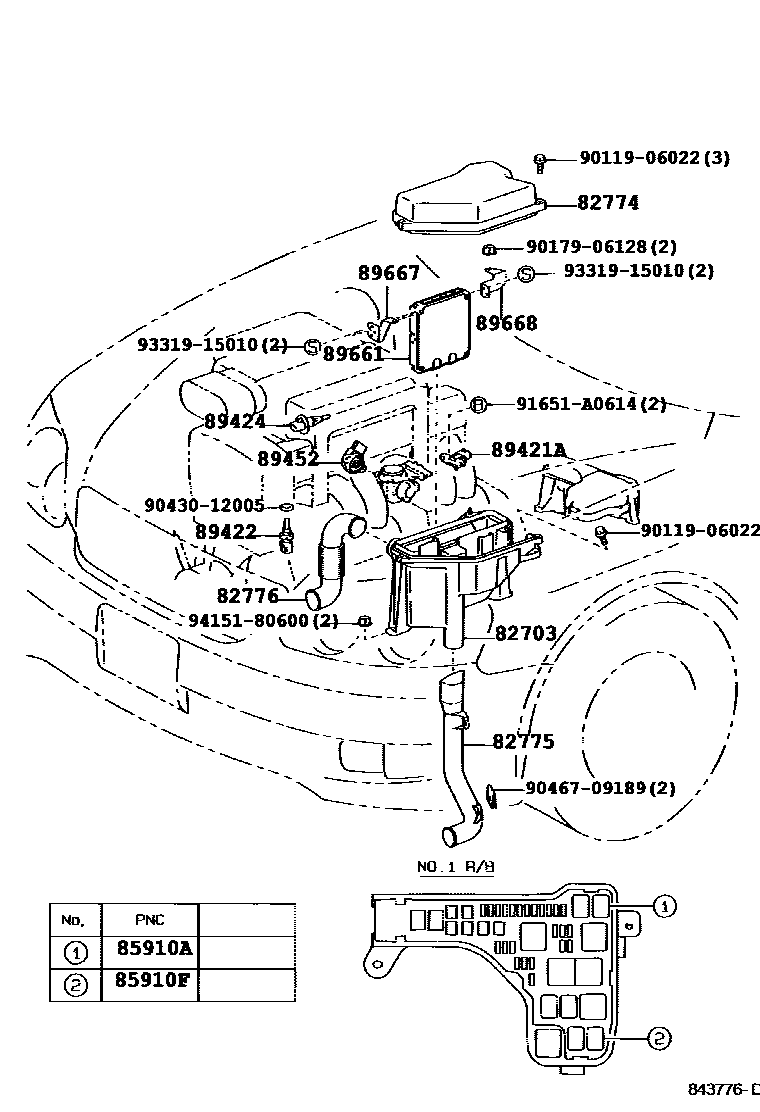

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

82703BOX SUB-ASSY, ENGINE ROOM ECU

main82703-30020iJZX110..GDV200210

main82703-30030iGX11#,JZX11#..GD,GDG,GDS200210

82774COVER, ENGINE ROOM ECU

main82774-30020iGX11#..GD,IR;JZX110..GDGT,GDV,IRV200010

main82774-30030iJZX11#..GD,GDG,GDS,IRS200010

82775DUCT, ENGINE ROOM ECU INLET

main82775-30020iGX11#,JZX11#..SED200210

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-22010iGX11#,JZX11#..GD,GDG,GDS200010-200101

main82776-22011iJZX110..GD,GDG,GDS,IRS;GX11#,JZX115..GD,GDG,IR,IRS200101

main82776-22020iJZX110..GDGT,GDV,IRV200010-200604

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010-200706

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010-200706

89421ASENSOR, TURBO PRESSURE

main89421-20190iJZX110..GD,GDG,GDS,IRS;GX11#,JZX115..GD,GDG,IR,IRS200010-200706

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30030iJZX11#200010-200706

main89422-35010iGX11#..SED200210

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iGX11#,JZX11#..GD,GDG,GDS200210

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22070iGX11#..GD,IR200010-200706

main89452-22100iJZX110..GD,GDG,GDS,IRS200010-200706

main89452-30140iJZX11#..(4FC,5F)..(GDG,GDGT,GDV,IRS,IRV)200010-200706

89661COMPUTER, ENGINE CONTROL

main89661-2A060iJZX110..4FC..GDV200210

main89661-2A070iJZX110..5F200210

main89661-2A080iJZX110..GD200010-200111

main89661-2A081iJZX110..GD200111-200210

main89661-2A090iJZX110..GD200010-200111

main89661-2A091iJZX110..GD200111-200210

main89661-2A100iJZX110..5FC200010-200107

main89661-2A101iJZX110..5FC200107-200108

main89661-2A110iJZX110..5FC200010-200107

main89661-2A111iJZX110..SED..5FC200111-200210

main89661-2A120iJZX115200010-200101

main89661-2A121iJZX115200101-200109

main89661-2A122iJZX115..GDG200210

main89661-2A130iGX115..GD200010-200210

main89661-2A140iGX110..SED200210

main89661-2A310iGX115..IR200201-200706

main89661-2A320iGX110..IR200201-200706

main89666-22010iJZX110..SED..5FC200210

main89666-22020iJZX110..SED..5FC200210

main89666-22030iJZX110..GD200210

main89666-22040iJZX110..GD200210

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-30250iGX11#..SED; JZX110..GDV200210

main89667-30270×2iJZX115;JZX110..GD,IRS200010-200706

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-30210iGX11#..SED200210

9011906022

main90119-06022

9017906128

main90179-06128

9043012005

main90430-12005

9046709189

main90467-09189

91651A0614

main91651-A0614

9331915010

main93319-15010

9415180600

main94151-80600

20 parts on this diagram · 4 diagrams in section
