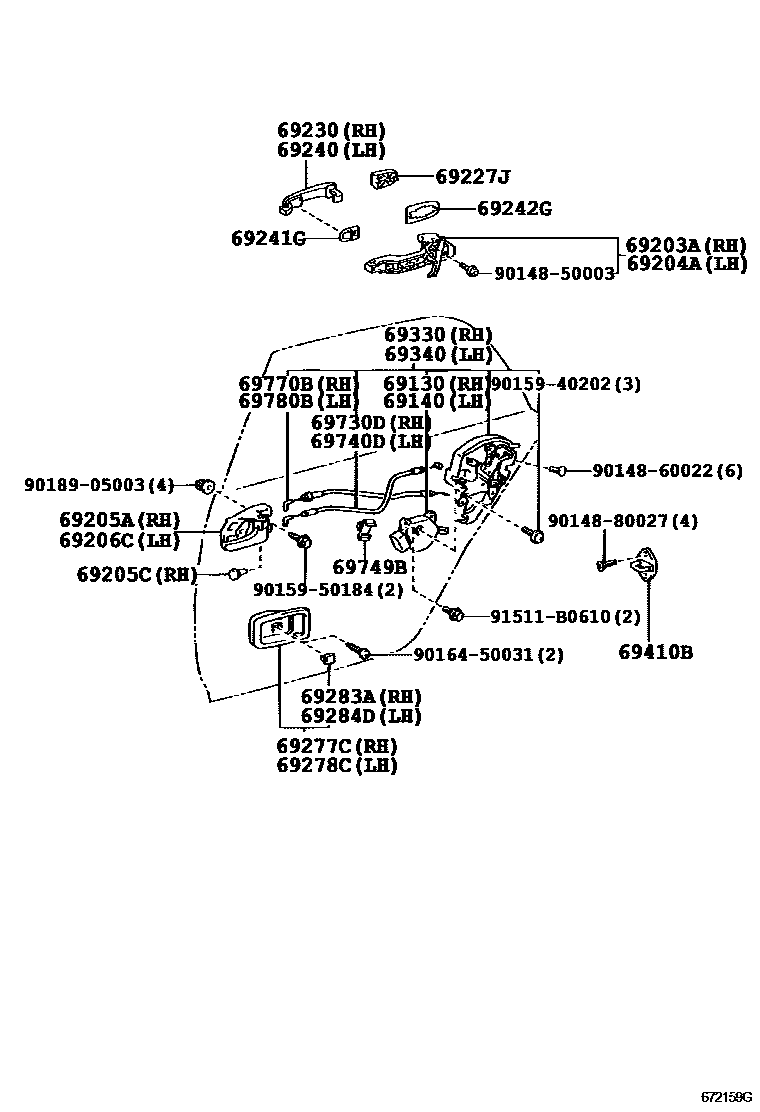

REAR DOOR LOCK & HANDLE
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
SADDLE GRAY,TRIM0#,1#
SADDLE GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM1#,2#
SANDAL WOOD,TRIM0#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
SADDLE GRAY,TRIM1#
SADDLE GRAY,TRIM0#,1#
BLACK,TRIM1#,2#
BLACK,TRIM2#
SANDAL WOOD,TRIM0#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
SADDLE GRAY,TRIM0#,1#
SADDLE GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM1#,2#
SANDAL WOOD,TRIM0#
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
SADDLE GRAY,TRIM0#,1#
SADDLE GRAY,TRIM1#
BLACK,TRIM1#,2#
BLACK,TRIM2#
SANDAL WOOD,TRIM0#
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
SADDLE GRAY,TRIM0#,1#
SADDLE GRAY,TRIM1#
BLACK,TRIM1#,2#
BLACK,TRIM2#
SANDAL WOOD,TRIM0#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
SADDLE GRAY,TRIM1#
SADDLE GRAY,TRIM0#,1#
BLACK,TRIM1#,2#
BLACK,TRIM2#
SANDAL WOOD,TRIM0#
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69749BCLAMP, REAR DOOR LOCK LINK
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9014850003
main90148-50003
9014860022
main90148-60022
9014880027
main90148-80027
9015940202
main90159-40202
9015950184
main90159-50184
9016450031
main90164-50031
9018905003
main90189-05003
91511B0610
main91511-B0610
32 parts on this diagram · 1 diagram in section
