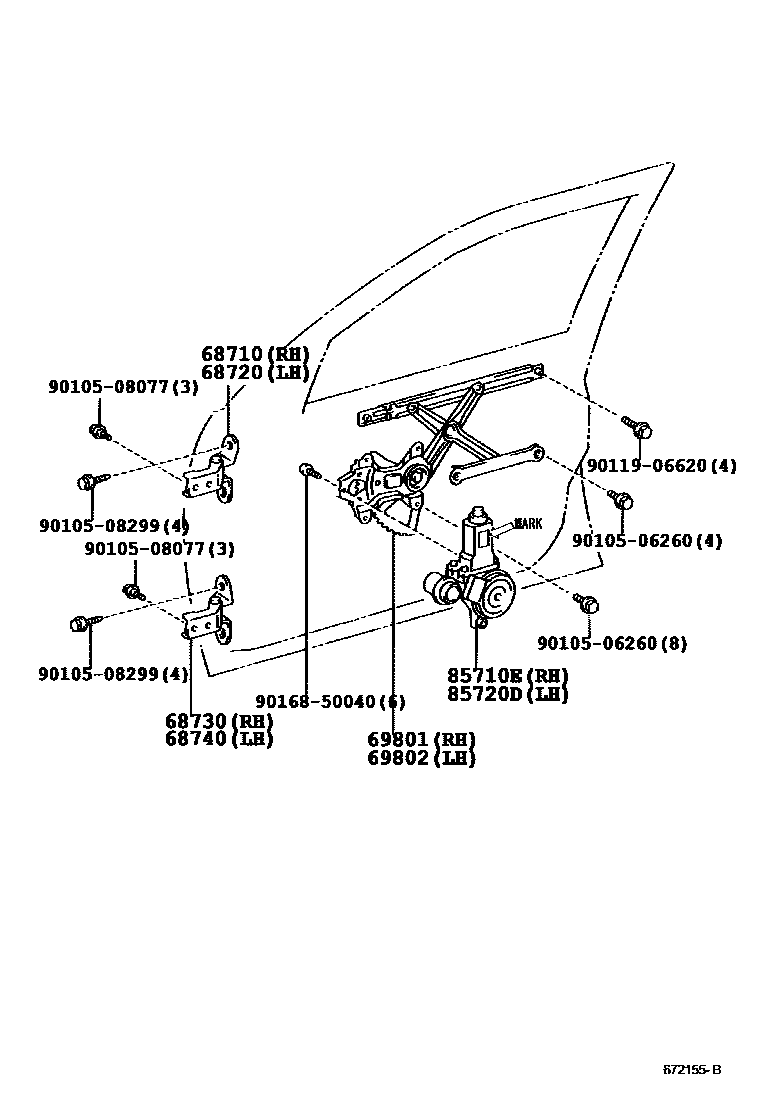

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12150200010-200609

main68710-12151200610-200706

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12150200010-200609

main68720-12151200610-200706

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-12150200010-200609

main68720-12151200610-200706

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-12150200010-200609

main68710-12151200610-200706

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-22180200010-200305

main69801-22181200305-200604

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-22180200010-200305

main69802-22181200305-200604

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-20390200304-200604

main85710-22400200010-200209

main85710-22401200209-200304

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-20410200304-200604

main85720-30270200010-200304

9010506260

main90105-06260

9010508077

main90105-08077

9010508299

main90105-08299

9011906620

main90119-06620

9016850040

main90168-50040

13 parts on this diagram · 1 diagram in section
