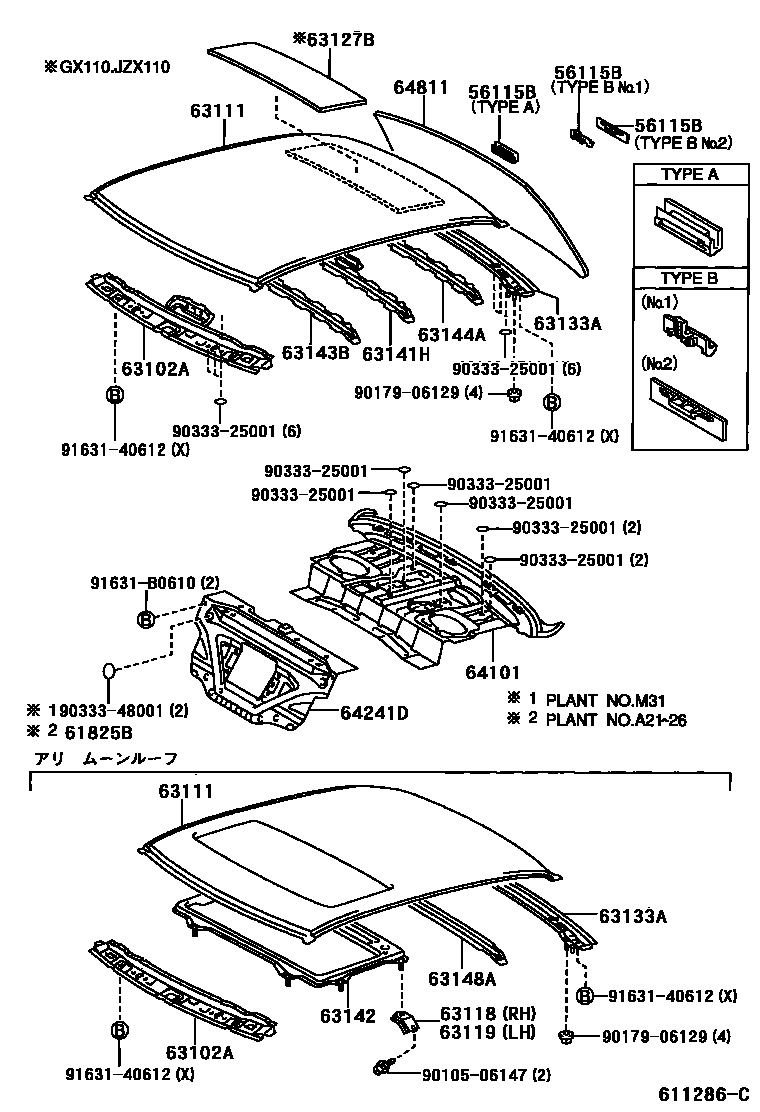

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
61825BPLATE, NOISE CONTROL, NO.2
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63111PANEL, ROOF
63118SUPPORT, ROOF PANEL, RH
63119SUPPORT, ROOF PANEL, LH
63127BDAMPER, BACK WINDOW UPPER FREME
63133AFRAME, BACK WINDOW, UPPER
63141HREINFORCEMENT, ROOF PANEL, CENTER
63142REINFORCEMENT, ROOF PANEL, NO.2
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63148AREINFORCEMENT, ROOF PANEL, NO.7
64101PANEL SUB-ASSY, UPPER BACK
64241DPANEL, ROOM PARTITION
64811GLASS, BACK WINDOW
9010506147
main90105-06147
9017906129
main90179-06129
9033325001
main90333-25001
9033348001
main90333-48001
9163140612
main91631-40612
91631B0610
main91631-B0610
22 parts on this diagram · 4 diagrams in section
