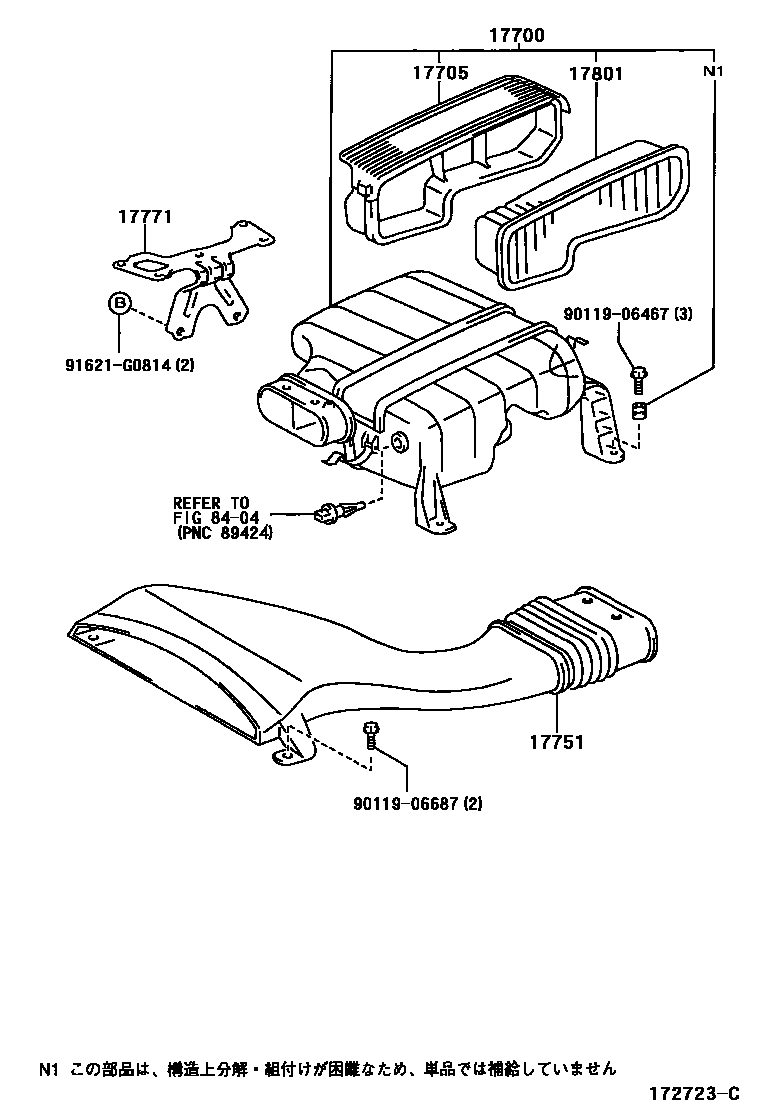

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

17700CLEANER ASSY, AIR

main17700-46460i1JZFSE,1JZGE..JZX11#..SED200010

main17700-46480i1JZGTE..JZX110200010-200604

main17700-70180i1GFE..GX11#..IR200010-200210

17705CAP SUB-ASSY, AIR CLEANER

main17705-46110i1JZGTE..JZX110..GDV200010-200604

main17705-46160i1JZFSE,1JZGE..JZX11#..SED200010

main17705-70080i1GFE..GX11#..GD200010-200210

17751INLET, AIR CLEANER, NO.1

main17751-46150i1JZGE..JZX115..GDG200010

main17751-46160i1JZGTE..JZX110..GDV200010-200604

main17751-46170i1JZFSE..JZX110200010

main17751-70110i1GFE..GX110..IR200010-200210

main17751-70120i1GFE..GX115..GD200010-200210

17771BRACKET, AIR CLEANER INLET DUCT

main17771-46020i1JZFSE,1JZGE..JZX11#200010

main17771-70010i1GFE..GX11#..GD,IR200010-200706

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-46080i1JZGTE..JZX110..GDV200010-200604

main17801-46090i1JZFSE,1JZGE..JZX11#..SED200010

main17801-70050i1GFE..GX11#..GD200010-200210

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9011906467

main90119-06467

9011906687

main90119-06687

91621G0814

main91621-G0814

9 parts on this diagram · 4 diagrams in section
