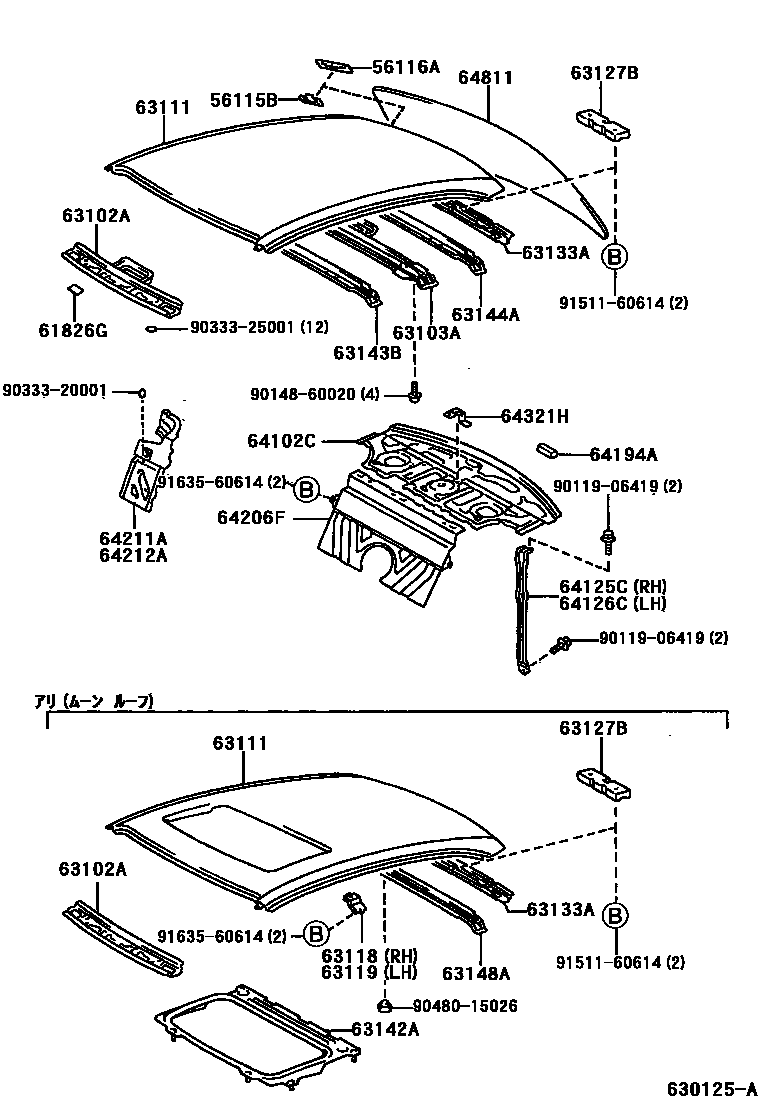

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1��(�-� �-�)

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-22010×2iGX10#,JZX10#,LX100199609

56116ASPACER, WINDSHIELD GLASS

main56116-22050×2iGX10#,JZX10#,LX100199609

61826GPLATE, NOISE CONTROL, NO.3

main61825-12010×4iGX10#,JZX10#,LX100199808

65X90

main61826-22020×4iGX100,JZX10#,LX100199609-199808

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-22250iGX10#,JZX10#,LX100199609

main63102-22260iGX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV199609

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-22140iGX10#,JZX10#,LX100199609

63111PANEL, ROOF

main63111-22280iGX10#,JZX10#,LX100199609

main63111-22290iGX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV199609

63118SUPPORT, ROOF PANEL, RH

main63118-22050iGX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV199609

63119SUPPORT, ROOF PANEL, LH

main63118-22050iGX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV199609

63127BDAMPER, BACK WINDOW UPPER FREME

main63127-22020iGX100,JZX10#,LX100199609-199808

main63127-22021iGX100,JZX100,101,LX100199808

63133AFRAME, BACK WINDOW, UPPER

main63133-22140iGX10#,JZX10#,LX100199609

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63142-22070iGX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV199609

PLANT NO. Q11

main63142-22080iGX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV199609

PLANT NO. M21,M22

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-22140iGX10#,JZX10#,LX100199609

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-22100iGX10#,JZX10#,LX100199609

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-22040iGX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV199609

64102CPANEL SUB-ASSY, UPPER BACK, INNER

main64102-22050iGX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV199609-199808

main64102-22060iGX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV199609-199808

main64102-22900iGX10#,JZX10#,LX100199808

main64102-22901iGX100,JZX100,105,LX100..GD,GDG,TOU,TOUS199609-199808

64125CBRACKET, UPPER BACK PANEL, RH

main64125-22030iGX10#,JZX10#,LX100199609

64126CBRACKET, UPPER BACK PANEL, LH

main64125-22030iGX100,JZX10#,LX100199609-199708

64194APAD, BACK PANEL SILENCER, UPPER

main64194-22010iGX100,JZX10#,LX100199609-199708

64206FPANEL SUB-ASSY, ROOM PARTITION

main64206-22020iGX10#,JZX10#,LX100199609

64211ASTRAINER, PACKAGE TRAY TO FLOOR, RH

main64201-22030iGX10#,JZX10#,LX100199609

64212ASTRAINER, PACKAGE TRAY TO FLOOR, LH

main64202-22030iGX10#,JZX10#,LX100199609

64321HBRACKET, PACKAGE TRAY TRIM

main64321-22020iGX100,JZX100,105,LX100..GD,GDG,GL,TOU,TOUS199609-199808

64811GLASS, BACK WINDOW

main64811-2A270iGX100,JZX10#,LX100199609-199705

main64811-2A271iGX100,JZX10#,LX100199705-199808

main64811-2A290iGX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV199609-199705

main64811-2A291iGX100,JZX10#,LX100..(4FC,5F)..(GD,GDG,TOU,TOUS,TOUV)199705

main64811-2A310iGX100,JZX10#,LX100..GD,GDG199609-199705

main64811-2A311iGX100,JZX10#,LX100..GD,GDG199705-199808

main64811-2A330iGX100,JZX10#,LX100..GD,GDG199609-199705

main64811-2A331iGX100,JZX10#,LX100..GD,GDG199705

main64811-2A450iGX100,JZX100..4FC..GD199808-199904

main64811-2A904iGX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV199609-199702

main64811-2A905iGX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV199609-199702

main64811-2A906iGX100,JZX10#,LX100..GD,GDG199609-199702

main64811-2A907iGX100,JZX10#,LX100..GD,GDG199609-199702

main64811-2A920iGX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV199702-199808

main64811-2A921iGX100,JZX10#,LX100..(4FC,5F)..(GD,GDG,TOU,TOUS,TOUV)199702

main64811-2A922iGX100,JZX10#,LX100..GD,GDG199702-199808

main64811-2A923iGX105199808

main64811-2A930iGX100,JZX100..4FC..GD199808-199904

9011906419

main90119-06419

9014860020

main90148-60020

9033320001

main90333-20001

9033325001

main90333-25001

9048015026

main90480-15026

9151160614

main91511-60614

9163560614

main91635-60614

30 parts on this diagram · 2 diagrams in section
