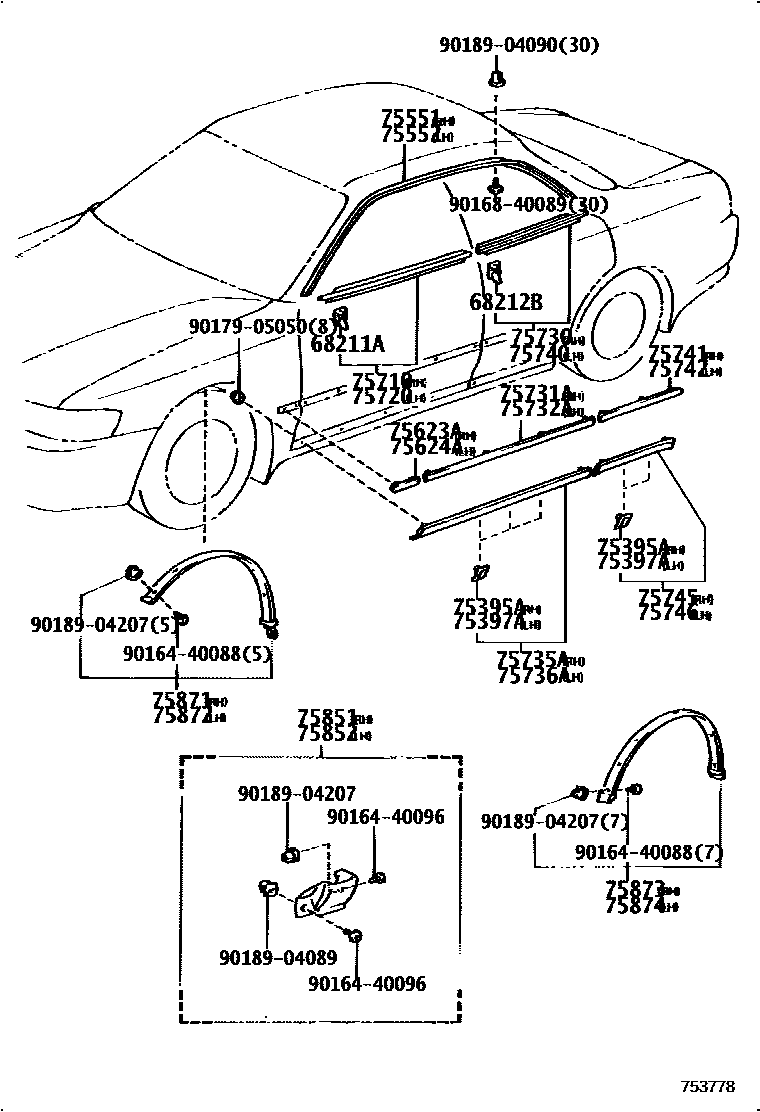

SIDE MOULDING

68211ACLIP, DOOR BELT MOULDING

main68211-22180×12iGX90,JZX9#,LX90,SX90199210-199609

68212BCLIP, REAR DOOR GLASS WEATHERSTRIP

main68211-22180×8iGX90,JZX9#,LX90,SX90199210-199609

75395ACLIP, OUTSIDE MOULDING, NO.1

main75395-22120×5iGX90,JZX9#,LX90,SX90199210-199609

75397ACLIP, OUTSIDE MOULDING, NO.3

main75395-22120×5iGX90,JZX9#,LX90,SX90199210-199609

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75505-22090iGX90,JZX9#,LX90,SX90199210-199609

main75505-22100iGX90,JZX9#,LX90,SX90199210-199609

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75506-22090iGX90,JZX9#,LX90,SX90199210-199609

main75506-22100iGX90,JZX9#,LX90,SX90199210-199609

75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH

main75623-22320-A0iGX90,JZX9#,LX90,SX90199210-199609

SUPER WHITE 2,040

main75623-22320-A1iJZX9#199210-199310

WARM GRAY PM,046

main75623-22320-A2iJZX90..GD199310-199312

main75623-22320-A3iGX90..ATM199604-199609

main75623-22320-B0iGX90,JZX9#,LX90,SX90199210-199409

DK.BL.GRAY ME,183

main75623-22320-B1iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199409-199609

SILVER ME,199

main75623-22320-E0iGX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO199210-199609

FLAXEN MM,4M7

main75623-22320-E1iGX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO199409-199609

DK.BROWN MC.,4N2

main75623-22320-G0iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199210-199409

DK.GRAYISH OLIVE ME,6M7

main75623-22320-G1iJZX9#199210-199310

DK.GREEN MIO,6N2

main75623-22320-G2iGX90..ATM199504-199603

main75623-22320-H0iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199310-199509

DK.TURQUOISE.MC,742

75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH

main75624-22320-A0iGX90,JZX9#,LX90,SX90199210-199609

SUPER WHITE 2,040

main75624-22320-A1iJZX9#199210-199310

WARM GRAY PM,046

main75624-22320-A2iJZX90..GD199310-199312

main75624-22320-A3iGX90..ATM199604-199609

main75624-22320-B0iGX90,JZX9#,LX90,SX90199210-199409

DK.BL.GRAY ME,183

main75624-22320-B1iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199409-199609

SILVER ME,199

main75624-22320-E0iGX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO199210-199609

FLAXEN MM,4M7

main75624-22320-E1iGX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO199409-199609

DK.BROWN MC.,4N2

main75624-22320-G0iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199210-199409

DK.GRAYISH OLIVE,6M7

main75624-22320-G1iJZX9#199210-199310

DK.GREEN MIO,6N2

main75624-22320-G2iGX90..ATM199504-199603

main75624-22320-H0iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199310-199509

DK.TURQUOISE.MC,742

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-22310iGX90,JZX9#,LX90,SX90199210-199609

main75710-22320iGX90,JZX9#,LX90,SX90199210-199609

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-22300iGX90,JZX9#,LX90,SX90199210-199609

main75720-22310iGX90,JZX9#,LX90,SX90199210-199609

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-22190iGX90,JZX9#,LX90,SX90199210-199609

main75730-22200iGX90,JZX9#,LX90,SX90199210-199609

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-22550-A0iGX90,JZX9#,LX90,SX90199210-199609

SUPER WHITE 2,040

main75731-22550-A1iJZX9#199210-199310

WARM GRAY PM,046

main75731-22550-A2iJZX90..GD199310-199312

main75731-22550-A3iGX90..ATM199604-199609

main75731-22550-B0iGX90,JZX9#,LX90,SX90199210-199409

DK.BL.GRAY ME,183

main75731-22550-B1iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199409-199609

SILVER ME,199

main75731-22550-E0iGX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO199210-199609

FLAXEN MM,4M7

main75731-22550-E1iGX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO199409-199609

DK.BROWN MC.,4N2

main75731-22550-G0iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199210-199409

DK.GRAYISH OLIVE,6M7

main75731-22550-G1iJZX9#199210-199310

DK.GREEN MIO,6N2

main75731-22550-G2iGX90..ATM199504-199603

main75731-22550-H0iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199310-199509

DK.TURQUOISE.MC,742

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-22550-A0iGX90,JZX9#,LX90,SX90199210-199609

SUPER WHITE 2,040

main75732-22550-A1iJZX9#199210-199310

WARM GRAY PM,046

main75732-22550-A2iJZX90..GD199310-199312

main75732-22550-A3iGX90..ATM199604-199609

main75732-22550-B0iGX90,JZX9#,LX90,SX90199210-199409

DK.BL.GRAY ME,183

main75732-22550-B1iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199409-199609

SILVER ME,199

main75732-22550-E0iGX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO199210-199609

FLAXEN MM,4M7

main75732-22550-E1iGX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO199409-199609

DK.BROWN MC.,4N2

main75732-22550-G0iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199210-199409

DK.GRAYISH OLIVE,6M7

main75732-22550-G1iJZX9#199210-199310

DK.GREEN MIO,6N2

main75732-22550-G2iGX90..ATM199504-199603

main75732-22550-H0iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199310-199509

DK.TURQUOISE.MC,742

75735AMOULDING, FRONT DOOR OUTSIDE, LOWER RH

main75735-22040iGX90,JZX9#,LX90,SX90199210-199404

main75735-22041iGX90,JZX9#,LX90,SX90199404-199609

75736AMOULDING, FRONT DOOR OUTSIDE, LOWER LH

main75736-22040iGX90,JZX9#,LX90,SX90199210-199404

main75736-22041iGX90,JZX9#,LX90,SX90199404-199609

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-22170iGX90,JZX9#,LX90,SX90199210-199609

main75740-22180iGX90,JZX9#,LX90,SX90199210-199609

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-22720-A0iGX90,JZX9#,LX90,SX90199210-199609

SUPER WHITE 2,040

main75741-22720-A1iJZX9#199210-199310

WARM GRAY PM,046

main75741-22720-A2iJZX90..GD199310-199312

main75741-22720-A3iGX90..ATM199604-199609

main75741-22720-B0iGX90,JZX9#,LX90,SX90199210-199409

DK.BL.GRAY ME,183

main75741-22720-B1iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199409-199609

SILVER ME,199

main75741-22720-E0iGX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO199210-199609

FLAXEN MM,4M7

main75741-22720-E1iGX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO199409-199609

DK.BROWN MC.,4N2

main75741-22720-G0iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199210-199409

DK.GRAYISH OLIVE,6M7

main75741-22720-G1iJZX9#199210-199310

DK.GREEN MIO,6N2

main75741-22720-G2iGX90..ATM199504-199603

main75741-22720-H0iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199310-199509

DK.TURQUOISE.MC,742

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-22710-A0iGX90,JZX9#,LX90,SX90199210-199609

SUPER WHITE 2,040

main75742-22710-A1iJZX9#199210-199310

WARM GRAY PM,046

main75742-22710-A2iJZX90..GD199310-199312

main75742-22710-A3iGX90..ATM199604-199609

main75742-22710-B0iGX90,JZX9#,LX90,SX90199210-199409

DK.BL.GRAY ME,183

main75742-22710-B1iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199409-199609

SILVER ME,199

main75742-22710-E0iGX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO199210-199609

FLAXEN MM,4M7

main75742-22710-E1iGX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO199409-199609

DK.BROWN MC.,4N2

main75742-22710-G0iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199210-199409

DK.GRAYISH OLIVE,6M7

main75742-22710-G1iJZX9#199210-199310

DK.GREEN MIO,6N2

main75742-22710-G2iGX90..ATM199504-199603

main75742-22710-H0iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199310-199509

DK.TURQUOISE.MC,742

75745MOULDING, REAR DOOR OUTSIDE, LOWER RH

main75745-22020iGX90,JZX9#,LX90,SX90199210-199404

main75745-22021iGX90,JZX9#,LX90,SX90199404-199609

75746MOULDING, REAR DOOR OUTSIDE, LOWER LH

main75746-22020iGX90,JZX9#,LX90,SX90199210-199404

main75746-22021iGX90,JZX9#,LX90,SX90199404-199609

75851MOULDING, ROCKER PANEL, RH

main75851-29055iGX90,JZX9#,LX90,SX90199210-199609

75852MOULDING, ROCKER PANEL, LH

main75852-29045iGX90,JZX9#,LX90,SX90199210-199609

75871MOULDING, FRONT FENDER WHEEL OPENING, RH

main75871-29425iGX90,JZX9#,LX90,SX90199210-199609

75872MOULDING, FRONT FENDER WHEEL OPENING, LH

main75872-29425iGX90,JZX9#,LX90,SX90199210-199609

75873MOULDING, QUARTER PANEL WHEEL OPENING, RH

main75873-29195iGX90,JZX9#,LX90,SX90199210-199609

75874MOULDING, QUARTER PANEL WHEEL OPENING, LH

main75874-29195iGX90,JZX9#,LX90,SX90199210-199609

9016440088

main90164-40088

9016440096

main90164-40096

9016840089

main90168-40089

9017905050

main90179-05050

9018904089

main90189-04089

9018904090

main90189-04090

9018904207

main90189-04207

33 parts on this diagram · 1 diagram in section
