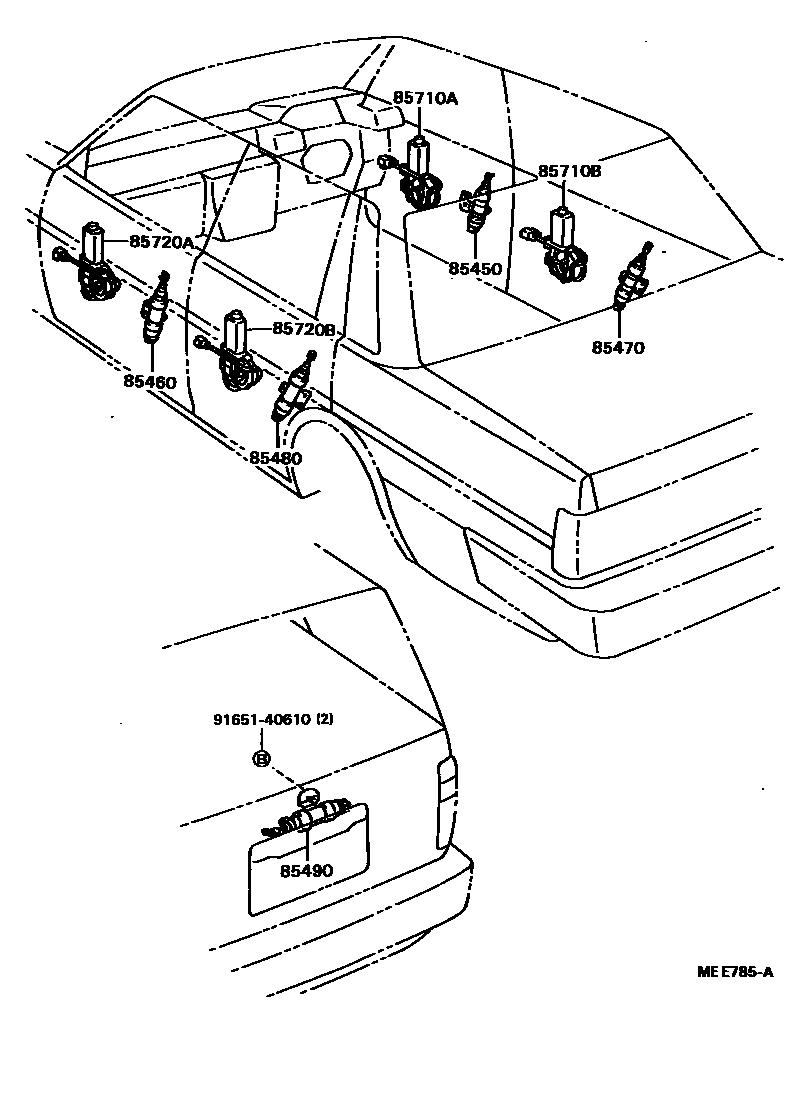

DOOR MOTOR & DOOR SOLENOID

85450SOLENOID ASSY, DOOR CONTROL, FRONT RH

main85450-22400iGX7#,LX70,SX70..GR,LG198408-198808

main85450-22440iGX71,MX71..GD,GT198408-198808

85460SOLENOID ASSY, DOOR CONTROL, FRONT LH

main85450-22410iGX7#,LX70,SX70..GR,LG198408-198808

main85450-22450iGX71,MX71..GD,GT198408-198808

85470SOLENOID ASSY, DOOR CONTROL, REAR RH

main85450-22420iGX71,LX70,SX70..SED..(GR,LG)198408-198409

main85450-22421iGX7#,LX70,SX70..(SED,WG)..(GR,LG)198409-198808

main85450-22460iGX71,MX71..SED..GD198408-198409

main85450-22461iGX71,MX71..SED..GD198409-198808

main85450-22520iGX71,MX71..HT..(GD,GT)198408-198808

main85450-22540iGX71,SX70..HT..(GR,LG)198408-198808

85480SOLENOID ASSY, DOOR CONTROL, REAR LH

main85450-22430iGX71,LX70,SX70..SED..(GR,LG)198408-198409

main85450-22431iGX7#,LX70,SX70..(SED,WG)..(GR,LG)198409-198808

main85450-22470iGX71,MX71..SED..GD198408-198409

main85450-22471iGX71,MX71..SED..GD198409-198808

main85450-22530iGX71,MX71..HT..(GD,GT)198408-198808

main85450-22550iGX71,SX70..HT..(GR,LG)198408-198808

85490SOLENOID ASSY, DOOR CONTROL BACK

main85450-22560iGX70,YX76..GL,LG198411-198808

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85710-22180iGX7#,LX70,SX70..GD,GR,GT,LG198608-198808

main85720-22130iGX7#,LX70,MX71,SX70..GD,GR,GT,LG198408-198608

DENSO

main85720-22150iGX71,LX70,MX71,SX70..GD,GR,LG198408-198411

MATSUSHITA

85710BMOTOR ASSY, POWER WINDOW REGULATOR, REAR RH

main85710-22190iGX7#,LX70,SX70..GD,GR,GT,LG198608-198808

main85720-22140iGX7#,LX70,MX71,SX70..GD,GR,GT,LG198408-198608

DENSO

main85720-22160iGX71,LX70,MX71,SX70..GD,GR,LG198408-198411

MATSUSHITA

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85710-22140iGX7#,LX70,MX71,SX70..GD,GR,GT,LG198408-198608

DENSO

main85710-22160iGX71,LX70,MX71,SX70..GD,GR,LG198408-198411

MATSUSHITA

main85720-22170iGX7#,LX70,SX70..GD,GR,GT,LG198608-198808

85720BMOTOR ASSY, POWER WINDOW REGULATOR, REAR LH

main85710-22150iGX7#,LX70,MX71,SX70..GD,GR,GT,LG198408-198608

DENSO

main85710-22170iGX71,LX70,MX71,SX70..GD,GR,LG198408-198411

MATSUSHITA

main85720-22180iGX7#,LX70,SX70..GD,GR,GT,LG198608-198808

9165140610

main91651-40610

10 parts on this diagram · 1 diagram in section
