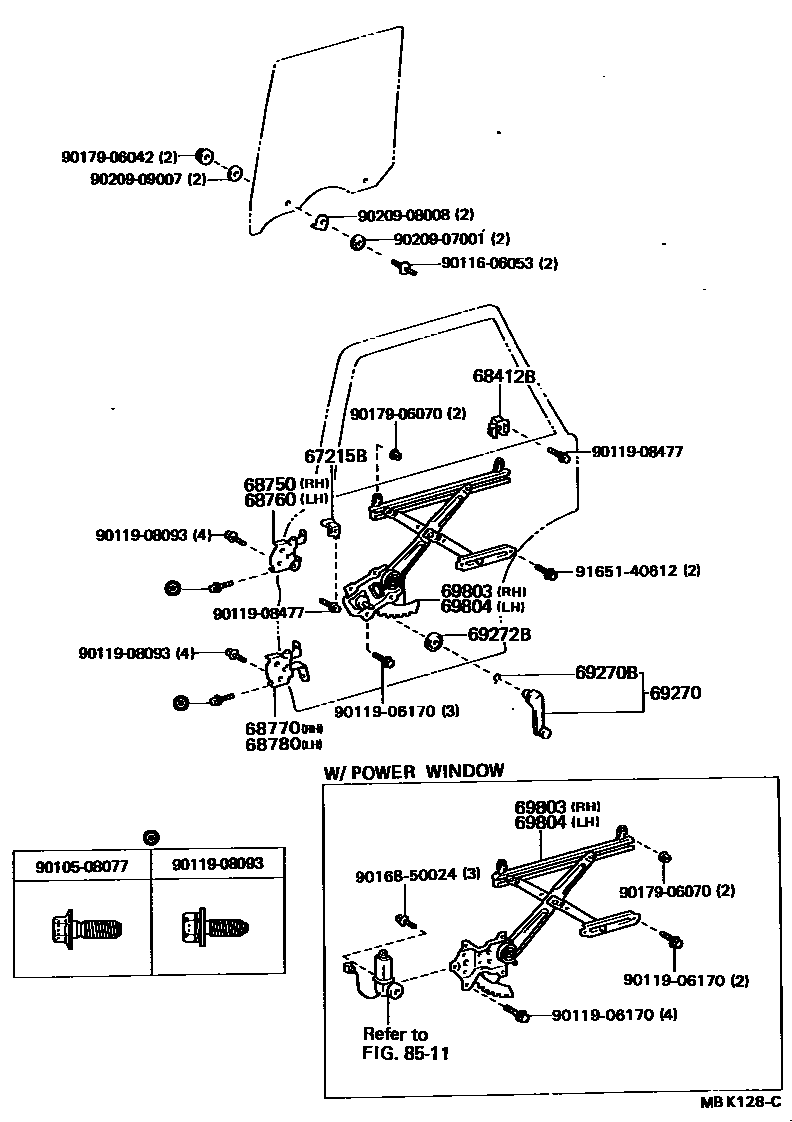

REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1 0003 1

67215BSTOP, REAR DOOR WINDOW, UPPER

main67215-22020×2iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

68412BSTOP SUB-ASSY, DOOR WINDOW, UPPER

main67211-30040×4iGX71,MX71,SX70..HT198408-198808

main67212-22010×2iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20050iGX71,MX71,SX70..HT198408-198808

main68750-32010iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20040iGX71,MX71,SX70..HT198408-198808

main68760-32010iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-20040iGX71,MX71,SX70..HT198408-198808

main68770-32010iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-20040iGX71,MX71,SX70..HT198408-198808

main68780-32010iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198808

69270HANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-22030-02×2iLX70,SX70..GR198408-198504

MAROON,MAROON,TRIM3#

main69260-22030-03×2iGX71,LX7#,SX70,YX7#..DX,GL,GR,KYO,LS,STD198408-198508

GRAY,COOL GRAY,TRIM1#

main69260-22030-05×2iGX71,LX7#,SX70,YX7#..DX,GL,GR,LS198408-198504

BEIGE,BEIGE,TRIM4#

main69260-22030-14×2iGX70; GX71,LX7#,SX70,YX7#..DX,GL,KYO,LS,STD198608-198808

BLUE,DARK BLUE,TRIM8#

main69260-22030-15×2iGX70; GX71,LX7#,SX70,YX7#..DX,GL,LS198608-198808

BEIGE,DARK BEIGE,TRIM4#

main69260-22030-22×2iGX70198608-198808

MAROON,MAROON,TRIM3#

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iGX70198411-198808

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69285-22010-08×2iGX71,LX7#,SX70,YX7#..DX,GL,GR,KYO,LS,STD198408-198508

NATURAL,NATURAL WHITE

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-22080iGX7#,MX71..(SED,WG)..(GD,LG); LX70,SX70..SED..GR198408-198808

W/POWER WINDOW

main69803-22100iGX71,MX71,SX70..HT198408-198808

main69830-22120iGX70198411-198808

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-22080iGX7#,MX71..(SED,WG)..(GD,LG); LX70,SX70..SED..GR198408-198808

W/POWER WINDOW

main69804-22100iGX71,MX71,SX70..HT198408-198808

main69840-22120iGX71,LX7#,SX70,YX7#..DX,GL,GR,KYO,LS,STD198408-198508

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010508077

main90105-08077

9011606053

main90116-06053

9011906170

main90119-06170

9011908093

main90119-08093

9011908477

main90119-08477

9016850024

main90168-50024

9017906042

main90179-06042

9017906070

main90179-06070

9020907001

main90209-07001

9020908008

main90209-08008

9020909007

main90209-09007

9165140612

main91651-40612

24 parts on this diagram · 3 diagrams in section
