51401BBRACKET SUB-ASSY, ENGINE FRONT MOUNTING

main51401-12020i200911-201308

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-12020i200911-201308

51681BPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

main51681-12080i200911-201405

51682DPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-12080i200911-201405

51963FHOOK, TRANSPORT

main51963-12250i200911-201308

51964FHOOK, TRANSPORT, LH

main51964-12040i200911-201308

51968DHOOK, TRANSPORT, REAR LH

main51968-12180i200911-201308

5701HOLE PLUG

→ Go to FIG 57-01

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-12110i200911-201308

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-12070i200911-201308

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-12010i200911-201308

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-12020i200911-201308

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-12010i200911-201308

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-12010i200911-201308

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-12010i200911-201308

57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH

main57034-12010i200911-201308

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-12160i200911-201308

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-12150i200911-201308

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-12120i200911-201308

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-12140i200911-201308

57111MEMBER, FRONT SIDE, RH

main57111-12230i200911-201308

57112MEMBER, FRONT SIDE, LH

main57112-12190i200911-201308

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-12220i200911-201308

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-12190i200911-201406

main57114-12191i201407

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-12090i200911-201405

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-12090i200911-201312

main57116-12091i201401-201405

57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH

main57188-12030i200911-201308

57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH

main57189-12010i200911-201308

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-12070i200911-201308

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-12060i200911-201308

57197BOX, TORQUE, FRONT RH

main57197-12040i200911-201308

57198BOX, TORQUE, FRONT LH

main57198-12040i200911-201308

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-47050i200911-201802

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-47070i200911-201802

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-12A10i200911-201308

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-12A10i200911-201308

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-75010i200911-201308

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-12080i200911-201308

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-12321i200911-201307

main57605-76010i201308

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-75011i200911-201308

57654CMEMBER, REAR FLOOR CROSS, NO.3

main57654-72010i200911-201308

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9046706082

main90467-06082

91553L1025

main91553-L1025

91645C1232

main91645-C1232

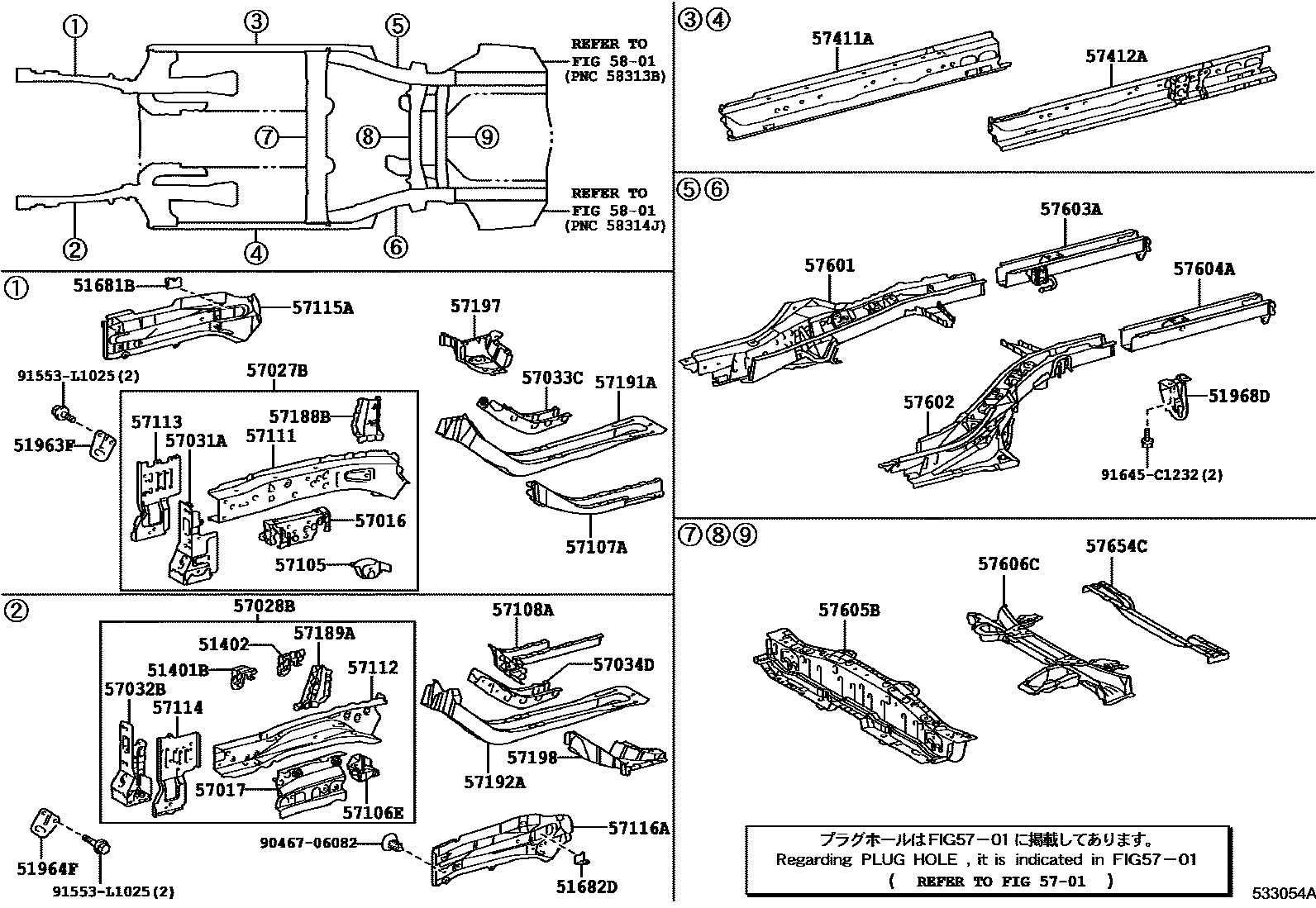

FLOOR SIDE MEMBER
