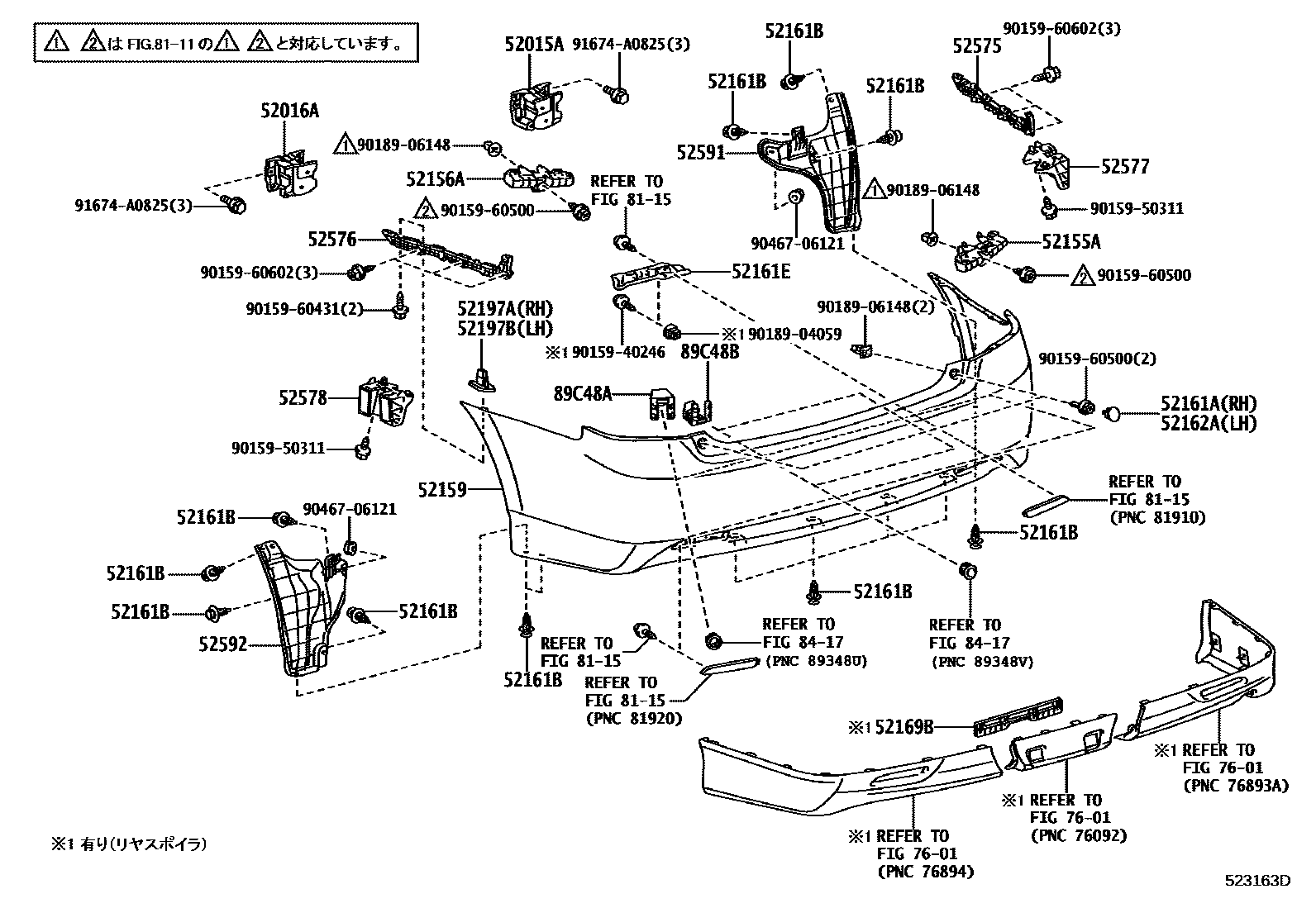

REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52016AARM SUB-ASSY, REAR BUMPER, LH
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
AQUA M.M.,782
DK.BLUE MC.,8S6
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
AQUA M.M.,782
DK.BLUE MC.,8S6
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY M.M.,1H1
BLACK,202
SPARKLING BLACK PEARL CS.,220
RED M.M.,3R3
CLEAR STREAM ME.,787
DK.BLUE MC.,8S6
52161APIECE, REAR BUMPER, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
AQUA M.M.,782
DK.BLUE MC.,8S6
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY M.M.,1H1
BLACK,202
SPARKLING BLACK PEARL CS.,220
RED M.M.,3R3
CLEAR STREAM ME.,787
DK.BLUE MC.,8S6
52161BPIECE, REAR BUMPER
52161EEXTENSION, REAR BUMPER SIDE, RH
52162APIECE, REAR BUMPER, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
AQUA M.M.,782
DK.BLUE MC.,8S6
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY M.M.,1H1
BLACK,202
SPARKLING BLACK PEARL CS.,220
RED M.M.,3R3
CLEAR STREAM ME.,787
DK.BLUE MC.,8S6
52169BBRACKET, REAR BUMPER, CENTER
52197ABRACKET, REAR BUMPER SEAL, RH
52197BBRACKET, REAR BUMPER SEAL, LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52577RETAINER, REAR BUMPER SIDE, NO.2 RH
52578RETAINER, REAR BUMPER SIDE, NO.2 LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
7601MUDGUARD & SPOILER
8115REFLEX REFLECTOR
8417CLEARANCE & BACK SONAR
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
9015940246
main90159-40246
9015950311
main90159-50311
9015960431
main90159-60431
9015960500
main90159-60500
9015960602
main90159-60602
9018904059
main90189-04059
9018906148
main90189-06148
9046706121
main90467-06121
91674A0825
main91674-A0825
32 parts on this diagram · 2 diagrams in section
