MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM06,2#
DK.BROWN,TRIM05,06,07
BLACK,TRIM06,2#
DK.BROWN,TRIM05,07
BLACK,TRIM06,2#
DK.BROWN,TRIM05
BLACK,TRIM06,2#
DK.BROWN,TRIM05,07
58520CCLIP(FOR FRONT FLOOR CARPET)
BLACK
BLACK
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
BLACK
BLACK
58561CSILENCER, FRONT FLOOR, NO.1
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK
9046710208
main90467-10208
9046711122
main90467-11122

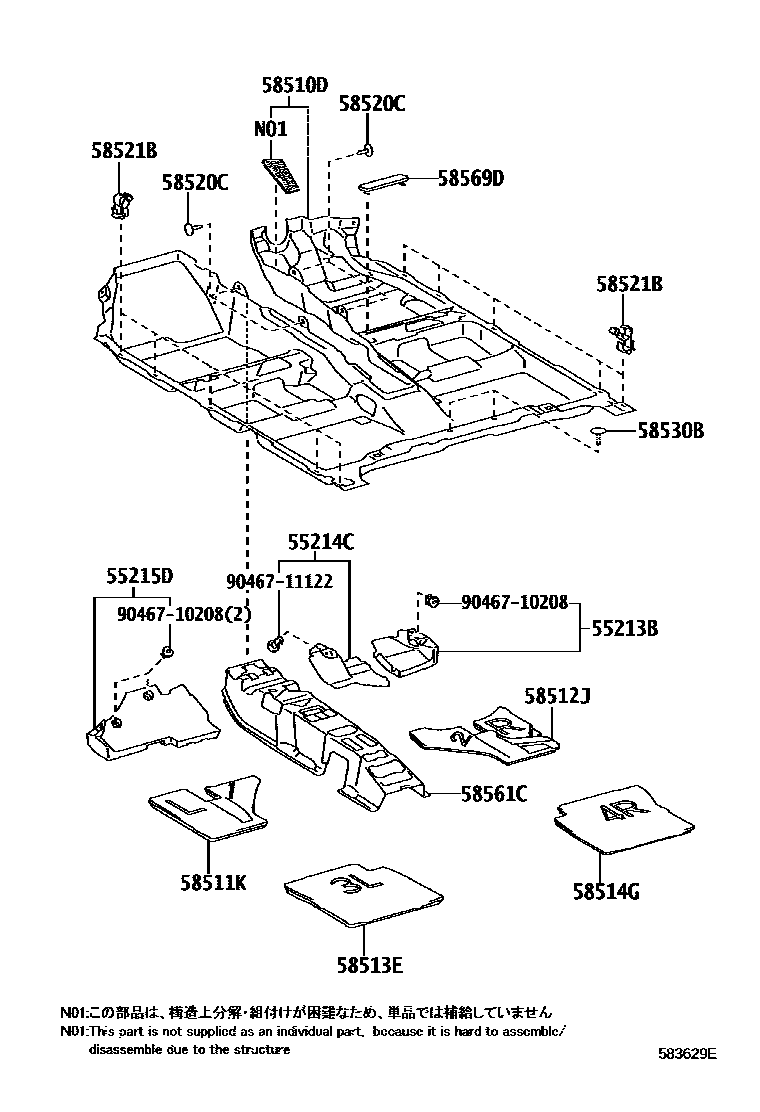

15 parts on this diagram · 2 diagrams in section
