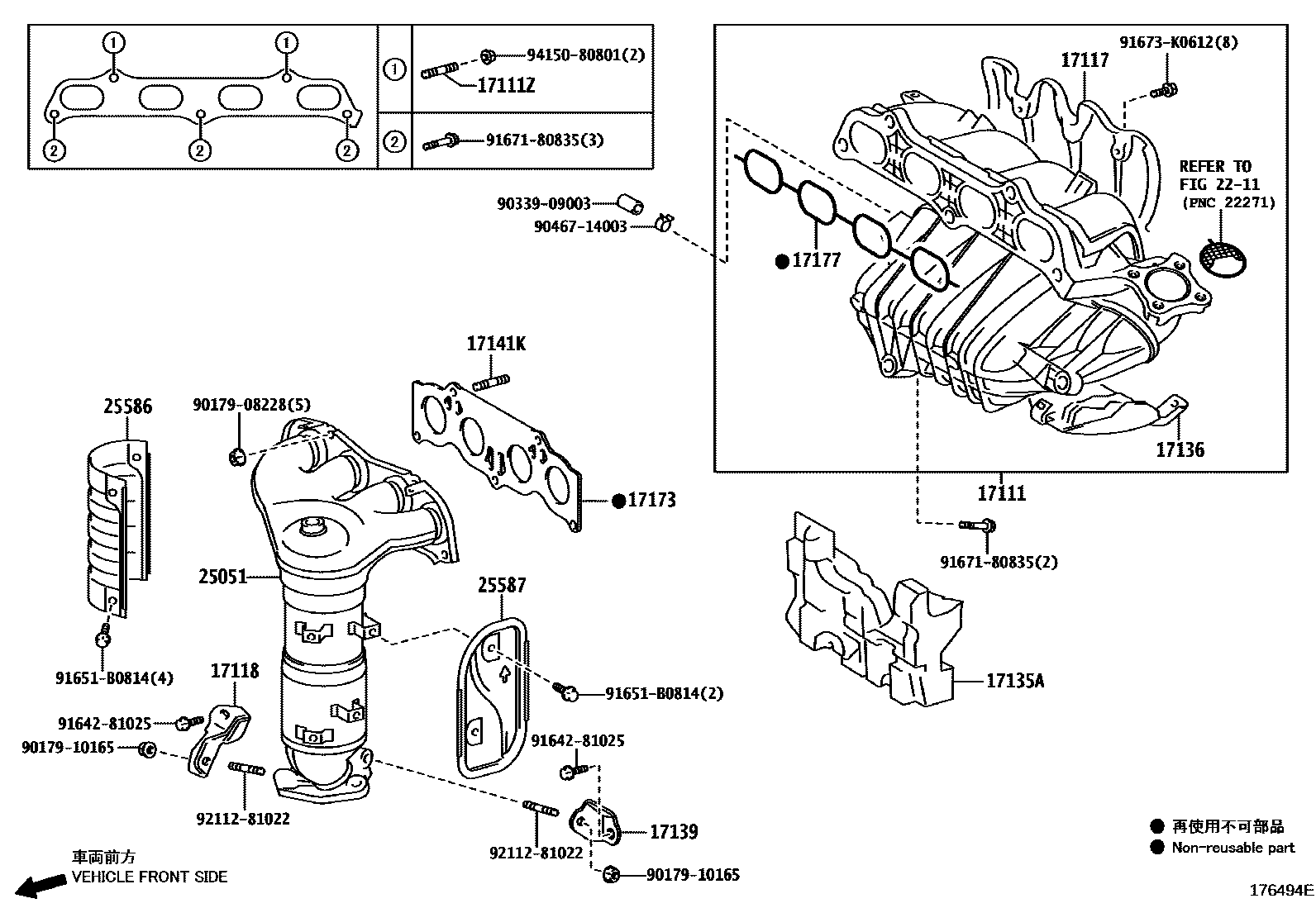

MANIFOLD

17111MANIFOLD, INTAKE

main17120-28140i2AZFXE..ANF10200907-201112

main17120-28141i2AZFXE..ANF10201201-201301

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i2AZFXE..ANF10200907-201301

17117INSULATOR, INTAKE PIPE

main17117-28040i2AZFXE..ANF10200907-201301

17118STAY, MANIFOLD

main17118-28020i2AZFXE..ANF10200907-201301

17135AINSULATOR, INTAKE MANIFOLD, NO.1

main17135-28011i2AZFXE..ANF10200907-201301

17136INSULATOR, INTAKE MANIFOLD, NO.2

main17136-28020i2AZFXE..ANF10200907-201301

17139STAY, MANIFOLD, NO.2

main17139-28050i2AZFXE..ANF10200907-201301

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-08037×5i2AZFXE..ANF10200907-201301

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-28010i2AZFXE..ANF10200907-201301

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-28010i2AZFXE..ANF10200907-201112

main17177-28031i2AZFXE..ANF10201201-201301

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-28320i2AZFXE..ANF10200907-201301

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-28110i2AZFXE..ANF10200907-201301

25587INSULATOR, MANIFOLD CONVERTER, NO.2

main25587-28030i2AZFXE..ANF10200907-201301

9017908228

main90179-08228

9017910165

main90179-10165

9033909003

main90339-09003

9046714003

main90467-14003

9164281025

main91642-81025

91651B0814

main91651-B0814

9167180835

main91671-80835

91673K0612

main91673-K0612

9211281022

main92112-81022

9415080801

main94150-80801

24 parts on this diagram · 1 diagram in section
