CRANKSHAFT & PISTON

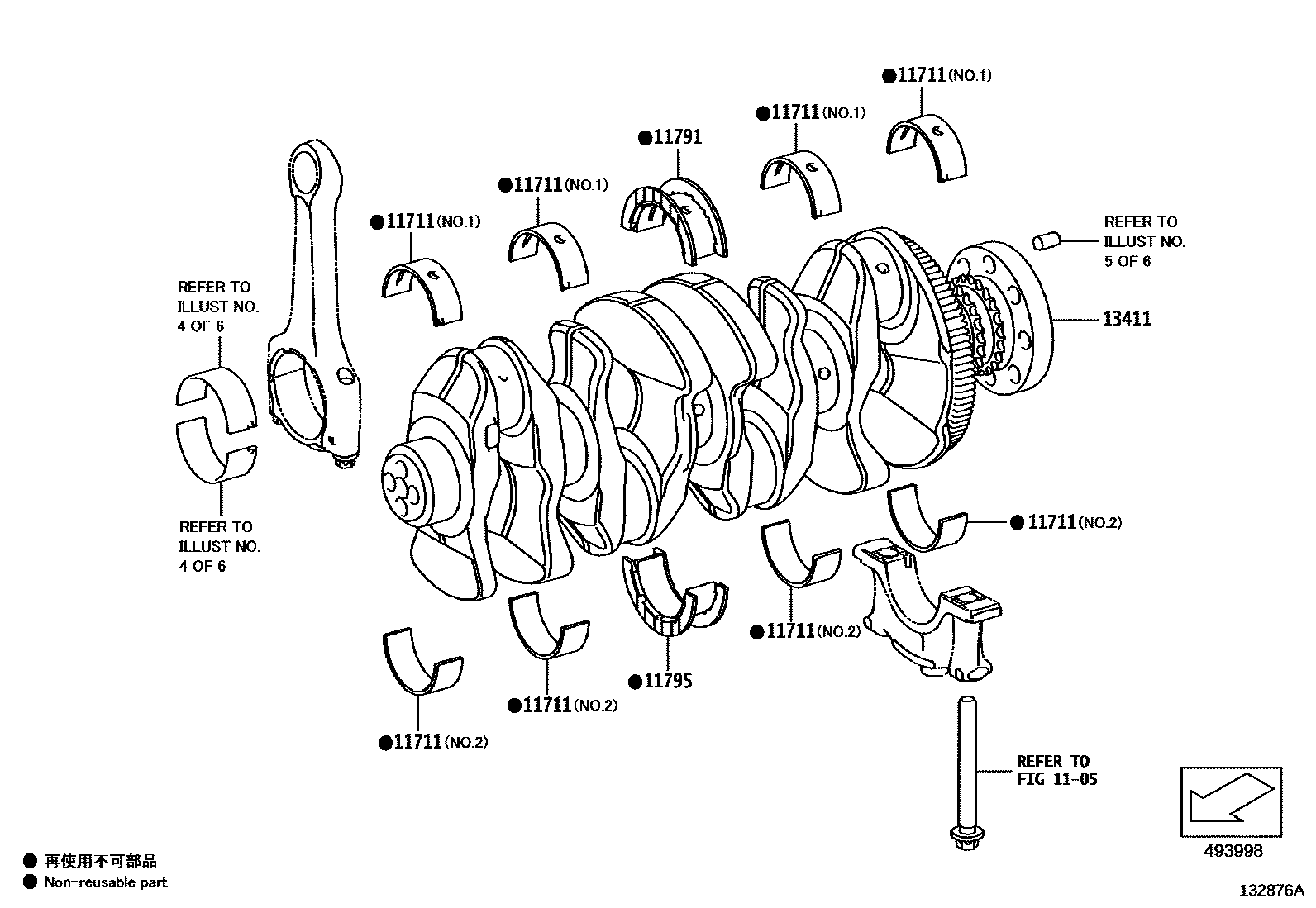

Parts diagram

1105CYLINDER BLOCK

→ Go to FIG 11-05

11711BEARING, CRANKSHAFT

main11711-WAA01×6i202007-202104

main11711-WAA02×6i202007-202104

main11711-WAA03×6i201903-202002

main11711-WAA04×4i201903-201905

main11711-WAA05×4i201903-201905

main11711-WAA06×4i201903-201905

main11711-WAA07×4i201906

main11711-WAA08×4i201906

main11711-WAA09×4i201906

main11711-WAA10×6i202105

main11711-WAA11×6i202105

main11711-WAA12×6i202105

main11721-WAA01×4i201903-201905

main11721-WAA02×4i201903-201905

main11721-WAA03×4i201903-201905

main11721-WAA04×6i201903-202002

main11721-WAA05×6i201903-202002

main11721-WAA06×6i202007

main11721-WAA07×6i201903-202002

main11721-WAA08×4i201906

main11721-WAA09×4i201906

main11721-WAA10×4i201906

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-WAA01i201903-201905

main11791-WAA02i201903-201905

main11791-WAA03i201903-201905

main11791-WAA04i202007-202104

main11791-WAA05i201903-202002

main11791-WAA06i201903-202002

main11791-WAA07i201905

main11791-WAA08i201905

main11791-WAA09i201905

main11791-WAA10i202105

main11791-WAA11i202105

main11791-WAA12i202105

11795WASHER, CRANKSHAFT THRUST, LOWER

main11795-WAA01i201903-201905

main11795-WAA02i201903-201905

main11795-WAA03i201903-201905

main11795-WAA04i202007

main11795-WAA05i201903-202002

main11795-WAA06i201903-202002

main11795-WAA07i201905

main11795-WAA08i201905

main11795-WAA09i201905

13411CRANKSHAFT

main13401-WAA02i201903-202002

main13401-WAA03i201903

5 parts on this diagram · 10 diagrams in section
