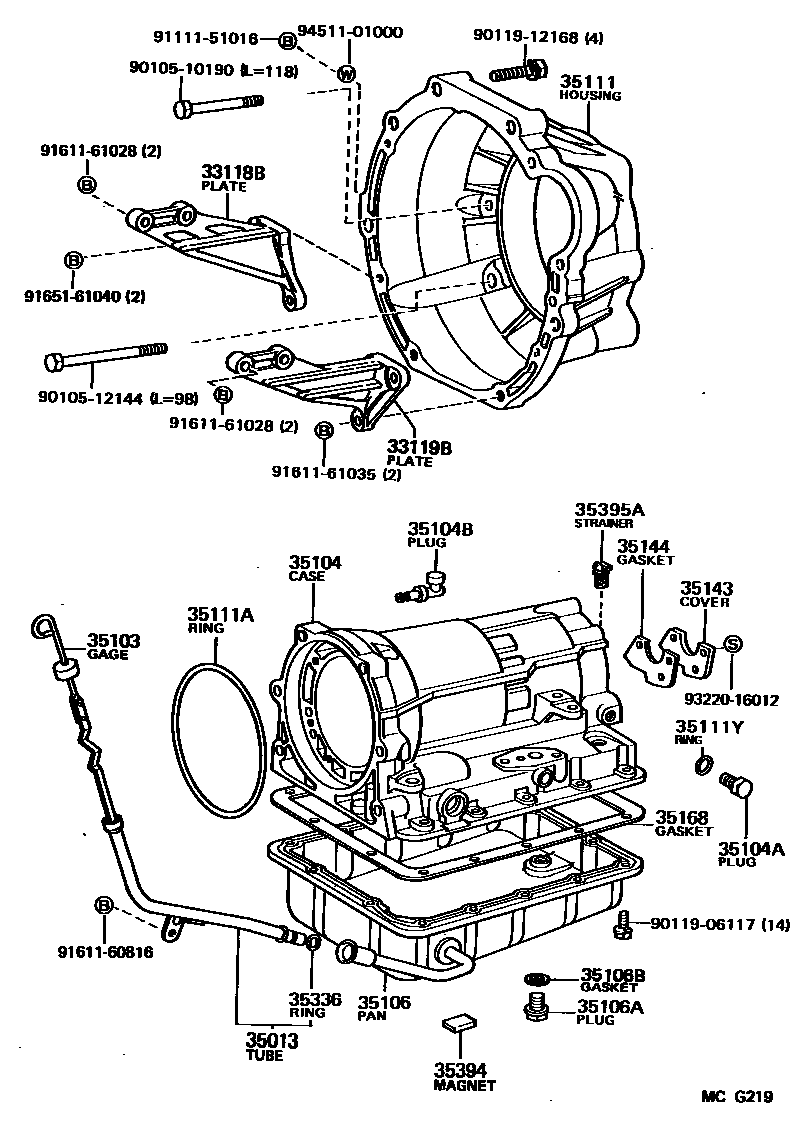

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A42DL 0002 1A340E 0003 1A342E

33118BPLATE, STIFFENER, RH(ATM)

main33118-14050iMA70..4FC198808-198812

main33118-14051iMA70..4FC198812-199008

main33118-22051iGA70..4FC198808-199305

33119BPLATE, STIFFENER, LH(ATM)

main33119-22030iMA70..4FC198808-199008

main33119-22042iGA70..4FC198808-199305

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-14140iJZA70..4FC199008-199305

main35013-30220iGA70..4FC..(G,GT)198808-199305

main35013-30230iMA70..4FC198808-199008

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-14090iJZA70..4FC199008-199305

main35103-22140iGA70..4FC..GTT198808-199305

main35103-30250iGA70..4FC..G198808-199008

main35103-30260iGA70..4FC..GT198808-199305

main35103-30270iMA70..4FC198808-199008

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-26021iGA70..4FC..G198808-199008

main35104-30133iGA70,MA70..4FC..(GT,GTL,GTT)198808-199305

main35104-30170iJZA70..4FC199110-199305

main35104-50012iJZA70..4FC199008-199110

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iGA70,JZA70,MA70..4FC198808-199305

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03108iGA70,JZA70,MA70..4FC198808-199305

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-22060iJZA70..4FC199008-199203

main35106-24020iJZA70..4FC199203-199305

main35106-30050iGA70..4FC..G198808-198911

main35106-30051iGA70..4FC..G198911-199008

main35106-30100iGA70,MA70..4FC..(GT,GTL,GTT)198808-198908

main35106-30101iGA70,MA70..4FC..(GT,GTL,GTT)198908-199305

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iGA70,JZA70,MA70..4FC198808-199305

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iGA70,JZA70,MA70..4FC198808-199305

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-22080iJZA70..4FC199008-199012

main35111-22081iJZA70..4FC199012-199305

main35111-24010iGA70..4FC..G198808-199008

main35111-24021iMA70..4FC198808-199008

main35111-24031iGA70..4FC..(GT,GTT)198808-199305

35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)

main90301-99054iGA70..4FC..G198808-199008

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iGA70,JZA70,MA70..4FC198808-199305

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iGA70..4FC..G198808-199008

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-22010iGA70..4FC..G198808-199012

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iGA70..4FC..G198808-199008

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09011iJZA70..4FC199008-199305

main90301-09173iMA70..4FC;GA70..4FC..(G,GT)198808-199305

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iGA70..4FC..G; MA70..4FC..GTT198808-199008

35395ASTRAINER, GOVERNOR OIL

main35395-40010iGA70..4FC..G198808-199008

9010510190

main90105-10190

9010512144

main90105-12144

9011906117

main90119-06117

9011912168

main90119-12168

9111151016

main91111-51016

9161160816

main91611-60816

9161161028

main91611-61028

9161161035

main91611-61035

9165161040

main91651-61040

9322016012

main93220-16012

9451101000

main94511-01000

30 parts on this diagram · 3 diagrams in section
