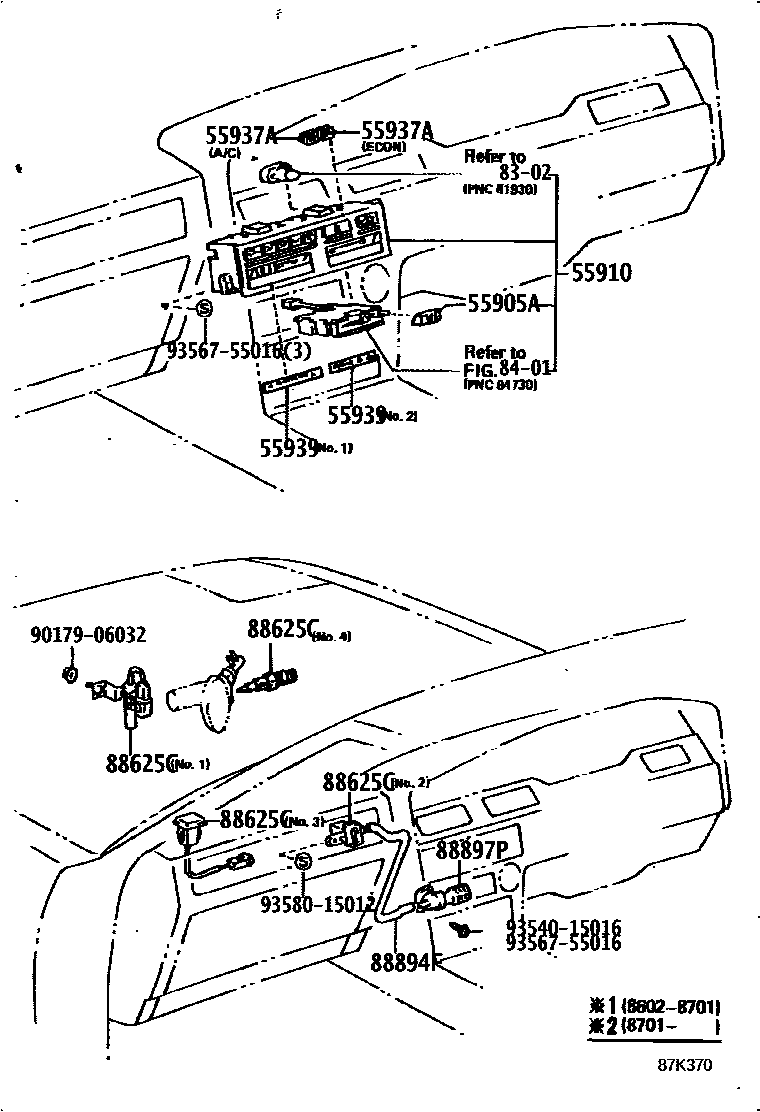

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55905AKNOB, HEATER CONTROL

main55905-14190iGA70,MA70198602

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55900-14350iGA70,MA70198602-198608

main55900-14351iGA70,MA70198608-198701

main55900-14430iGA70,MA70198701-198808

55937AKNOB, COOLER CONTROL LEVER

main55905-14120iGA70,MA70198602-198701

A/C SWITCH

main55905-14140iGA70,MA70198602-198701

ECON SWITCH

main55905-14150iGA70,MA70198701-198808

A/C SWITCH

main55905-14160iGA70,MA70198701-198808

ECON SWITCH

55939ORNAMENT, HEATER CONTROL

main81942-14080iGA70,MA70198602-198701

NO.1,W/*AAC

main81942-14090iGA70,MA70198602-198701

NO.2,W/*AAC

main81942-14100iGA70,MA70198701-198808

NO.1,W/*AAC

main81942-14110iGA70,MA70198701-198808

NO.2,W/*AAC

8302INDICATOR

→ Go to FIG 83-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

88625CTHERMISTOR, COOLER

main88625-14090iGA70,MA70198602-198808

NO.2

main88625-20140iGA70,MA70198602-198808

NO.3

main88790-24070iGA70,MA70198602-198808

NO.1

main88790-24090iMA70198602-198808

NO.4

88894FHOSE, AIR

main88669-14010iGA70,MA70198602-198808

88897PASPIRATOR

main88897-14010iGA70,MA70198602-198808

9017906032

main90179-06032

9354015016

main93540-15016

9356755016

main93567-55016

9358015012

main93580-15012

13 parts on this diagram · 2 diagrams in section
