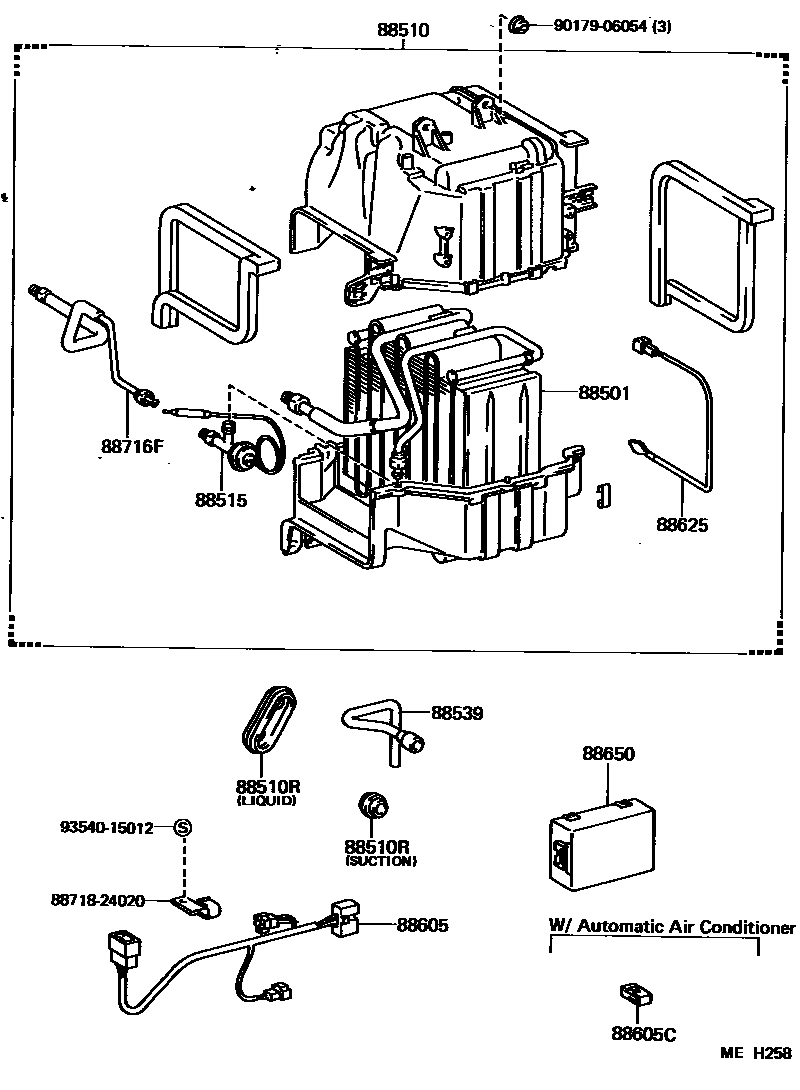

HEATING & AIR CONDITIONING - COOLER UNIT

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-24031iGA70,MA70198602-198808

88510UNIT ASSY, COOLER

main88510-24090iGA70,MA70198602-198808

88510RGROMMET (FOR COOLER UNIT)

main90480-24008iGA70,MA70198602-198808

LIQUID PIPE

main90480-26004iGA70,MA70198602-198808

SUCTION PIPE

88515VALVE, COOLER EXPANSION

main88515-20050iGA70,MA70198602-198808

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-24050iGA70,MA70198602-198808

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-14780iGA70,MA70..G,GTL,GTT,S198602-198808

main88605-14840iGA70..GT198602-198808

88605CHARNESS SUB-ASSY, COOLER WIRING, NO.2

main88605-14850iGA70,MA70198602-198808

W/*AAC

88625THERMISTOR, COOLER, NO.1

main88625-24050iGA70,MA70198602-198808

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-14240iGA70,MA70198602-198808

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-24070iGA70,MA70198602-198808

8871824020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-24020

9017906054

main90179-06054

9354015012

main93540-15012

13 parts on this diagram · 1 diagram in section
