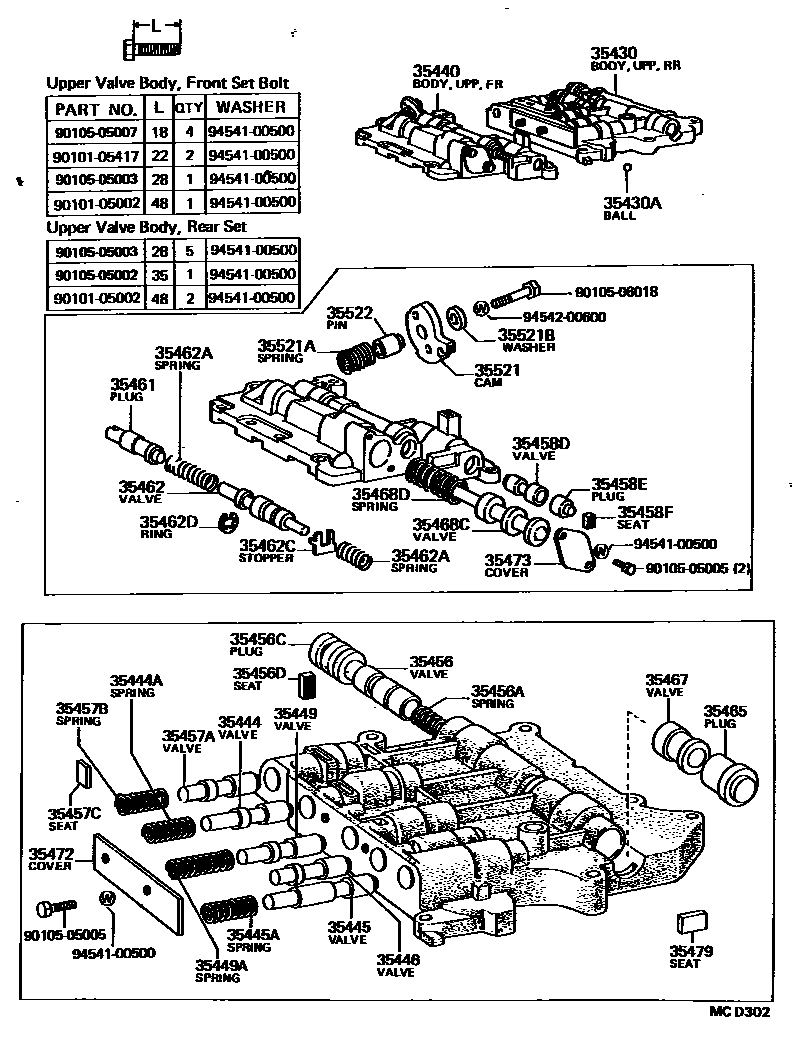

VALVE BODY & OIL STRAINER (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

35430BODY ASSY, REAR UPPER VALVE

main35430-28041iGA70..4FC..(G,S)198602-198808

main35430-30120iGA70..4FC..GT198602-198808

35430ABALL (FOR REAR UPPER VALVE BODY)

main35495-22010iGA70..4FC..(G,S)198602-198804

main35495-22020iGA70..4FC..(G,S)198804-198808

main90360-06023×6iGA70..4FC..(G,GT,S)198602-198808

35440BODY ASSY, FRONT UPPER VALVE

main35440-28031iGA70..4FC..(G,S)198602-198808

main35440-30071iGA70..4FC..GT198602-198808

35444VALVE, INTERMEDIATE MODULATOR

main35444-22010×2iGA70..4FC..(G,GT,S)198602-198808

35444ASPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)

main90501-08725iGA70..4FC..GT198602-198808

LWR

main90501-09686iGA70..4FC..GT198602-198808

INTERMEDIATE

main90501-11009iGA70..4FC..(G,S)198602-198808

35445VALVE, LOW MODULATOR

main35445-22010iGA70..4FC..(G,S)198602-198808

35445ASPRING, COMPRESSION (FOR LOW MODULATOR VALVE)

main90501-08725iGA70..4FC..(G,S)198602-198808

35446VALVE, GOVERNOR MODULATOR

main35446-20010iGA70..4FC..(G,S)198602-198808

35449VALVE, SEQUENCE

main35447-22010iGA70..4FC..(G,S)198602-198808

UPR VALVE BODY

main35449-22010iGA70..4FC..(G,S)198602-198808

LWR VALVE BODY

35449ASPRING, COMPRESSION (FOR SEQUENCE VALVE)

main90501-12055iGA70..4FC..(G,S)198602-198808

UPR VALVE BODY

main90501-12726iGA70..4FC..(G,S)198602-198808

LWR VALVE BODY

35456VALVE, 2-3 SHIFT

main35456-22010iGA70..4FC..(G,S)198602-198808

main35456-30050iGA70..4FC..GT198602-198808

main35456-30060iGA70,MA70..4FC..(GTL,GTT)198602-198808

35456ASPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

main90501-08724iGA70..4FC..(G,S)198602-198808

main90501-09028iGA70..4FC..GT198602-198808

main90501-09053iGA70,MA70..4FC..(GTL,GTT)198602-198808

35456CPLUG (FOR 2-3 SHIFT VALVE)

main35452-22010iGA70..4FC..(G,S)198602-198808

main35452-30010iGA70..4FC..GT198602-198808

main90339-03004iGA70,MA70..4FC..GTT198602-198608

main90339-05014iGA70,MA70..4FC..(GTL,GTT)198608-198808

35456DSEAT (FOR 2-3 SHIFT VALVE)

main35493-22020iGA70..4FC..(G,S)198602-198808

main35493-30030iGA70..4FC..GT198602-198808

35457AVALVE, DETENT REGULATOR

main35457-22010iGA70..4FC..(G,S)198602-198808

35457BSPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)

main90501-09739iGA70..4FC..(G,S)198602-198808

35457CSEAT (FOR DETENT REGULATOR VALVE)

main35438-22020iGA70..4FC..(G,S)198602-198808

35458DVALVE, CUT BACK

main35458-22010iGA70..4FC..(G,S)198602-198808

main35458-30020iGA70..4FC..GT198602-198808

main35458-30030iGA70,MA70..4FC..(GTL,GTT)198602-198808

35458EPLUG (FOR CUT BACK VALVE)

main35459-22010iGA70..4FC..(G,GT,S)198602-198808

main90339-04002iGA70,MA70..4FC..(GTL,GTT)198602-198808

35458FSEAT (FOR CUT BACK VALVE)

main35493-22010iGA70..4FC..(G,GT,S)198602-198808

35461PLUG, DOWN SHIFT

main35408-30010iGA70..4FC..(G,S)198602-198808

main35408-30020iGA70..4FC..GT198602-198808

main35408-30040iGA70,MA70..4FC..(GTL,GTT)198602-198808

35462VALVE, THROTTLE

main35462-22011iGA70..4FC..(G,GT,S)198602-198808

main35462-30020iGA70,MA70..4FC..(GTL,GTT)198602-198808

35462ASPRING, COMPRESSION (FOR THROTTLE VALVE)

main90501-07051iGA70,MA70..4FC..(GTL,GTT)198602-198808

main90501-07067iGA70,MA70..4FC..(GTL,GTT)198708-198808

main90501-07680iGA70..4FC..(G,GT,S)198602-198808

main90501-11011iGA70..4FC..GT198602-198808

PRIMARY

main90501-12077iGA70..4FC..(G,S)198602-198808

35462CSTOPPER, VALVE VIBRATING

main35422-22010iGA70..4FC..(G,GT,S)198602-198808

35462DRING, E (FOR THROTTLE VALVE)

main90523-06023×6iGA70,MA70..4FC198602-198808

35465PLUG, INTERMEDIATE SHIFT VALVE

main35465-22010iGA70..4FC..(G,S)198602-198808

35467VALVE, INTERMEDIATE SHIFT

main35467-22010iGA70..4FC..(G,S)198602-198808

35468CVALVE, SECONDARY REGULATOR

main35204-30010iGA70..4FC..(G,GT,S)198602-198808

main35468-12020iGA70,MA70..4FC..(GTL,GTT)198602-198808

35468DSPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

main90501-15007iGA70,MA70..4FC..(GTL,GTT)198602-198808

main90501-19001iGA70..4FC..(G,GT,S)198602-198808

35472COVER, VALVE BODY, NO.2

main35472-22010iGA70..4FC..(G,S)198602-198808

main35472-30010iGA70..4FC..GT198602-198808

35473COVER, TRANSMISSION VALVE BODY

main35473-22010iGA70..4FC..(G,GT,S)198602-198808

35479SEAT, INTERMEDIATE SHIFT VALVE

main35479-22010iGA70..4FC..(G,S)198602-198808

35521CAM, THROTTLE VALVE

main35521-30010iGA70..4FC..(G,S)198602-198808

main35521-30030iGA70,MA70..4FC..(GT,GTL,GTT)198602-198808

35521ASPRING (FOR THROTTLE VALVE CAM RETURN)

main90508-11007iGA70,MA70..4FC..(GTL,GTT)198602-198808

main90508-12331iGA70..4FC..(G,GT,S)198602-198808

35521BWASHER (FOR THROTTLE VALVE CAM SET)

main90201-06472iGA70,MA70..4FC198602-198808

35522PIN, THROTTLE VALVE CAM

main35522-22010iGA70,MA70..4FC198602-198808

9010105002

main90101-05002

9010105417

main90101-05417

9010505002

main90105-05002

9010505003

main90105-05003

9010505005

main90105-05005

9010505007

main90105-05007

9010506018

main90105-06018

9454100500

main94541-00500

9454200600

main94542-00600

45 parts on this diagram · 10 diagrams in section
