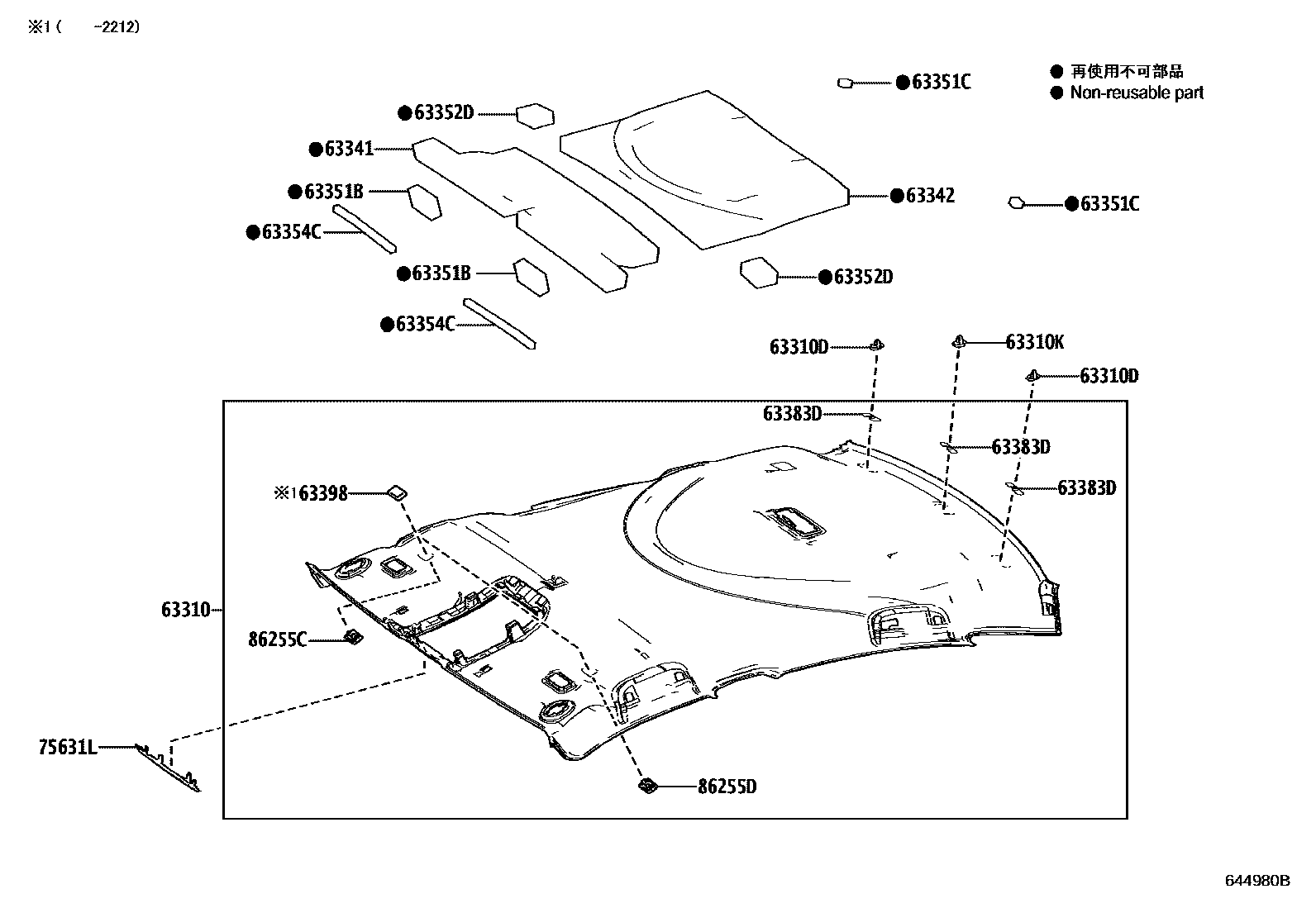

ROOF HEADLINING & SILENCER PAD

0001 1������� 0002 1��������

63310HEADLINING ASSY, ROOF

main63310-62050-B1iJPD20202011-202212

LT.GRAY,TRIM0#,2#

main63310-62051-B1iJPD20202312-202411

LT.GRAY,TRIM0#,2#

main63310-62080-B1iJPD20..Z202011-202103

main63310-62081-B1iJPD20..Z202104-202212

main63310-62082-B1iJPD20..Z202212-202312

63310DCLIP, ROOF HEADLINING

main90467-09126×2iJPD20202412

63310KCLIP

main90467-10181iJPD20202312-202411

63341PAD, ROOF SILENCER, NO.1

main63341-62030iJPD20202312-202411

63342PAD, ROOF SILENCER, NO.2

main63342-62030iJPD20202312-202411

63351BPAD, ROOF HEADLINING

main63351-62040×2iJPD20202011-202312

main63351-62050×3iJPD20..Z202312-202411

63351CPAD, ROOF HEADLINING

main63351-62050×2iJPD20202312-202411

main63351-62070×2iJPD20202011-202102

63352DPAD, ROOF HEADLINING, NO.2

main63351-62030×2iJPD20202412

63354CPAD, ROOF HEADLINING FRONT SIDE

main63354-62020×2iJPD20202312-202411

63383DRETAINER, ROOF HEADLINING, REAR

main63383-24030×3iJPD20202312-202411

63398PLATE, ROOF HEADLINING SUPPORT

main63398-78010×2iJPD20202011-202212

75631LGARNISH, ROOF TOP, FRONT

main75631-62010-B0iJPD20202011-202312

LT.GRAY,TRIM0#,2#

main75631-62030-B0iJPD20202412

LT.GRAY,TRIM0#,2#

main75631-62020-B0iJPD20..Z202011-202312

main75631-62040-B0iJPD20..Z202412

86255CCASE, MICROPHONE, RH

main86255-42010-B1iJPD20202312-202411

LT.GRAY,TRIM0#,2#

main86255-78010-B1iJPD20202011-202212

LT.GRAY,TRIM0#,2#

86255DCASE, MICROPHONE, LH

main86255-42010-B1iJPD20202212-202312

LT.GRAY,TRIM0#,2#

main86255-78010-B1iJPD20202011-202212

LT.GRAY,TRIM0#,2#

14 parts on this diagram · 2 diagrams in section
