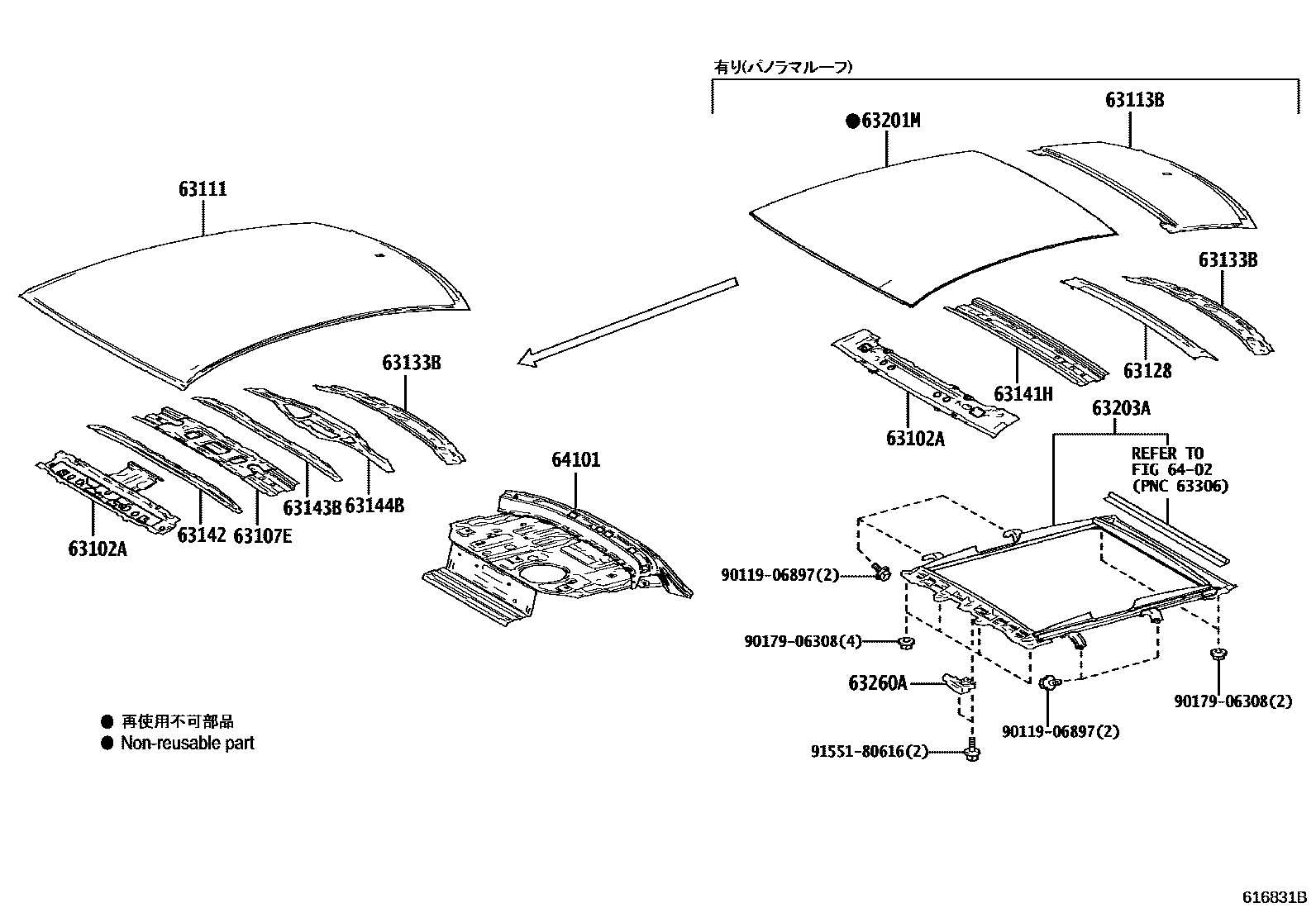

ROOF PANEL & BACK WINDOW GLASS

0001 1������� 0002 1��������������

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-62901iJPD20202412

main63102-62030iJPD20..Z202011-202312

63107EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5

main63107-62010iJPD20202312-202411

63111PANEL, ROOF

main63111-62030iJPD20202312-202411

63113BPANEL, ROOF, REAR

main63113-62010iJPD20..Z202312-202411

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-62010iJPD20..Z202312-202411

63133BFRAME, BACK WINDOW

main63133-62020iJPD20202312-202411

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-62020iJPD20..Z202412

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-62010iJPD20202011-202312

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-62020iJPD20202412

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-62010iJPD20202011-202312

63201MGLASS SUB-ASSY, ROOF WINDOW, NO.1

main63201-62010iJPD20..Z202011-202106

main63201-62011iJPD20..Z202312-202411

63203AHOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF

main63203-62010-B0iJPD20..Z202011-202310

main63203-62011-B0iJPD20..Z202311-202312

63260AGEAR SUB-ASSY, SLIDING ROOF DRIVE

main63260-62010iJPD20..Z202011-202312

main63260-62020iJPD20..Z202412

6402ROOF HEADLINING & SILENCER PAD

→ Go to FIG 64-02

64101PANEL SUB-ASSY, UPPER BACK

main64101-62020iJPD20202312-202411

9011906897

main90119-06897

9017906308

main90179-06308

9155180616

main91551-80616

18 parts on this diagram · 2 diagrams in section
