CLEARANCE & BACK SONAR

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

89305CUSHION SET, ULTRASONIC SENSOR

main89305-47010iAXVH7#..G,WS; AXVH7#..X201808-202101

main89305-52010iAXVH7#202102

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-33270iAXVH75..G,WS; AXVH75..X201912-202101

main89340-33340iAXVH70..G,WS; AXVH70..X201808-202008

main89340-33360iAXVH7#..G,X202102

main89340-33370iAXVH7#..WS202102

main89340-33200iAXVH70..G201706-201808

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-33220-A1×2iAXVH7#..G; AXVH7#..WS; AXVH7#..X201808-202101

main89341-33220-B0×2iAXVH7#..G,WS; AXVH7#..X201808-202101

main89341-33220-C0×2iAXVH7#..G,WS; AXVH7#..X201808-202101

main89341-33220-C6×2iAXVH7#..WS202008-202101

PRECIOUS BLACK,219

main89341-33220-E0×2iAXVH7#..G,WS; AXVH7#..X201808-202101

main89341-33220-E1×2iAXVH7#..G,WS; AXVH7#..X201808-202101

main89341-33220-J3×2iAXVH7#..G; AXVH7#..WS; AXVH7#..X201808-202101

main89341-33220-X1×2iAXVH7#..G; AXVH7#..WS; AXVH7#..X201808-202101

main89341-K0060-A4×2iAXVH7#..G,X; AXVH7#..WS202102

PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2PS

main89341-K0060-B0×2iAXVH7#..G,X202102

SILVER ME.,1F7

main89341-K0060-C5×2iAXVH7#202102

ATTITUDE BLACK MC.,218

main89341-K0060-D4×2iAXVH7#..G,X; AXVH7#..WS202102-202208

EMOTIONAL RED 2,2SC ,3U5; EMOTIONAL RED 2,3U5

main89341-K0060-E2×2iAXVH7#..G,X202102

GRAPHITE ME.,4X7

main89341-K0060-J0×2iAXVH7#..G,X; AXVH7#..WS202102

DK.BLUE M.M.,2RC ,8W7; DK.BLUE M.M.,8W7

main89341-K0060-P8×2iAXVH7#202102

PRECIOUS METAL,1L5

main89341-K0060-X1×2iAXVH7#..G,X; AXVH7#..WS202208

EMOTIONAL RED 3,2XM ,3U9; EMOTIONAL RED 3,3U9

main89341-33220-D0×2iAXVH70..G201706-201808

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-33220-28×2iAXVH7#..WS201808-202101

BLACK MC.

main89341-33220-C4×2iAXVH7#..G; AXVH7#..X201808-202101

main89341-50080-C0×2iAXVH7#202208

DUMMY-MAT BLACK

main89341-K0060-C0×2iAXVH7#202102-202207

DUMMY-MAT BLACK

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-33220-A1×2iAXVH7#..G; AXVH7#..WS; AXVH7#..X201808-202101

main89341-33220-B0×2iAXVH7#..G,WS; AXVH7#..X201808-202101

main89341-33220-C0×2iAXVH7#..G,WS; AXVH7#..X201808-202101

main89341-33220-C6×2iAXVH7#..WS202008-202101

PRECIOUS BLACK,219

main89341-33220-E0×2iAXVH7#..G,WS; AXVH7#..X201808-202101

main89341-33220-E1×2iAXVH7#..G,WS; AXVH7#..X201808-202101

main89341-33220-J3×2iAXVH7#..G; AXVH7#..WS; AXVH7#..X201808-202101

main89341-33220-X1×2iAXVH7#..G; AXVH7#..WS; AXVH7#..X201808-202101

main89341-K0060-A4×2iAXVH7#..G,X; AXVH7#..WS202102

PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2PS

main89341-K0060-B0×2iAXVH7#..G,X202102

SILVER ME.,1F7

main89341-K0060-C5×2iAXVH7#202102

ATTITUDE BLACK MC.,218

main89341-K0060-D4×2iAXVH7#..G,X; AXVH7#..WS202102-202208

EMOTIONAL RED 2,2SC ,3U5; EMOTIONAL RED 2,3U5

main89341-K0060-E2×2iAXVH7#..G,X202102

GRAPHITE ME.,4X7

main89341-K0060-J0×2iAXVH7#..G,X; AXVH7#..WS202102

DK.BLUE M.M.,2RC ,8W7; DK.BLUE M.M.,8W7

main89341-K0060-P8×2iAXVH7#202102

PRECIOUS METAL,1L5

main89341-K0060-X1×2iAXVH7#..G,X; AXVH7#..WS202208

EMOTIONAL RED 3,2XM ,3U9; EMOTIONAL RED 3,3U9

main89341-33220-D0×2iAXVH70..G201706-201808

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-33220-A1×2iAXVH7#..G; AXVH7#..WS; AXVH7#..X201808-202101

main89341-33220-B0×2iAXVH7#..G,WS; AXVH7#..X201808-202101

main89341-33220-C0×2iAXVH7#..G,WS; AXVH7#..X201808-202101

main89341-33220-C6×2iAXVH7#..WS202008-202101

PRECIOUS BLACK,219

main89341-33220-E0×2iAXVH7#..G,WS; AXVH7#..X201808-202101

main89341-33220-E1×2iAXVH7#..G,WS; AXVH7#..X201808-202101

main89341-33220-J3×2iAXVH7#..G; AXVH7#..WS; AXVH7#..X201808-202101

main89341-33220-X1×2iAXVH7#..G; AXVH7#..WS; AXVH7#..X201808-202101

main89341-K0060-A4×2iAXVH7#..G,X; AXVH7#..WS202102

PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2PS

main89341-K0060-B0×2iAXVH7#..G,X202102

SILVER ME.,1F7

main89341-K0060-C5×2iAXVH7#202102

ATTITUDE BLACK MC.,218

main89341-K0060-D4×2iAXVH7#..G,X; AXVH7#..WS202102-202208

EMOTIONAL RED 2,2SC ,3U5; EMOTIONAL RED 2,3U5

main89341-K0060-E2×2iAXVH7#..G,X202102

GRAPHITE ME.,4X7

main89341-K0060-J0×2iAXVH7#..G,X; AXVH7#..WS202102

DK.BLUE M.M.,2RC ,8W7; DK.BLUE M.M.,8W7

main89341-K0060-P8×2iAXVH7#202102

PRECIOUS METAL,1L5

main89341-K0060-X1×2iAXVH7#..G,X; AXVH7#..WS202208

EMOTIONAL RED 3,2XM ,3U9; EMOTIONAL RED 3,3U9

main89341-33220-D0×2iAXVH70..G201706-201808

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010iAXVH7#..G,WS; AXVH7#..X201808-202101

89348JCLIP, ULTRASONIC SENSOR

main89348-58130×4iAXVH7#..G; AXVH7#..WS; AXVH7#..X201808-202101

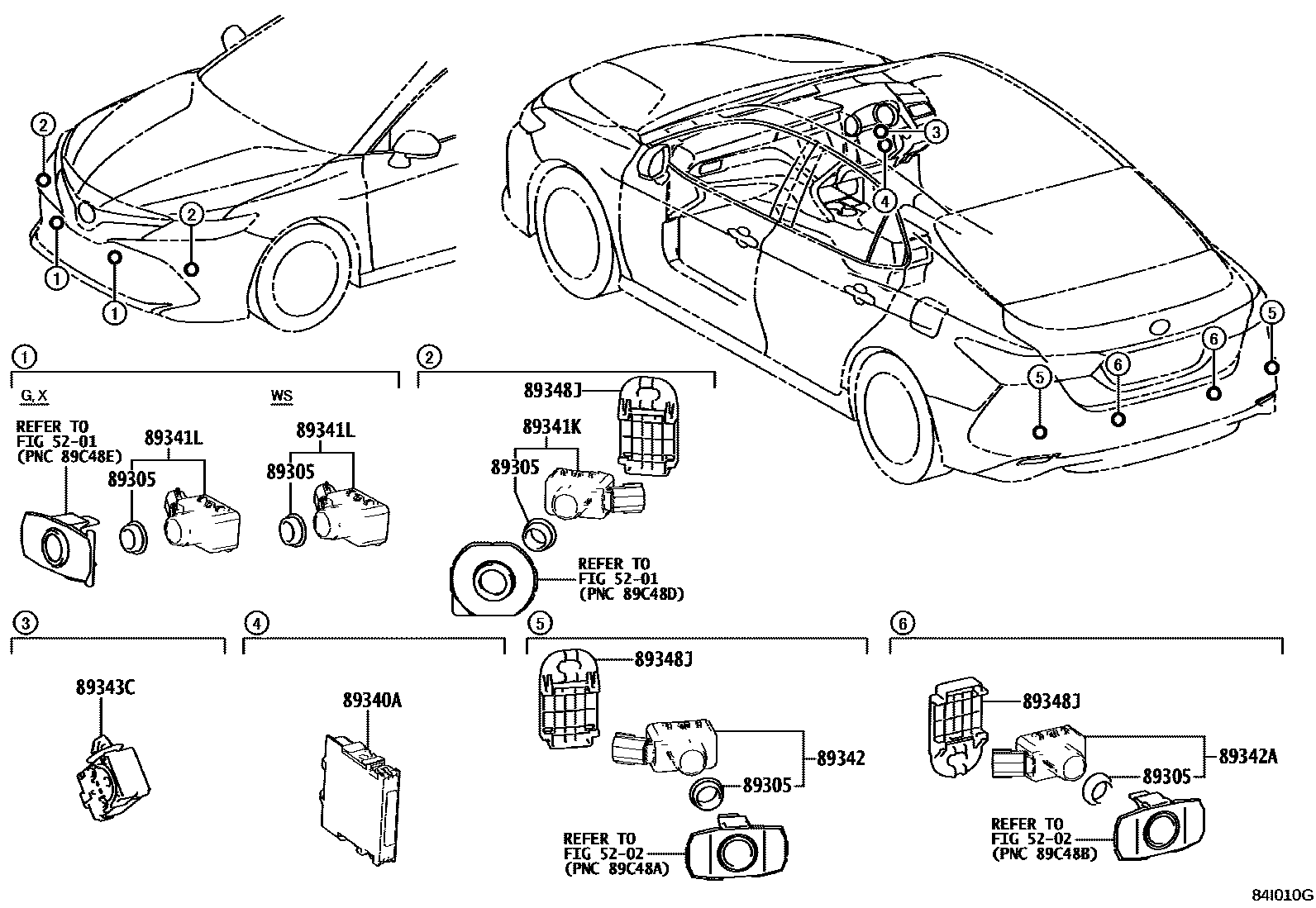

10 parts on this diagram · 2 diagrams in section
