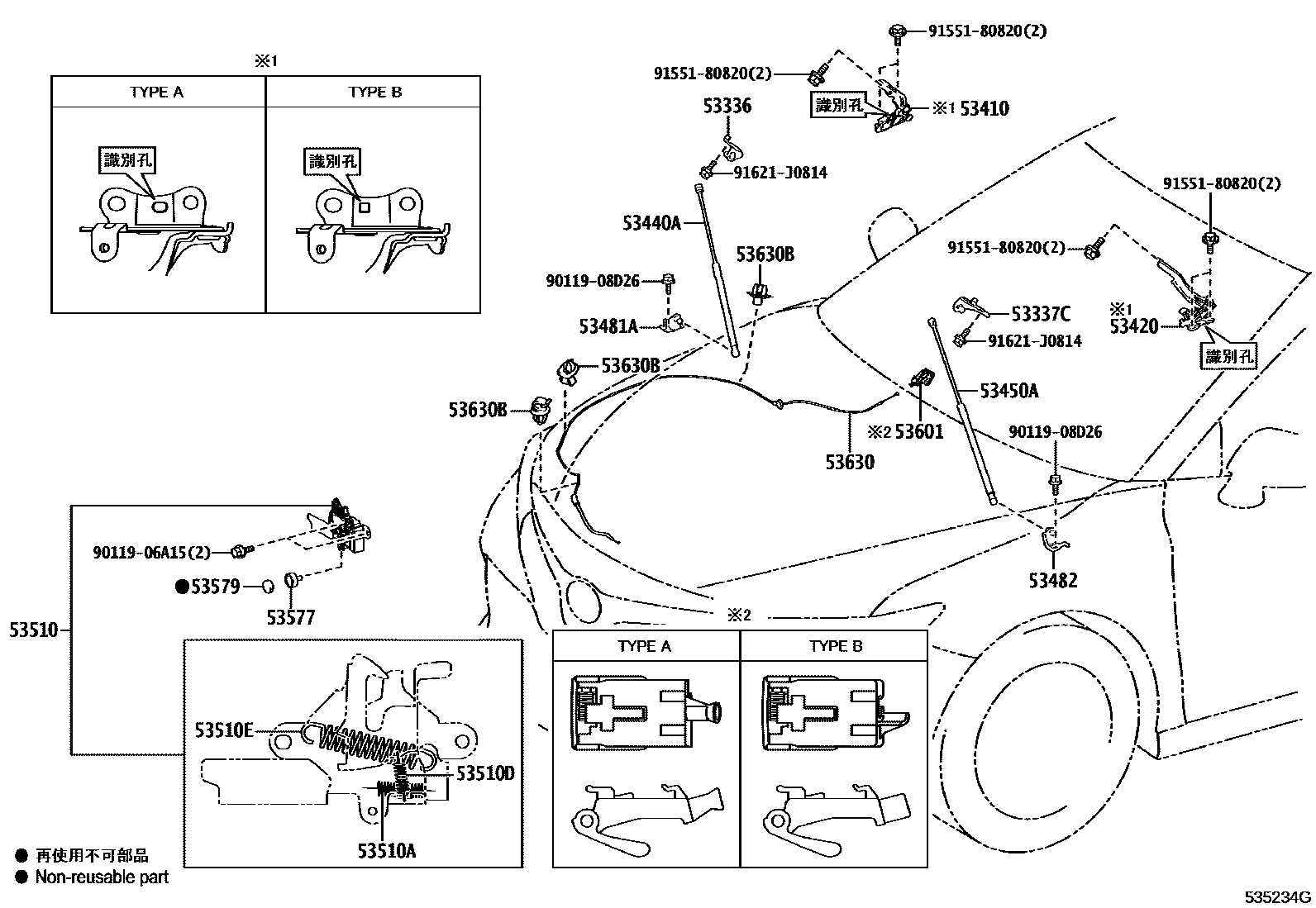

HOOD LOCK & HINGE

53336BRACKET, HOOD STAY, RH

main53336-33070iAXVH7#202102

53337CBRACKET, HOOD STAY, LH

main53337-33050iAXVH7#201706-202101

53410HINGE ASSY, HOOD, RH

main53410-33300iAXVH70201706-201812

main53410-33301iAXVH7#201812-202101

main53410-33340iAXVH70201801-201812

main53410-33341iAXVH7#201812-202101

53420HINGE ASSY, HOOD, LH

main53420-33300iAXVH70201706-201812

main53420-33301iAXVH7#201812-202101

main53420-33340iAXVH70201801-201812

main53420-33341iAXVH7#202102

53440ASUPPORT ASSY, HOOD, RH

main53440-06200iAXVH7#201706-202101

53450ASUPPORT ASSY, HOOD, LH

main53450-06170iAXVH7#201706-202101

53481ABRACKET, HOOD SUPPORT, RH

main53481-33070iAXVH7#201706-202101

53482BRACKET, HOOD SUPPORT, LH

main53482-33060iAXVH7#201706-202101

53510LOCK ASSY, HOOD

main53510-33430iAXVH7#201706-202101

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iAXVH7#201706-202101

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iAXVH7#201706-202101

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067iAXVH7#201706-202101

53577BOLT, HOOD LOCK

main53577-33010iAXVH7#202102

53579CAP, HOOD LOCK NUT

main53579-50010iAXVH7#202102

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-C0iAXVH7#..G,X; AXVH7#..WS201808-202101

main53601-30100-E3iAXVH7#..G201808-202101

main53601-52010-C1iAXVH70201706-201808

main53601-52010-L1iAXVH70..G201706-201808

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-33210iAXVH70201706-201808

main53630-33211iAXVH7#201808-202101

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×3iAXVH7#201706-202101

9011906A15

main90119-06A15

9011908D26

main90119-08D26

9155180820

main91551-80820

91621J0814

main91621-J0814

21 parts on this diagram · 1 diagram in section
