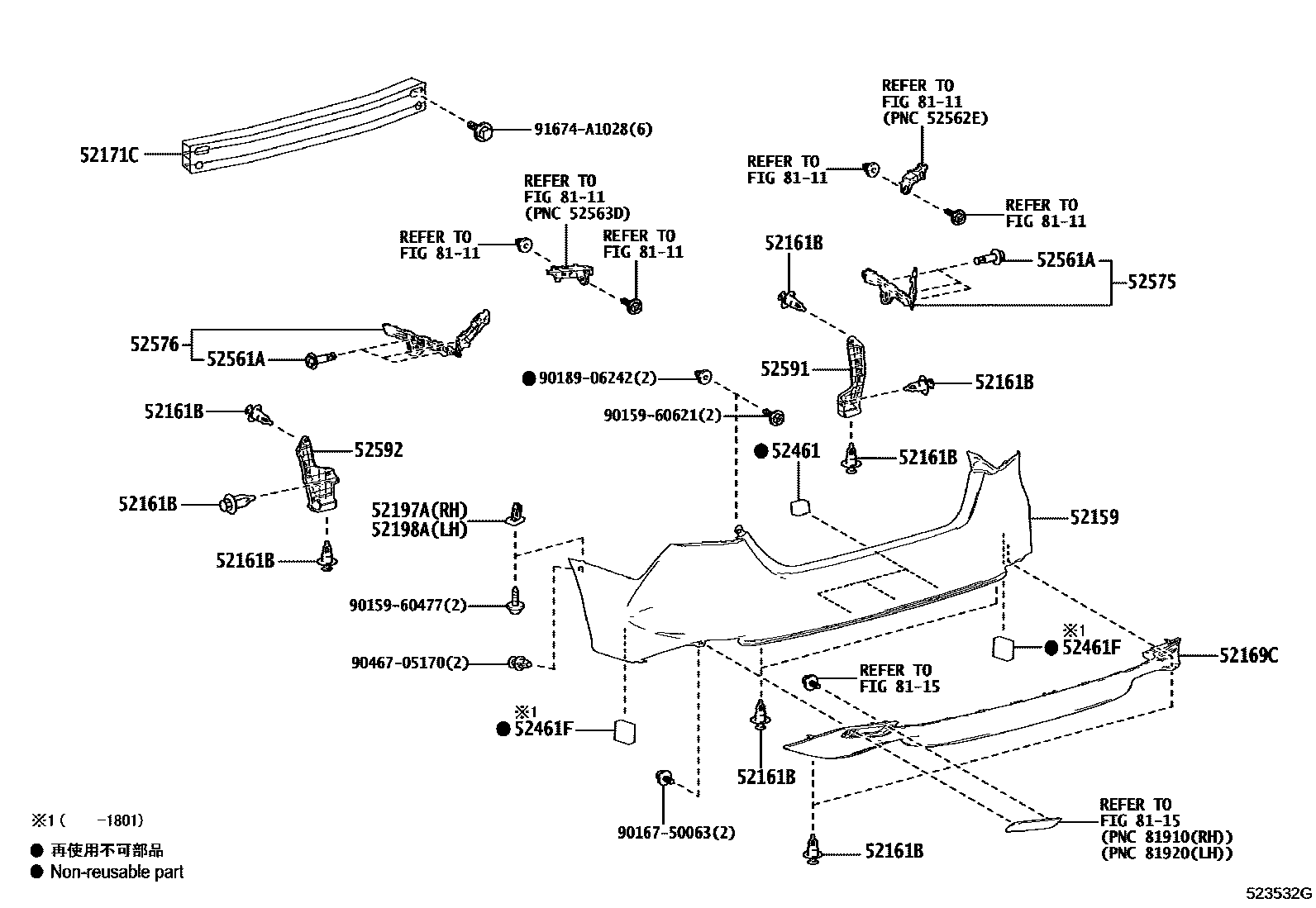

REAR BUMPER & BUMPER STAY

0001 1��(*BSM&*RCTA)OR��(*ICS) 0002 1��(*BSM&*RCTA)OR��(*ICS) 0004 1 0005 1 0006 1

52159COVER, REAR BUMPER

main52159-33390-A1iAXVH7#..X201706-202101

PLATINUM WHITE PEARL MC.,089

main52159-33390-B0iAXVH7#..X201706-202101

SILVER ME.,1F7

main52159-33390-C0iAXVH7#..X201706-202101

ATTITUDE BLACK MC.,218

main52159-33390-D0iAXVH70201706-201808

EMOTIONAL RED,3T7

main52159-33390-E0iAXVH7#..X201706-202101

STEEL BLONDE ME.,4X1

main52159-33390-E1iAXVH7#..X201706-202101

GRAPHITE ME.,4X7

main52159-33390-J1iAXVH7#..X201706-202101

DK.BLUE M.M.,8W7

main52159-33960-A0supersedes 52159-33390-A1iAXVH7#..G; AXVH7#..X201808-202101

main52159-33960-B0supersedes 52159-33390-B0iAXVH7#..G; AXVH7#..X201808-202101

main52159-33960-C0supersedes 52159-33390-C0iAXVH7#..G; AXVH7#..X201808-202101

main52159-33960-D0iAXVH70..G; AXVH70..X201808-202101

main52159-33960-D1supersedes 52159-33390-D1iAXVH7#..G; AXVH7#..X201808-202101

main52159-33960-E0supersedes 52159-33390-E0iAXVH7#..G; AXVH7#..X201808-202101

main52159-33960-E1supersedes 52159-33390-E1iAXVH7#..G; AXVH7#..X201808-202101

main52159-33960-J0supersedes 52159-33390-J1iAXVH7#..G; AXVH7#..X201808-202101

main52159-33983-A2iAXVH7#..WS201808-202101

PLATINUM WHITE PEARL MC.,089 ,2PS

main52159-33983-B3iAXVH7#..WS201808-202101

SILVER ME.,1F7

main52159-33983-C2iAXVH7#..WS201808-202101

ATTITUDE BLACK MC.,218

main52159-33983-C3iAXVH7#..WS202008-202101

PRECIOUS BLACK,219

main52159-33983-D1iAXVH7#..WS201808-202101

EMOTIONAL RED 2,2SC ,3U5

main52159-33983-E1iAXVH7#..WS201808-202101

STEEL BLONDE ME.,4X1

main52159-33983-E2iAXVH7#..WS201808-202101

GRAPHITE ME.,4X7

main52159-33983-J2iAXVH7#..WS201808-202101

DK.BLUE M.M.,2RC ,8W7

main52159-33988-A2iAXVH7#..G,X202102-202202

PLATINUM WHITE PEARL MC.,089

main52159-33988-B4iAXVH7#..G,X202102-202202

PRECIOUS METAL,1L5

main52159-33988-C2iAXVH7#..G,X202102-202202

ATTITUDE BLACK MC.,218

main52159-33988-D1iAXVH7#..G,X202102-202202

EMOTIONAL RED 2,3U5

main52159-33991-A0iAXVH7#..WS202102-202201

PLATINUM WHITE PEARL MC.,089 ,2PS

main52159-33991-B1iAXVH7#..WS202102-202201

PRECIOUS METAL,1L5

main52159-33991-C0iAXVH7#..WS202102-202201

ATTITUDE BLACK MC.,218

main52159-33991-D0iAXVH7#..WS202102-202201

EMOTIONAL RED 2,2SC ,3U5

main52159-33991-J0iAXVH7#..WS202102-202201

DK.BLUE M.M.,2RC ,8W7

main52159-33995-A0iAXVH7#..G,X202202

PLATINUM WHITE PEARL MC.,089

main52159-33995-B1iAXVH7#..G,X202202

PRECIOUS METAL,1L5

main52159-33995-C0iAXVH7#..G,X202202

ATTITUDE BLACK MC.,218

main52159-33995-D0iAXVH7#..G,X202202-202208

3U5

main52159-33995-D1iAXVH7#..G,X202208

EMOTIONAL RED,3U9

main52159-33996-A0iAXVH7#..WS202202

PLATINUM WHITE PEARL MC.,089 ,2PS

main52159-33996-B1iAXVH7#..WS202202

PRECIOUS METAL,1L5

main52159-33996-C0iAXVH7#..WS202202

ATTITUDE BLACK MC.,218

main52159-33996-D0iAXVH7#..WS202202-202208

2SC ,3U5

main52159-33996-D1iAXVH7#..WS202208

EMOTIONAL RED,2XM ,3U9

main52159-33996-J0iAXVH7#..WS202202

DK.BLUE M.M.,8W7

52161BPIECE, REAR BUMPER

main52161-16010×8iAXVH7#..G,X; AXVH7#..WS202102

52169CCOVER, REAR BUMPER, LOWER

main52169-33030iAXVH7#..G,X202102

52171CREINFORCEMENT, REAR BUMPER

main52023-33060iAXVH7#201706-202101

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-53040iAXVH7#201706-202101

52198ABRACKET, REAR BUMPER SEAL, LH

main52198-53020iAXVH7#201706-202101

52461PAD, REAR BUMPER, CENTER

main52462-30090×3iAXVH7#..G,X201706-202101

main52462-33060×3iAXVH7#..WS201808-202101

52461FPAD, REAR BUMPER

main52462-33050×2iAXVH70201706-201801

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-09237×6iAXVH7#201706-202101

52575RETAINER, REAR BUMPER SIDE, RH

main52575-33130iAXVH7#201706-202101

52576RETAINER, REAR BUMPER SIDE, LH

main52576-33130iAXVH7#201706-202101

52591SEAL, REAR BUMPER SIDE, RH

main52591-33040iAXVH7#202102

52592SEAL, REAR BUMPER SIDE, LH

main52592-33040iAXVH7#201706-202101

8111REAR COMBINATION LAMP

→ Go to FIG 81-11

8115REFLEX REFLECTOR

→ Go to FIG 81-15

9015960477

main90159-60477

9015960621

main90159-60621

9016750063

main90167-50063

9018906242

main90189-06242

9046705170

main90467-05170

91674A1028

main91674-A1028

21 parts on this diagram · 5 diagrams in section
