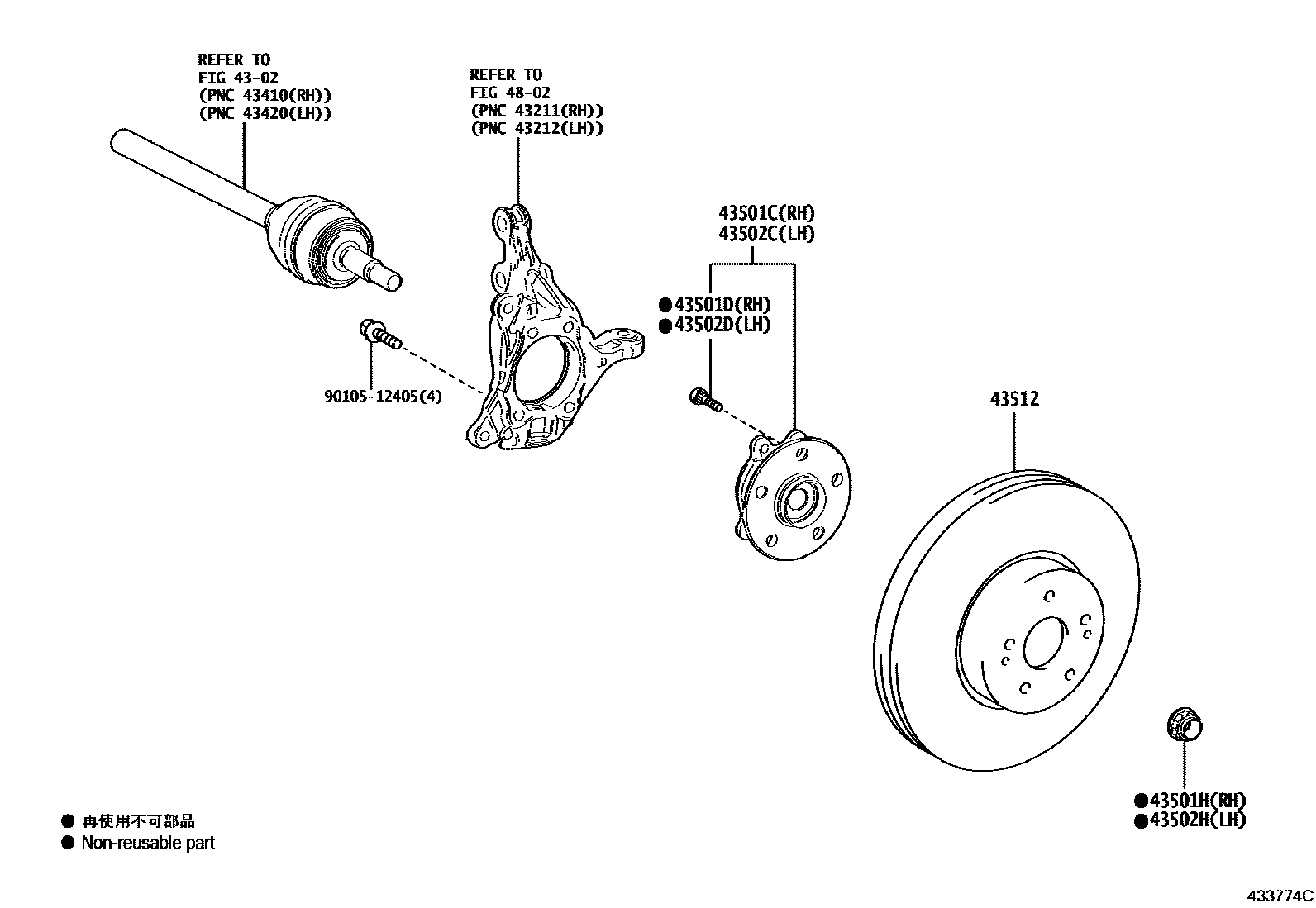

FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-33010iAXVH7#202102-202207

main43550-33020iAXVH7#201706-202101

main43550-33070iAXVH7#202208-202308

main43550-33090iAXVH7#202309

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iAXVH7#201706-202101

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iAXVH7#201706-202101

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-33010iAXVH7#202102-202207

main43550-33020iAXVH7#201706-202101

main43550-33070iAXVH7#202208-202308

main43550-33090iAXVH7#202309

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iAXVH7#201706-202101

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iAXVH7#201706-202101

43512DISC, FRONT

main43512-33150×2iAXVH7#201706-202101

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010512405

main90105-12405

10 parts on this diagram · 1 diagram in section
