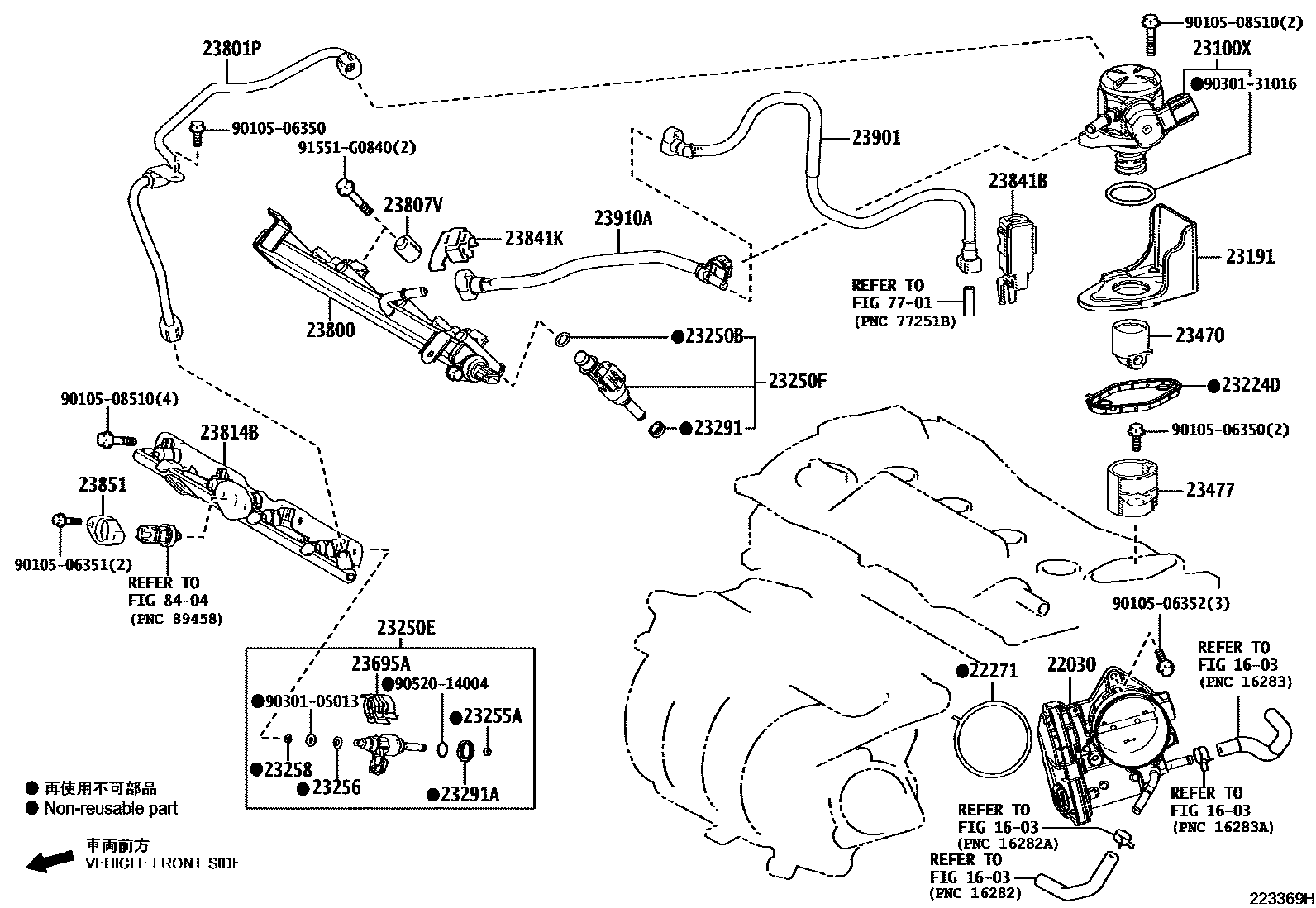

FUEL INJECTION SYSTEM

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-25020iA25AFXS..AXVH7#201706-202101

22271GASKET, THROTTLE BODY

main22271-25020iA25AFXS..AXVH7#201706-202101

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23101-25040iA25AFXS..AXVH7#201706-202101

23191FLANGE, FUEL PUMP

main23191-25050iA25AFXS..AXVH7#201706-202101

23224DGASKET, FUEL PUMP SPACER

main23224-25010iA25AFXS..AXVH7#201706-202101

main23224-25011iA25AFXS..AXVH7#202108

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4iA25AFXS..AXVH7#201706-202006

main90301-A0036×4iA25AFXS..AXVH7#202006-202101

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-25010-01×4iA25AFXS..AXVH7#202102

main23209-25010-02×4iA25AFXS..AXVH7#201706-202101

main23209-25010-03×4iA25AFXS..AXVH7#201706-202101

main23209-25010-04×4iA25AFXS..AXVH7#201706-202101

main23209-25010-05×4iA25AFXS..AXVH7#201706-202101

main23209-25010-06×4iA25AFXS..AXVH7#202102

main23209-25010-07×4iA25AFXS..AXVH7#201706-202101

main23209-25010-08×4iA25AFXS..AXVH7#201706-202101

main23209-25010-09×4iA25AFXS..AXVH7#201706-202101

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-29105×4iA25AFXS..AXVH70201706-201907

main23209-29175×4iA25AFXS..AXVH7#201907-202101

23255ASEAL, FUEL INJECTOR

main23255-25010×4iA25AFXS..AXVH7#201706-202101

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010×4iA25AFXS..AXVH7#202102

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-31010×4iA25AFXS..AXVH7#201706-202101

23291INSULATOR, INJECTOR VIBRATION

main23291-28020×4iA25AFXS..AXVH7#201706-202101

23291AINSULATOR, INJECTOR VIBRATION

main23291-31020×4iA25AFXS..AXVH7#201706-202101

23470LIFTER ASSY, FUEL PUMP

main23470-25010iA25AFXS..AXVH7#201706-202101

23477GUIDE, FUEL PUMP LIFTER

main23477-25010iA25AFXS..AXVH7#201706-202101

23695ACLAMP, NOZZLE HOLDER

main23695-25010×4iA25AFXS..AXVH7#201706-202101

23800PIPE ASSY, FUEL DELIVERY W/SENSOR

main23800-25010iA25AFXS..AXVH70201706-201803

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-25030iA25AFXS..AXVH7#201706-202006

main23801-25031iA25AFXS..AXVH7#202006-202101

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-25021iA25AFXS..AXVH7#201803-202002

main23814-25022iA25AFXS..AXVH7#202003-202101

main23814-25023iA25AFXS..AXVH7#202108

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-25010×2iA25AFXS..AXVH7#201706-202101

23814BPIPE, FUEL DELIVERY

main23814-25010iA25AFXS..AXVH7#201706-202101

main23814-25011iA25AFXS..AXVH7#202211

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-31070iA25AFXS..AXVH7#201706-202101

23841KCLAMP, FUEL PIPE

main23841-25040iA25AFXS..AXVH7#201706-202101

23851HOLDER, FUEL PRESSURE SENSOR, NO.1

main23851-25020iA25AFXS..AXVH7#201706-202101

23901TUBE SUB-ASSY, FUEL

main23901-25030iA25AFXS..AXVH70201706-201901

main23901-25031iA25AFXS..AXVH7#201902-202101

main23901-25051iA25AFXS..AXVH7#202208

23910ATUBE SUB-ASSY, FUEL

main23901-25060iA25AFXS..AXVH70201706-201902

main23901-25061iA25AFXS..AXVH7#201903-202101

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9010506350

main90105-06350

9010506351

main90105-06351

9010506352

main90105-06352

9010508510

main90105-08510

9030105013

main90301-05013

9030131016

main90301-31016

9052014004

main90520-14004

91551G0840

main91551-G0840

37 parts on this diagram · 2 diagrams in section
