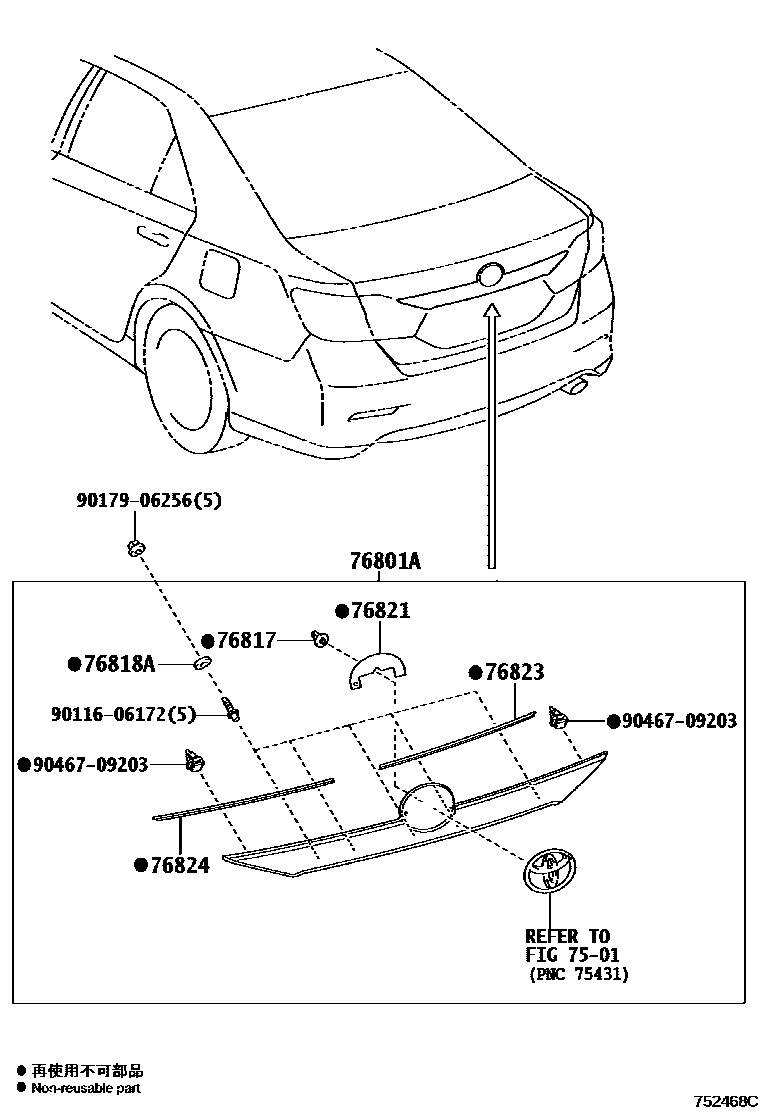

REAR MOULDING

0001 1 0002 1

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-33410supersedes 76801-33430iAVV50201108-201409

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-12060iAVV50201108-201409

76818APAD, LUGGAGE GARNISH, NO.1

main76818-33010×5iAVV50201108-201409

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-33010iAVV50201108-201409

main76821-33040iAVV50201409-201704

76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH

main76824-33010iAVV50201108-201409

main76824-33030iAVV50201409-201704

76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH

main76825-33080iAVV50201108-201409

main76825-33100iAVV50201409-201704

9011606172

main90116-06172

9017906256

main90179-06256

9046709203

main90467-09203

10 parts on this diagram · 2 diagrams in section
