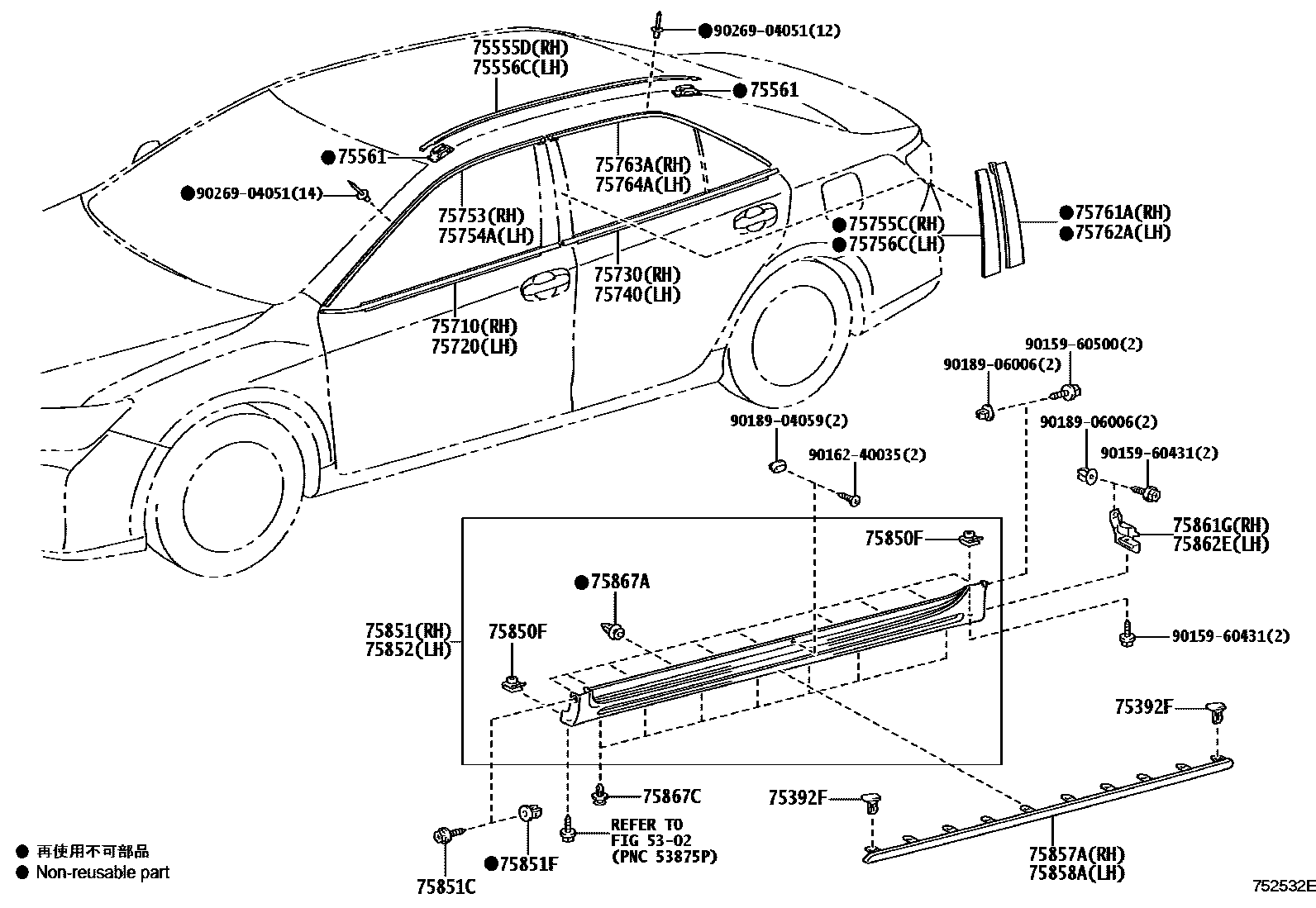

SIDE MOULDING

0001 1 0002 1

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

75392FRETAINER, OUTSIDE MOULDING

main75392-35220×4iAVV50201108-201409

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-33050iAVV50201108-201409

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-33050iAVV50201108-201409

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-33030×4iAVV50201108-201409

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-33140iAVV50201108-201306

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-33140iAVV50201108-201306

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-33140iAVV50201108-201306

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-33140iAVV50201108-201306

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-33080iAVV50201108-201306

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-33080iAVV50201108-201306

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-33050iAVV50201108-201409

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-33050iAVV50201108-201409

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-33050iAVV50201108-201409

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-33050iAVV50201409-201704

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-33100iAVV50201108-201306

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-33100iAVV50201306-201409

75850FNUT, NO.1

main90183-06019×4iAVV50201108-201409

75851MOULDING, ROCKER PANEL, RH

main75850-33900-A0iAVV50201108-201409

WHITE PEARL CS.,070

main75850-33900-B0iAVV50201108-201409

SILVER ME.,1F7

main75850-33900-B1iAVV50201108-201409

GRAY ME.,1G3

main75850-33900-B2iAVV50201108-201409

DK. STEEL MC.,1H2

main75850-33900-C0iAVV50201108-201409

ATTITUDE BLACK MC.,218

main75850-33900-D0iAVV50201209-201409

RED M.M.,3R3

main75850-33900-G0iAVV50201108-201309

OLIVE M.M.,6T7

main75850-33900-J0iAVV50201108-201409

TRUE BLUE M.M.,8W1

main75850-33900-J1iAVV50201309-201409

DK.BLUE MC.,8S6

main75851-33120-A1iAVV50201409-201512

WHITE PEARL CS.,070

main75851-33120-B0iAVV50201409-201511

SILVER ME.,1F7

main75851-33120-B1iAVV50201409-201511

GRAY M.M.,1H1

main75851-33120-B2iAVV50201409-201511

DK. STEEL MC.,1H2

main75851-33120-C0iAVV50201409-201511

ATTITUDE BLACK MC.,218

main75851-33120-D1iAVV50201409-201511

RED M.M.,3R3

main75851-33120-J0iAVV50201409-201511

TRUE BLUE M.M.,8W1

main75851-33120-J1iAVV50201409-201511

DK.BLUE M.M.,8W7

main75851-33160-A0iAVV50201512-201704

WHITE PEARL CS.,070

main75851-33160-B0iAVV50201511-201704

SILVER ME.,1F7

main75851-33160-B1iAVV50201511-201704

GRAY M.M.,1H1

main75851-33160-B2iAVV50201511-201704

DK. STEEL MC.,1H2

main75851-33160-C0iAVV50201511-201704

ATTITUDE BLACK MC.,218

main75851-33160-D0iAVV50201511-201704

RED M.M.,3R3

main75851-33160-J0iAVV50201511-201704

TRUE BLUE M.M.,8W1

main75851-33160-J1iAVV50201511-201704

DK.BLUE M.M.,8W7

75851CSCREW(FOR BODY ROCKER PANEL MOULDING)

main90159-60500×2iAVV50201108-201409

75851FGROMMET(FOR BODY ROCKER PANEL MOULDING)

main90189-06065×2iAVV50201108-201409

75852MOULDING, ROCKER PANEL, LH

main75852-33120-A1iAVV50201409-201512

WHITE PEARL CS.,070

main75852-33120-B0iAVV50201409-201511

SILVER ME.,1F7

main75852-33120-B1iAVV50201409-201511

GRAY M.M.,1H1

main75852-33120-B2iAVV50201409-201511

DK. STEEL MC.,1H2

main75852-33120-C0iAVV50201409-201511

ATTITUDE BLACK MC.,218

main75852-33120-D1iAVV50201409-201511

RED M.M.,3R3

main75852-33120-J0iAVV50201409-201511

TRUE BLUE M.M.,8W1

main75852-33120-J1iAVV50201409-201511

DK.BLUE M.M.,8W7

main75852-33160-A0iAVV50201512-201704

WHITE PEARL CS.,070

main75852-33160-B0iAVV50201511-201704

SILVER ME.,1F7

main75852-33160-B1iAVV50201511-201704

GRAY M.M.,1H1

main75852-33160-B2iAVV50201511-201704

DK. STEEL MC.,1H2

main75852-33160-C0iAVV50201511-201704

ATTITUDE BLACK MC.,218

main75852-33160-D0iAVV50201511-201704

RED M.M.,3R3

main75852-33160-J0iAVV50201511-201704

TRUE BLUE M.M.,8W1

main75852-33160-J1iAVV50201511-201704

DK.BLUE M.M.,8W7

main75860-33900-A0iAVV50201108-201409

WHITE PEARL CS.,070

main75860-33900-B0iAVV50201108-201409

SILVER ME.,1F7

main75860-33900-B1iAVV50201108-201409

GRAY ME.,1G3

main75860-33900-B2iAVV50201108-201409

DK. STEEL MC.,1H2

main75860-33900-C0iAVV50201108-201409

ATTITUDE BLACK MC.,218

main75860-33900-D0iAVV50201209-201409

RED M.M.,3R3

main75860-33900-G0iAVV50201108-201309

OLIVE M.M.,6T7

main75860-33900-J0iAVV50201108-201409

TRUE BLUE M.M.,8W1

main75860-33900-J1iAVV50201309-201409

DK.BLUE MC.,8S6

75857ACOVER, ROCKER PANEL MOULDING, RH

main75857-33010iAVV50201108-201409

75858ACOVER, ROCKER PANEL MOULDING, LH

main75858-33010iAVV50201108-201409

75861GCOVER, ROCKER PANEL MOULDING END, FRONT RH

main75861-33030iAVV50201108-201409

main75861-33050iAVV50201409-201704

75862ECOVER, ROCKER PANEL MOULDING END, FRONT LH

main75862-33030iAVV50201108-201409

main75862-33050iAVV50201409-201704

75867ACLIP, ROCKER PANEL MOULDING

main75867-33030×20iAVV50201108-201309

main75867-68010×20iAVV50201310-201409

75867CCLIP, ROCKER PANEL MOULDING

main75867-33050×14iAVV50201108-201409

9015960431

main90159-60431

9015960500

main90159-60500

9016240035

main90162-40035

9018904059

main90189-04059

9018906006

main90189-06006

9026904051

main90269-04051

34 parts on this diagram · 2 diagrams in section
