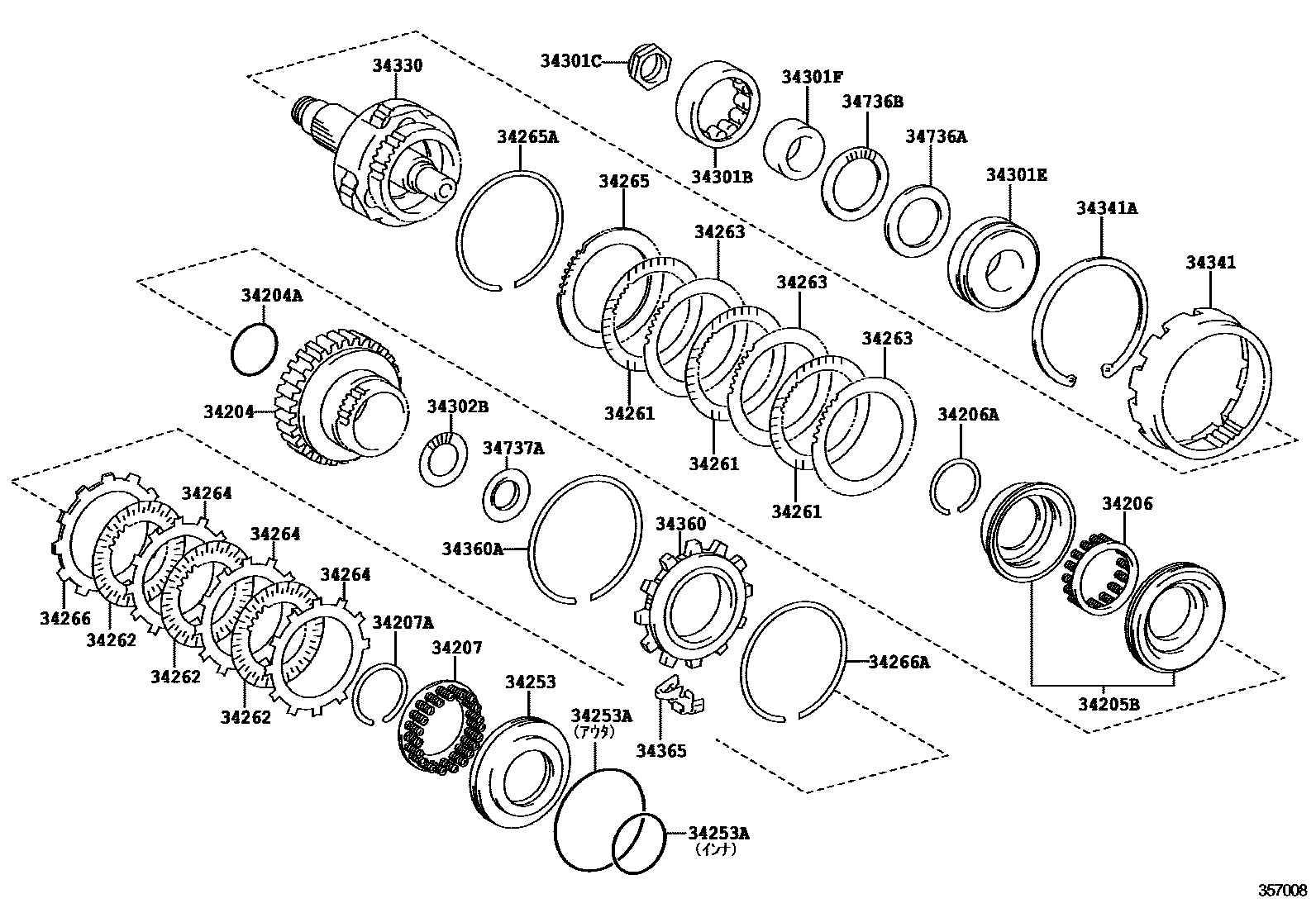

OVERDRIVE GEAR (ATM)
34204DRUM SUB-ASSY, UNDERDRIVE CLUTCH
34204ARING, O (FOR UNDERDRIVE CLUTCH DRUM)
34205BPISTON SET, UNDERDRIVE CLUTCH
34206SPRING SUB-ASSY, UNDERDRIVE CLUTCH RETURN
34206ARING, SHAFT SNAP (FOR UNDERDRIVE RETURN SPRING)
34207SPRING SUB-ASSY, UNDERDRIVE BRAKE RETURN
34207ARING, SNAP (FOR UNDERDRIVE BRAKE RETURN SPRING)
34253ARING, O (FOR UNDERDRIVE BRAKE PISTON)
34261DISC, UNDERDRIVE CLUTCH, NO.1
34262DISC, UNDERDRIVE CLUTCH, NO.2
34263PLATE, UNDERDRIVE CLUTCH, NO.1
34264PLATE, UNDERDRIVE CLUTCH, NO.2
34265FLANGE, UNDERDRIVE CLUTCH, NO.1
34265ARING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.1)
34266FLANGE, UNDERDRIVE CLUTCH, NO.2
34266ARING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.2)
34301BBEARING, CYLINDRICAL ROLLER, NO.1 (FOR UNDERDRIVE)
34301CNUT (FOR UNDERDRIVE INPUT SHAFT)
34301EBEARING, TAPERED ROLLER (FOR UNDERDRIVE)
34301FRACE, CYLINDRICAL ROLLER BEARING, INNER
34302BBEARING, NEEDLE ROLLER(FOR UNDERDRIVE PLANETARY SUN GEAR)
34330GEAR ASSY, UNDERDRIVE PLANETARY
34341GEAR, UNDERDRIVE PLANETARY RING
34341ARING, HOLE SNAP (FOR UNDERDRIVE PLANETARY RING)
34360CLUTCH ASSY, UNDERDRIVE 1 WAY
34360ARING, SHAFT SNAP (FOR UNDERDRIVE 1 WAY CLUTCH)
34736ARACE, THRUST BEARING UNDERDRIVE, NO.2
34736BBEARING, THRUST NEEDLE ROLLER
34737ARACE, THRUST BEARING UNDERDRIVE, NO.3
31 parts on this diagram · 1 diagram in section
